Precision slitting line 1500mm x 3mm for sale - new in 2011, unused line.

SLITTING LINE

Slitting Line NOVASTILMEC Unused [#3324]
   Slitting lines SLL  Slitting Line NOVASTILMEC Unused  [#3324]
SOLD
1

Unused Slitting Line
1500mm x 3mm / 2mm stainless steel
NOVASTILMEC

Year when built: 2011
    200m / min

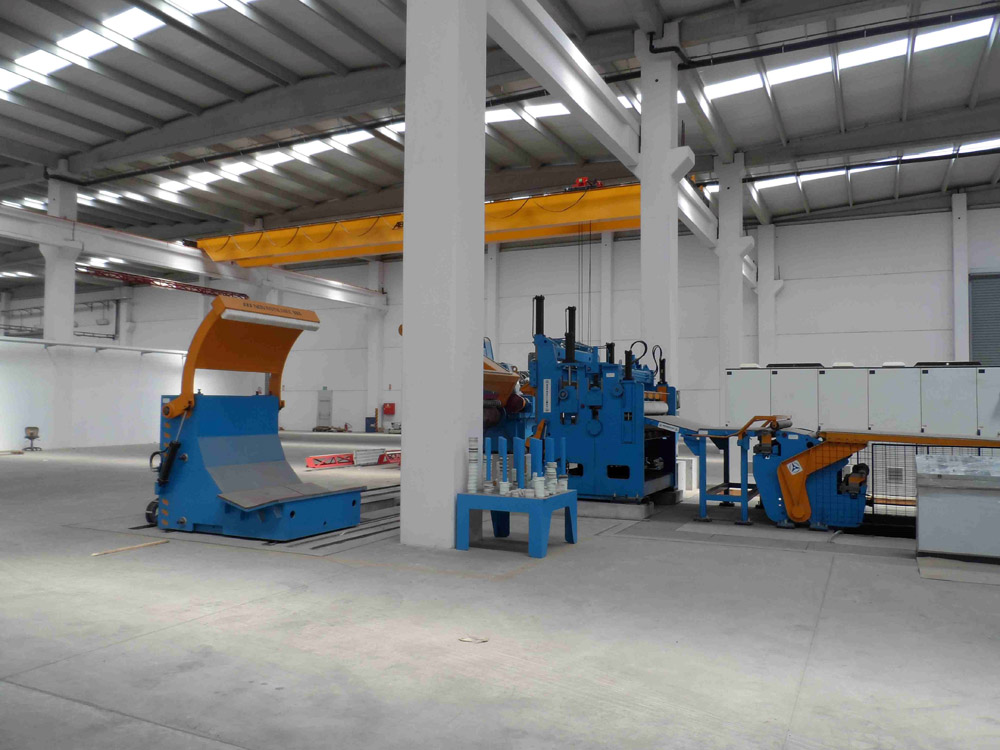

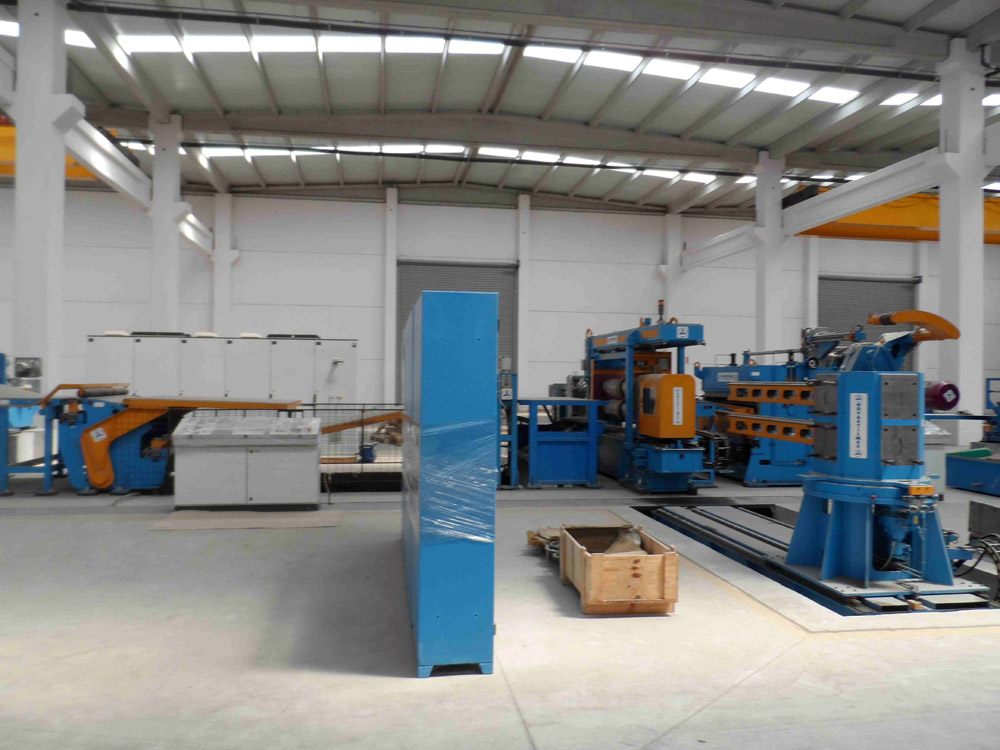

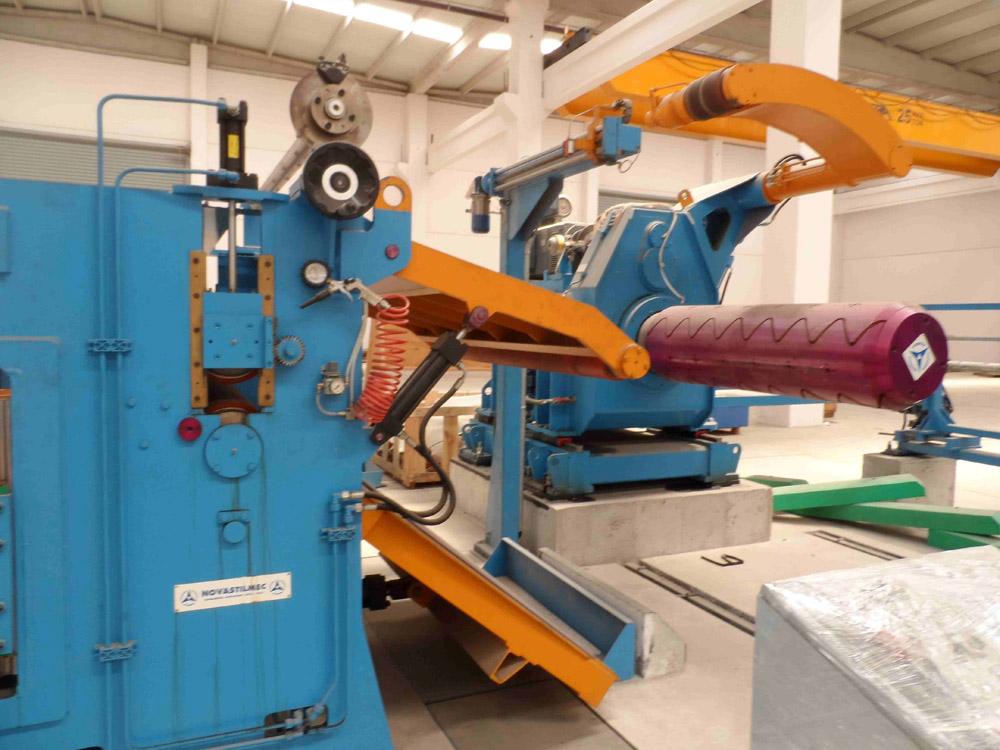

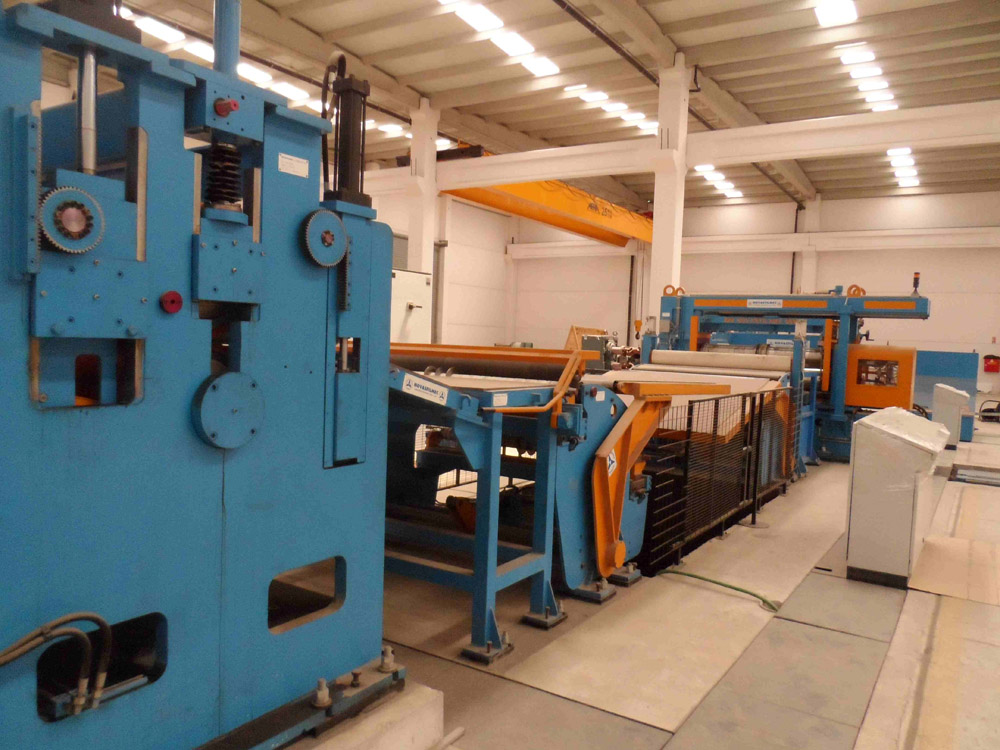

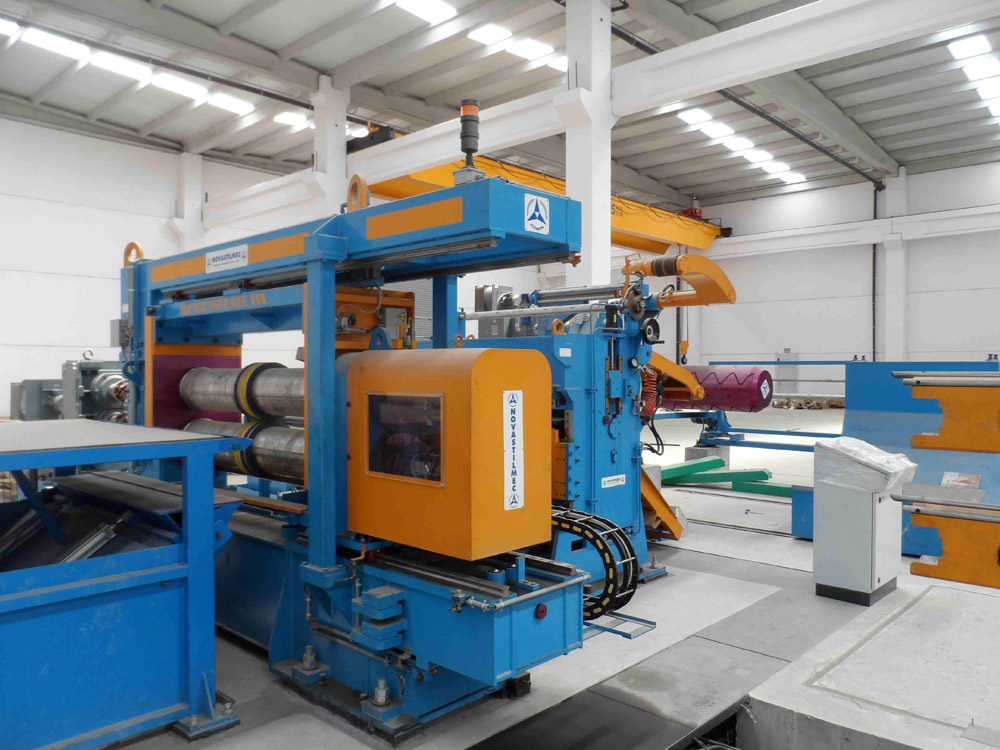

    A coil to coil slitting line line that was NEVER used, new in 2011. It has been designed and manufactured by NOVASTILMEC of Italy: a quality coil processing equipment builder, supplier to major steel Companies/Groups like ArcelorMittal, Outokumpu,
    Saritaş, Severstal, ThyssenKrupp... (More than 450 coil slitting lines, cut to length lines, process lines, levelers etc. that N. has built are installed in over 20 Countries.)

    This precision slitting line can process carbon steel and stainless steel coils with weights up to 20 Tons, and material thicknesses from .5mm to max. 3.0mm (.4mm to max. 2.0mm stainless steel); the maximum line speed is 200m / min.
    The line direction is right to left.



    LINE INFORMATION, GENERAL
    (Please refer Attach.: 1-0.pdf)

    The max. tensile strength of material is: 700 N/mm2

    The entry coil width, min./max. is: 350mm/1500mm
    The exit coil width, min./max. is: 100mm/1500mm

    The material thickness, min./max. with cold rolled steel is: .5mm/3.0mm
    The material thickness, min./max. with stainless steel is: .4mm/2.0mm

    The entry coil ID is: 508mm & 610mm
    The entry coil OD, min./max. is: 900mm/1800mm
    The exit coil ID is: 508mm
    The exit coil OD, min./max. is: 900mm/1800mm

    The coil threading speed is: 15m / min
    The line max. workspeed is: 200m / min

    The diameter of slitter arbors is: 230mm
    The diameter of circular blades is: 350mm

    The maximum number of slits at .4mm material thickness, with 350 N/mm2 is: 30. At 1.0mm thickness, still with 350 N/mm2 it is: 19
    (Please find the complete Slitter Capacity Chart in Attach.: 1.pdf - at the bottom)

    ELECTRICS (Attach.: 3-0.pdf)
    AC total 30 kW
    DC total 200 kW
    ALT. CURRENT 600 A
    VOLTAGE 400 V +/- 10%
    FREQUENCY 50 Hz +/- 2%
    PHASES 3
    EARTH yes
    NEUTRAL COND. no
    No. of El. Cabinets 6

    PNEUMATICS (Attach.: 3-0.pdf)
    AIR SUPPLY 5-6 bar
    AIR REQUIREMENT 200 l / min

    HYDRAULICS (Attach.: 3-0.pdf)
    PRESSURE 120 bar


    EQUIPMENT LIST

    PAPER RECOILER
    HYDR. COIL LOADING CAR - CAP.: 20 t

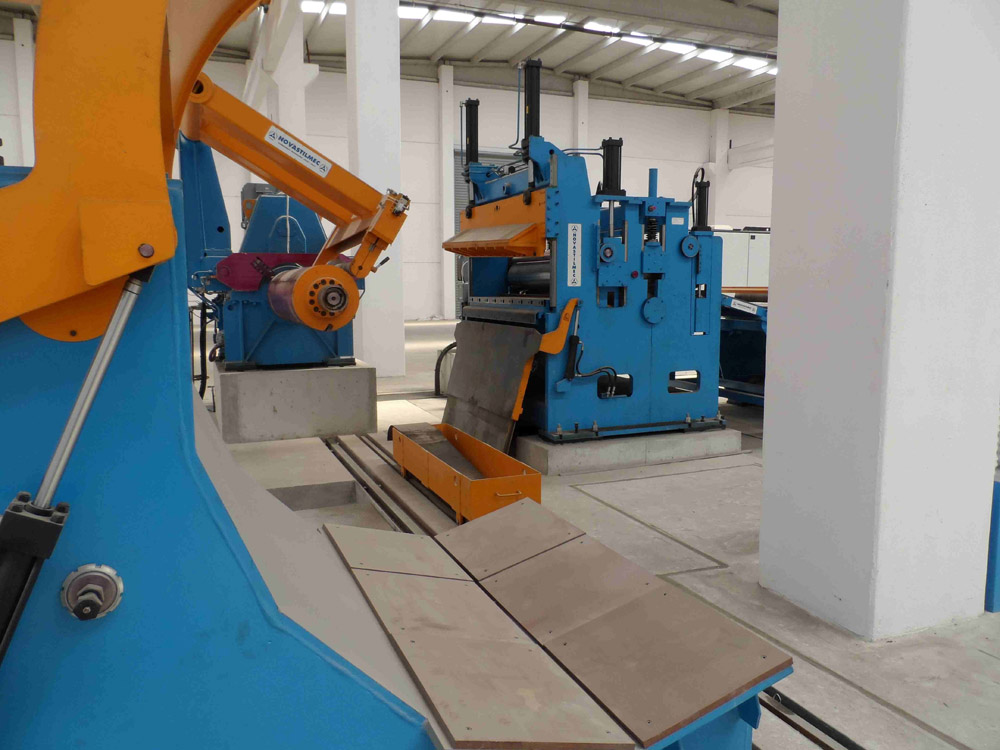

    DECOILER - CAP.: 20 t
    HYDR. PEELER STATION

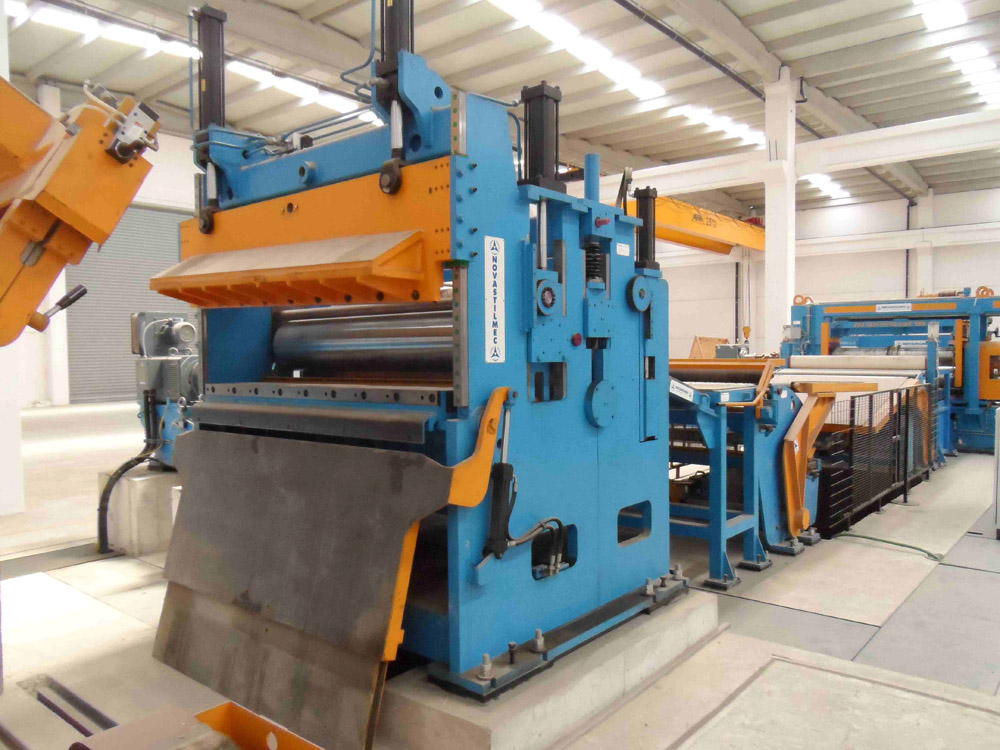

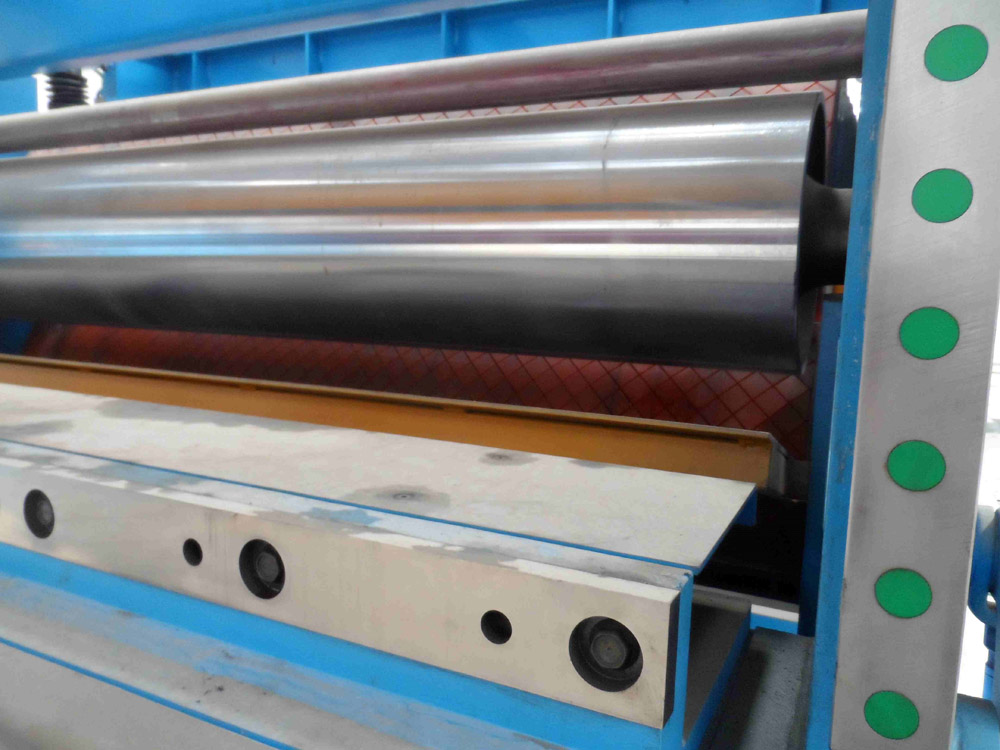

    FEED PINCH ROLLS, CROP SHEAR #1

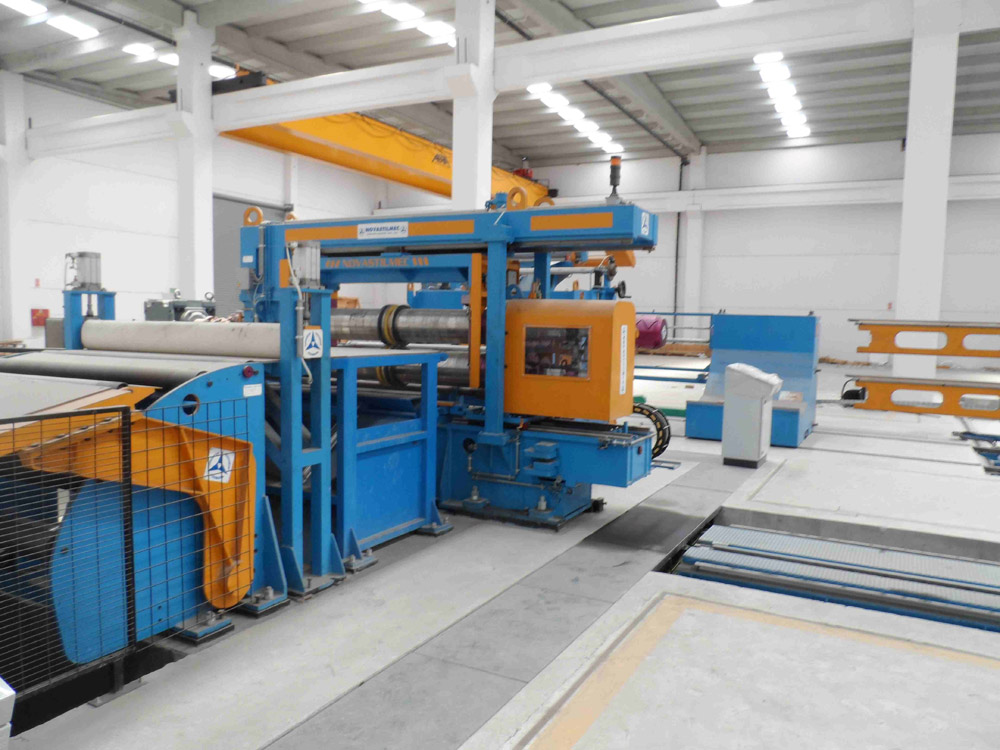

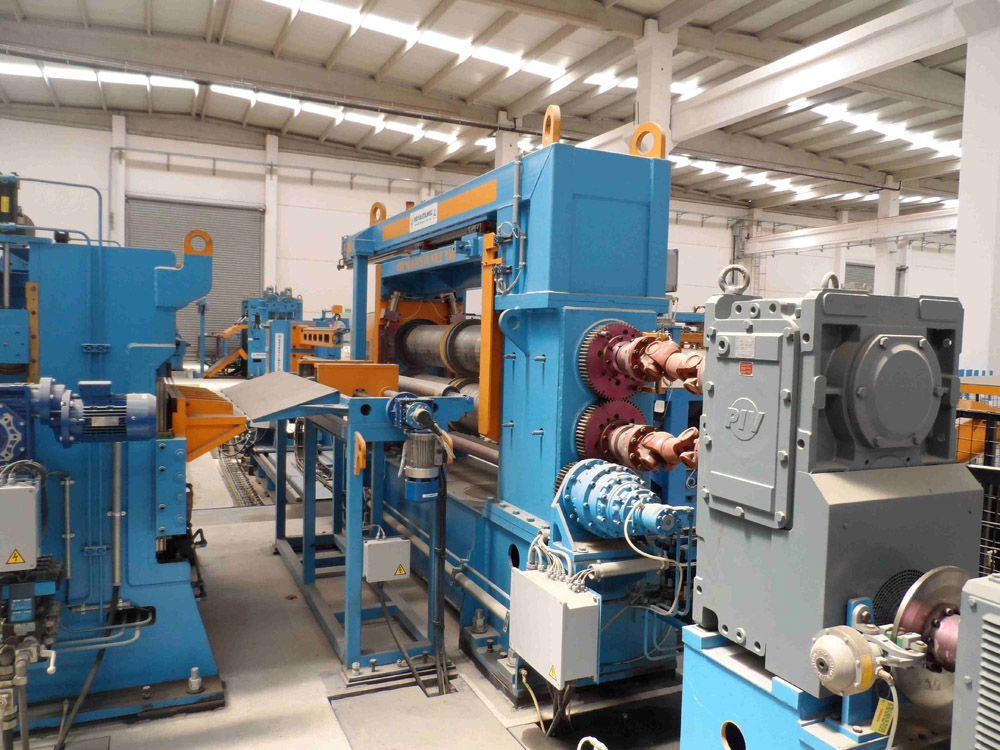

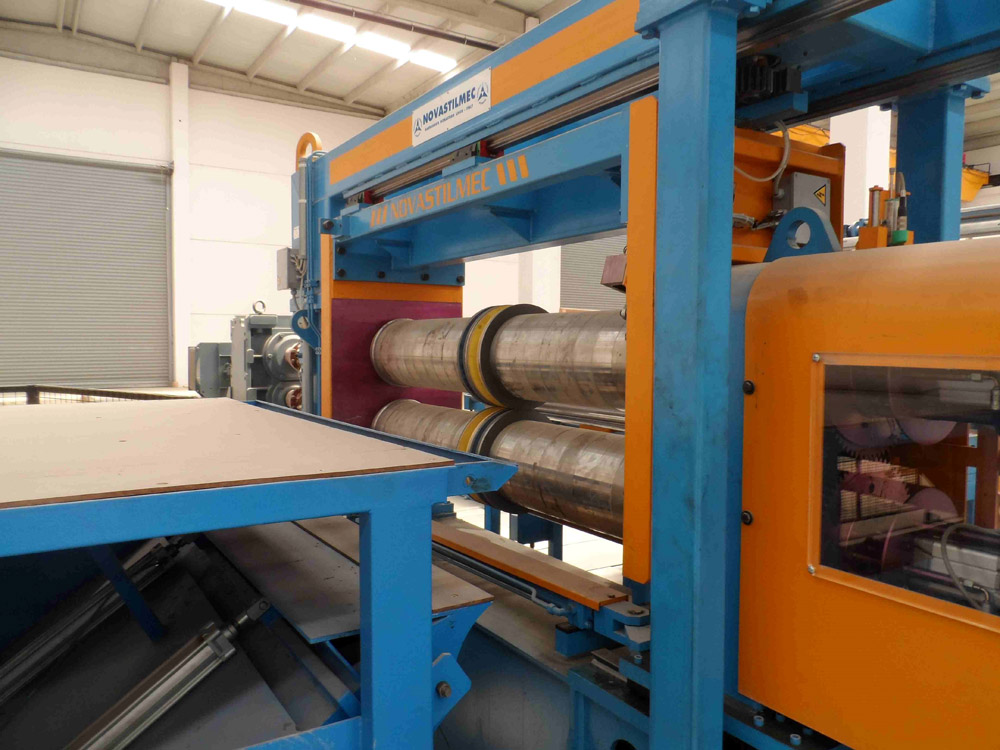

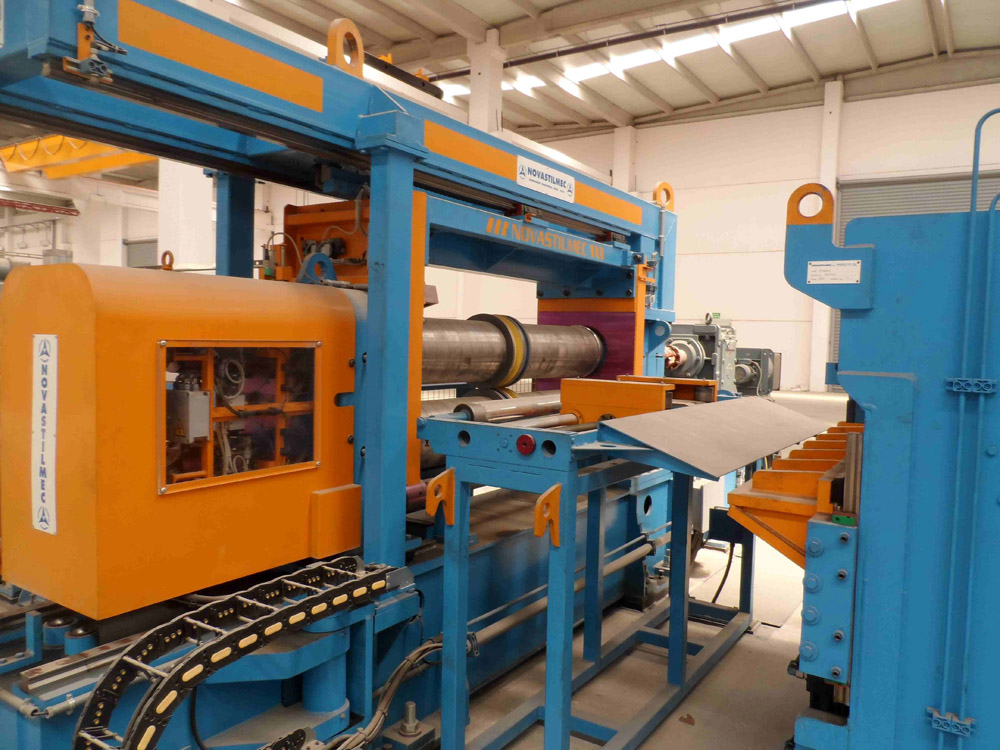

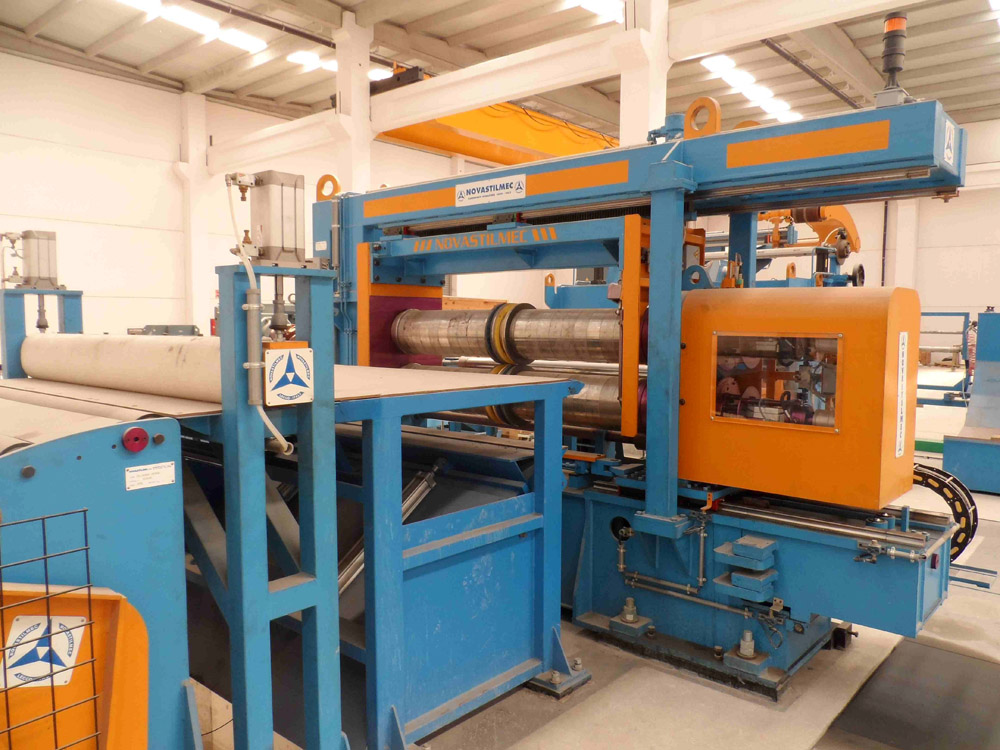

    SLITTER

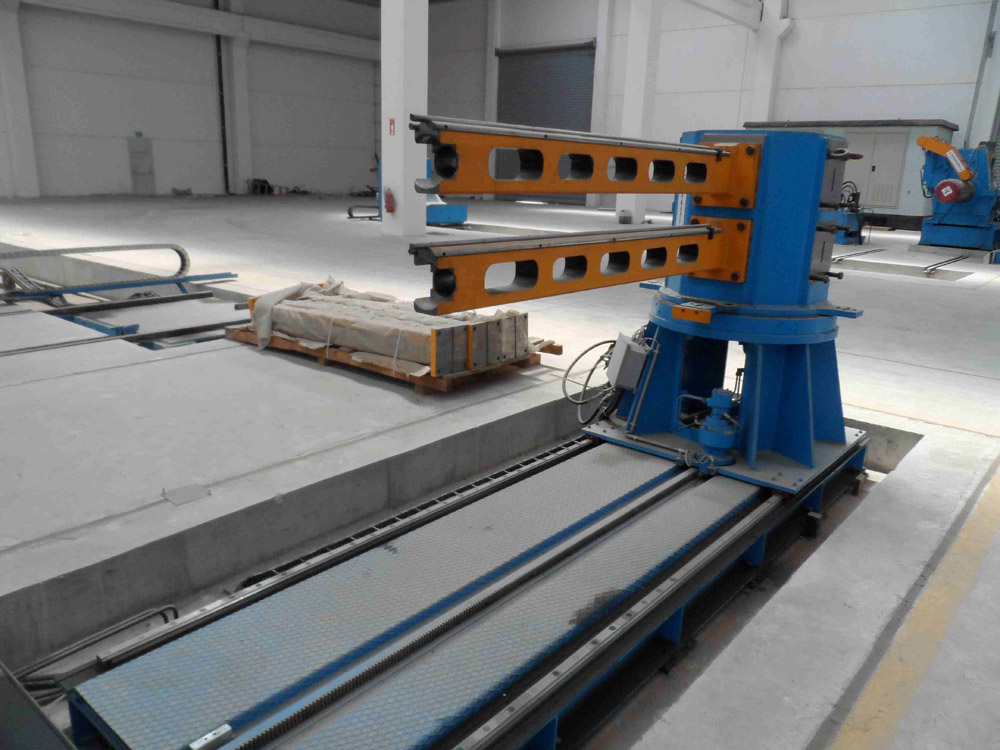

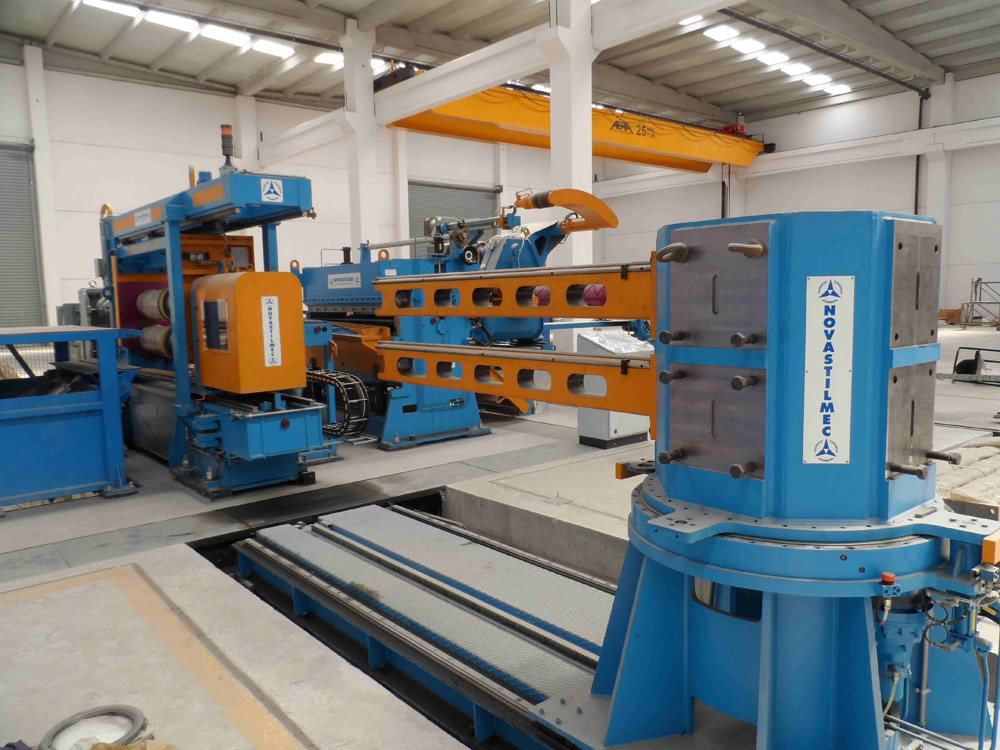

    TURNSTILE-TYPE (1 ARM) SLITTER TOOLING CHANGER

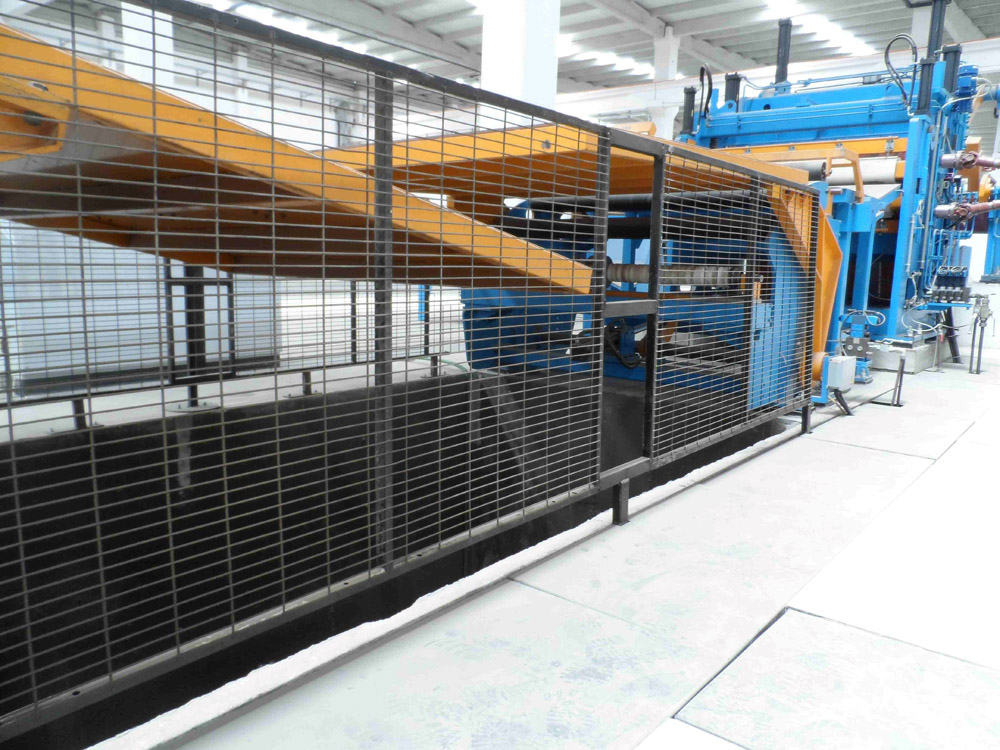

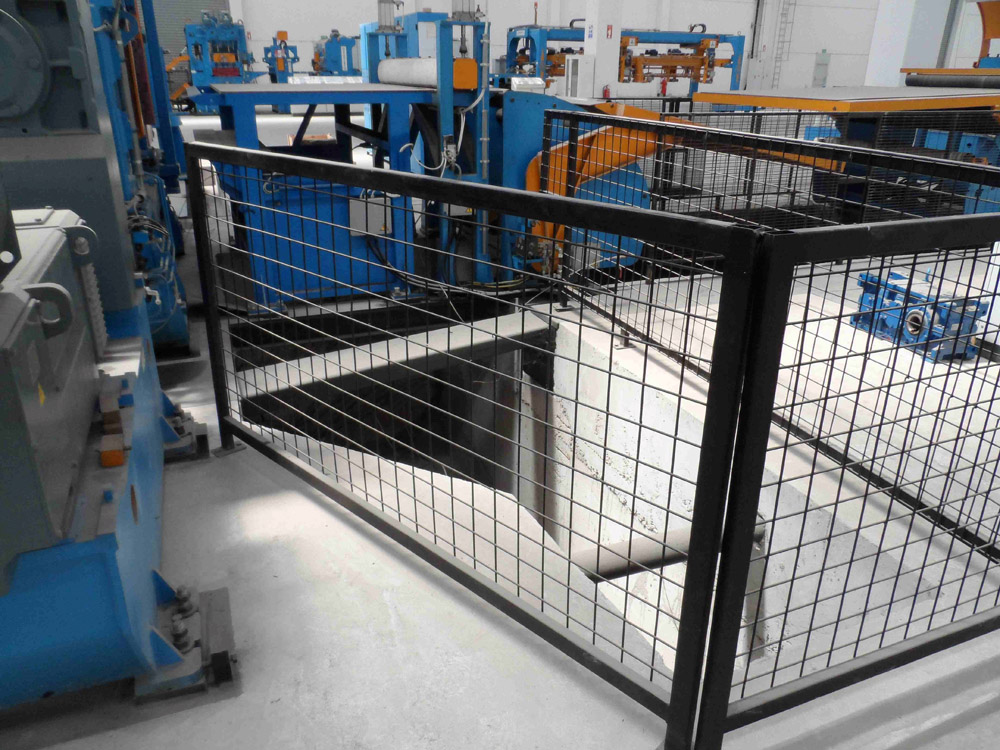

    SADDLE FOR LOOP PIT
    CONNECTION TABLE
    "FELT" PRESS - BRIDLE - CROP SHEAR #2

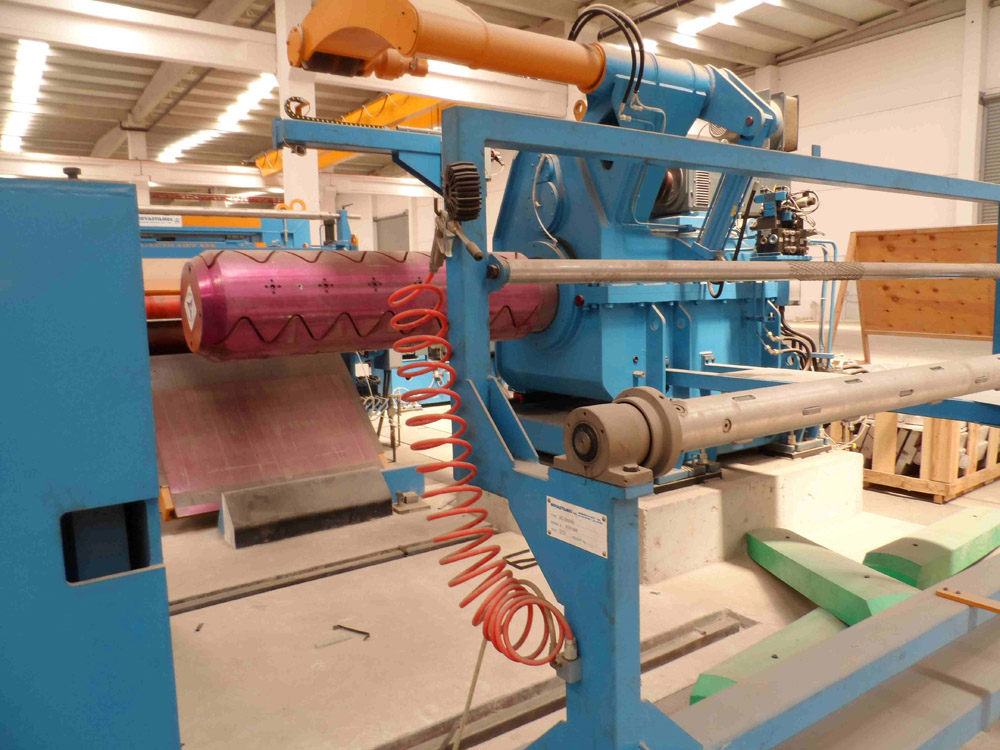

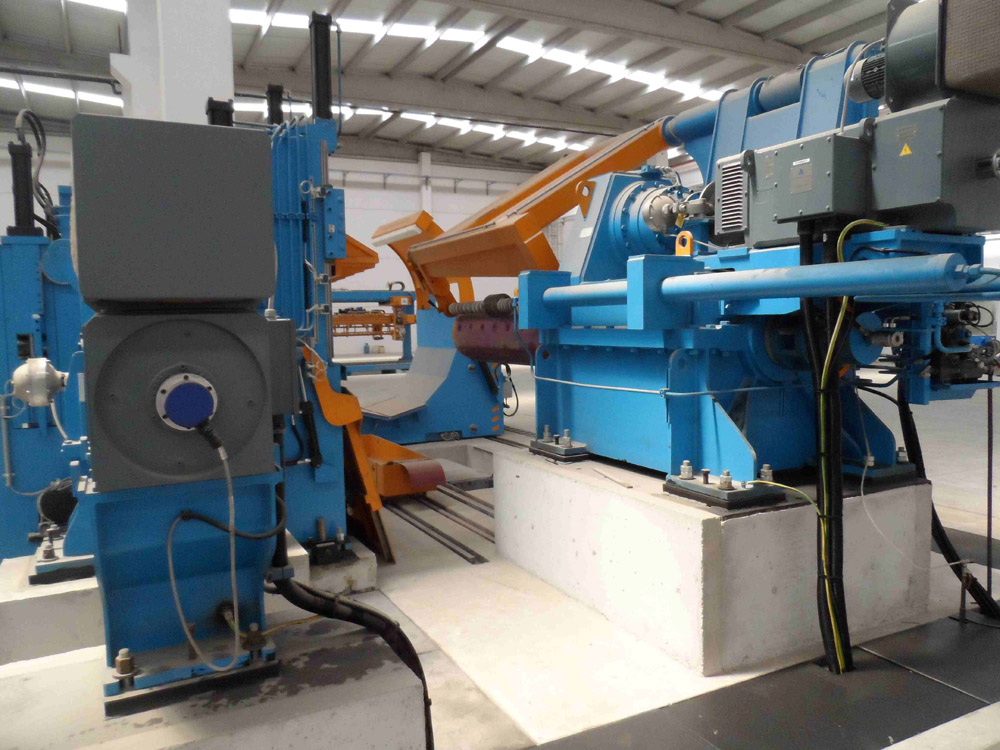

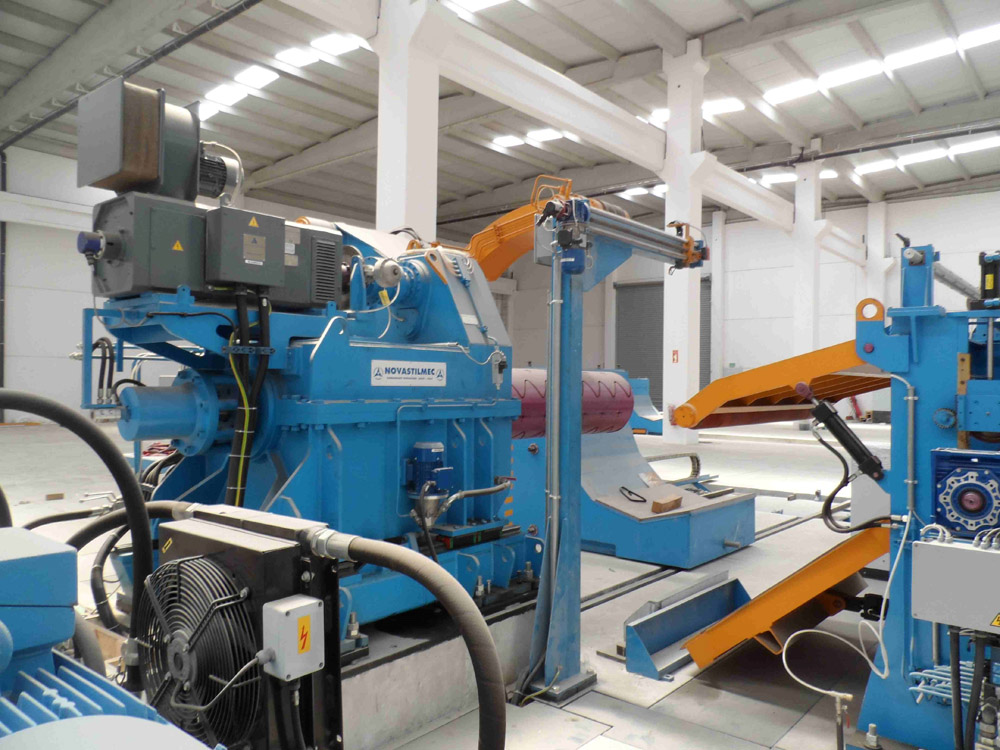

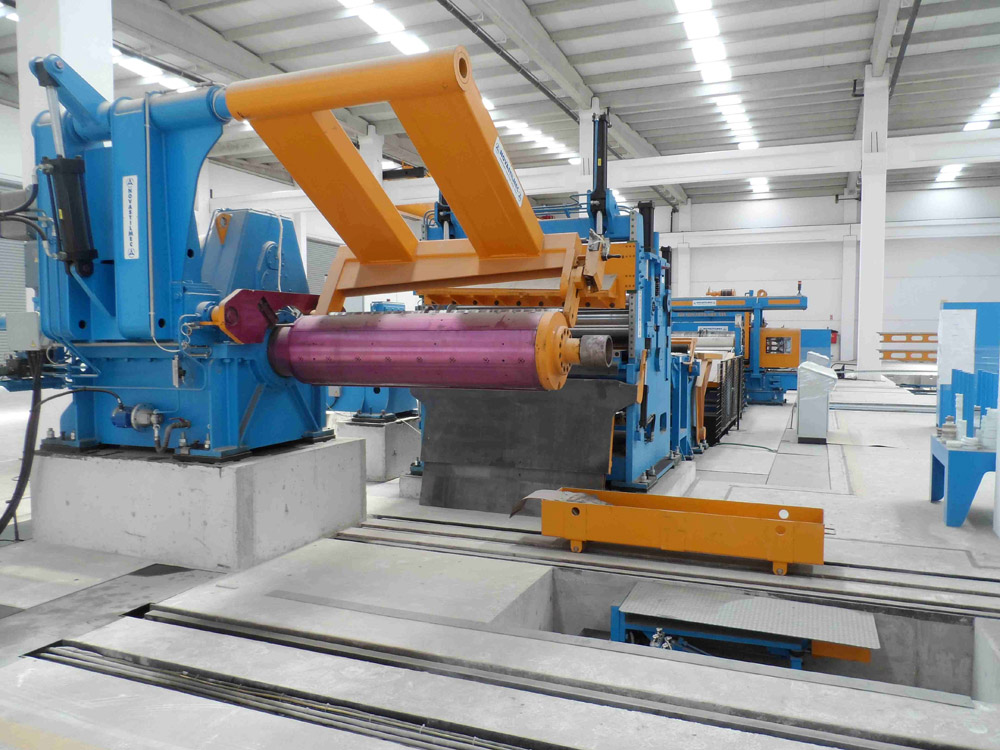

    RECOILER WITH "THIRD SUPPORT" - CAP.: 12 t
    HYDR. COIL OFF-LOADING CAR



    - Hydraulics: Vickers
    - Electics: Siemens
    - PLC: Symatic-ET200M
    - Inverters: Gefran
    - Motors: Selm



    Spare parts:
    some slitter tooling


    We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

    Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
