Slitting Line HYBRID Used [#3343]
   Slitting lines SLL  Slitting Line HYBRID Used [#3343]
SOLD
1

Used Slitting Line
560mm x 2mm / for non-ferrous metals
HYBRID

max. coil width: 560mm
slitter arbor diameter: 80mm

entry coil ID: 300mm, 400mm, 500mm
exit coil ID: 400mm, 500mm




This used slitting line for non-ferrous metals was revamped by us in 2008.
It has been in use for processing aluminium, brass, bronze, copper... coils.

The max. coil weight for the line is 3 Tonnes, both at entry and at exit.
The thicknesses of material that can be processed with the line are .3/.4mm to max. 2.0mm.

The maximum line speed is 40m / min.


A "hybrid" pad/rolls strip tension unit and a scap baler are included in the line.






We specialize in slitting lines for aluminium, brass, copper, titanium...

Particular problems can arise during slitting of these materials: like edge burr and wave, knife marks, a.s.o.
(Slitting them on "conventional" lines normally results in production/quality issues.)
Our particular experience in this field helps solving. In some cases, we can also get to upgrade existing "non-specific" slitting lines to efficiently run non-ferrous metals.


You can contact us for aluminium, brass, copper, specialty-alloys, tinplate, titanium cut to length lines - levellers - process lines - slitting lines - surface finishing lines and line components.

Some NEW cut to length lines for non-ferrous metals that we have designed and built are shown in the Presentations: 000A, 3223, 3176 on the "Cut To Length Lines" page.

Some NEW coil to coil slitting lines for non-ferrous metals that we have designed and built are shown in the Presentations: 3277, 3162, 3158, 3151, 3152 on this page.

For NEW coil to coil embossing, preparation, punching lines for non-ferrous metals that we have designed and built please see Presentations on the "Other / Specialty Equipment Types" page.

We also build lines and line components to major continuous casting, coil coating, and other process equipment makers.
We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...

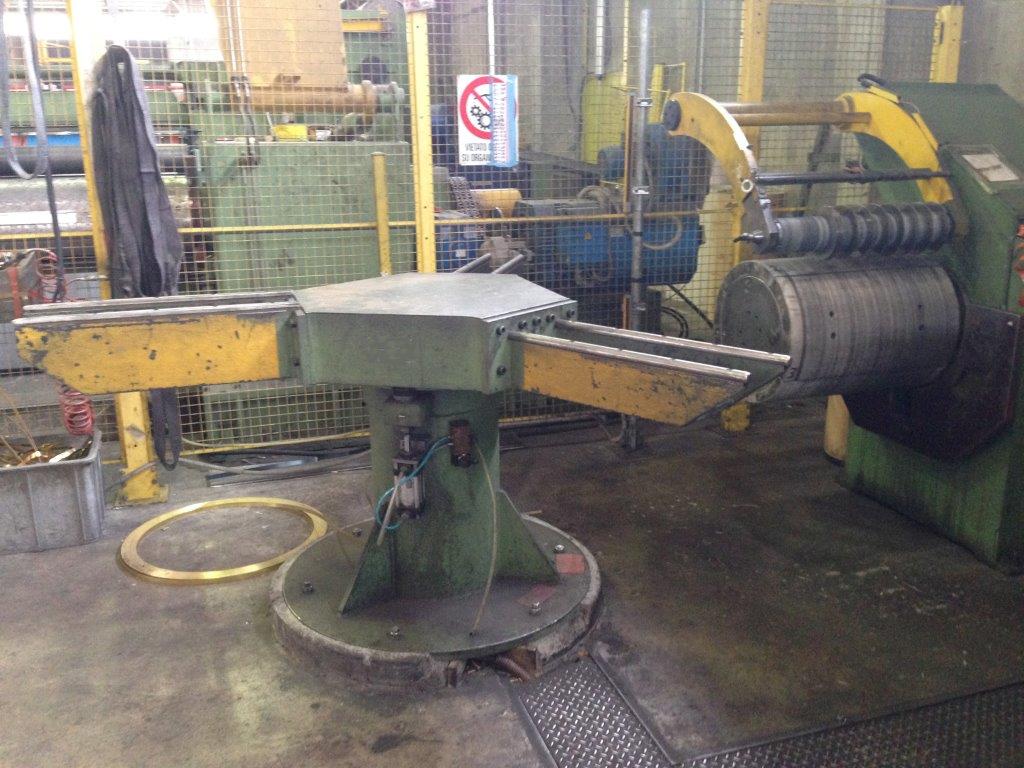

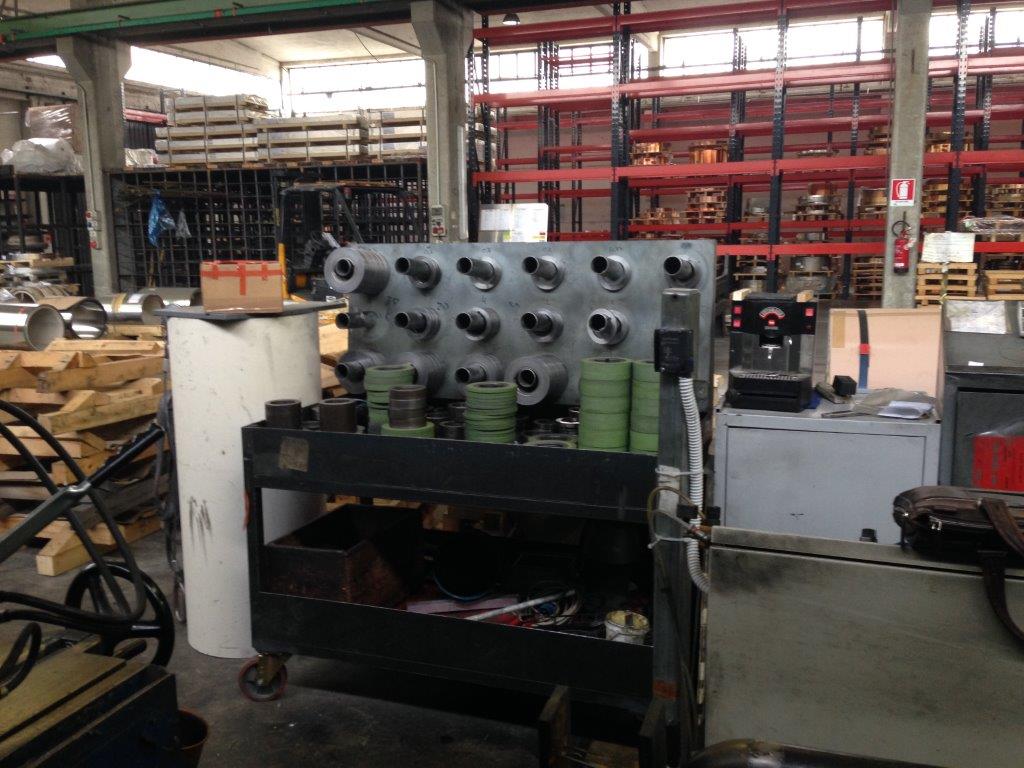

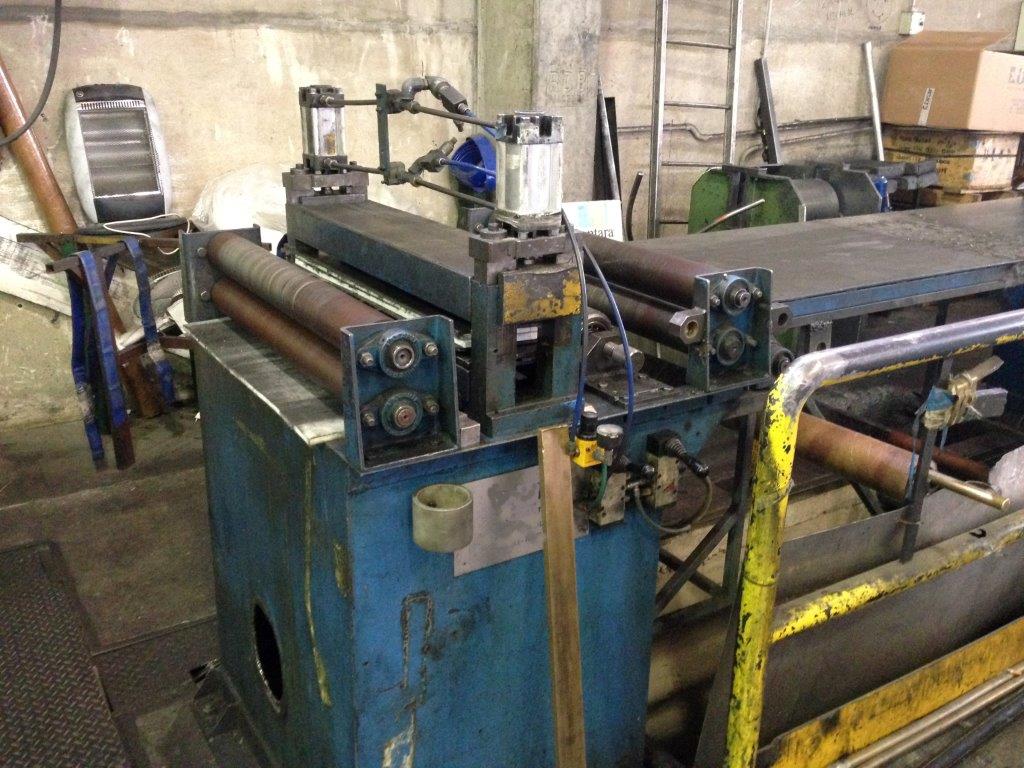

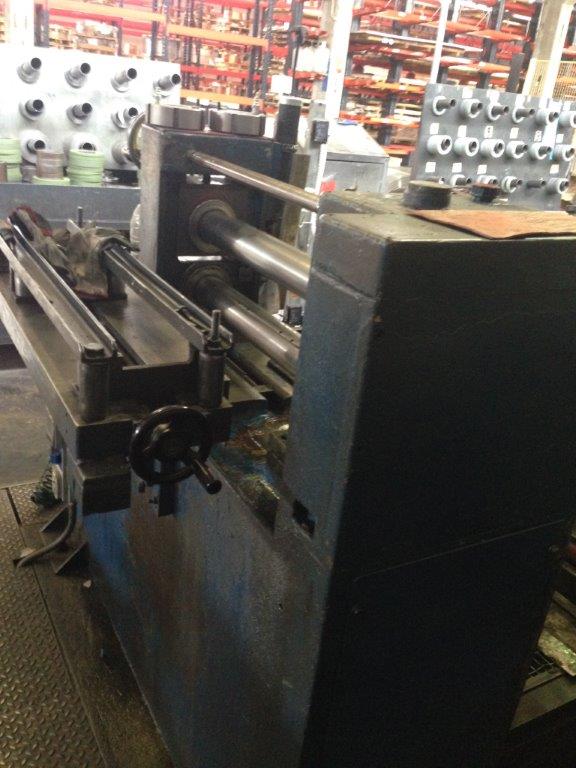

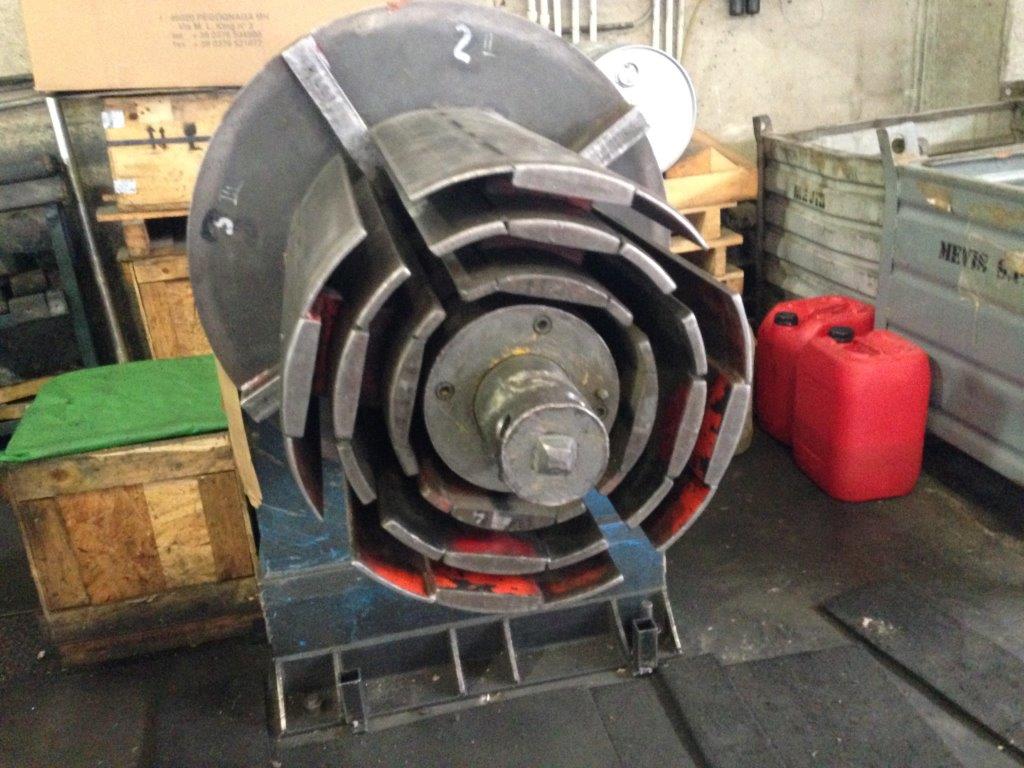

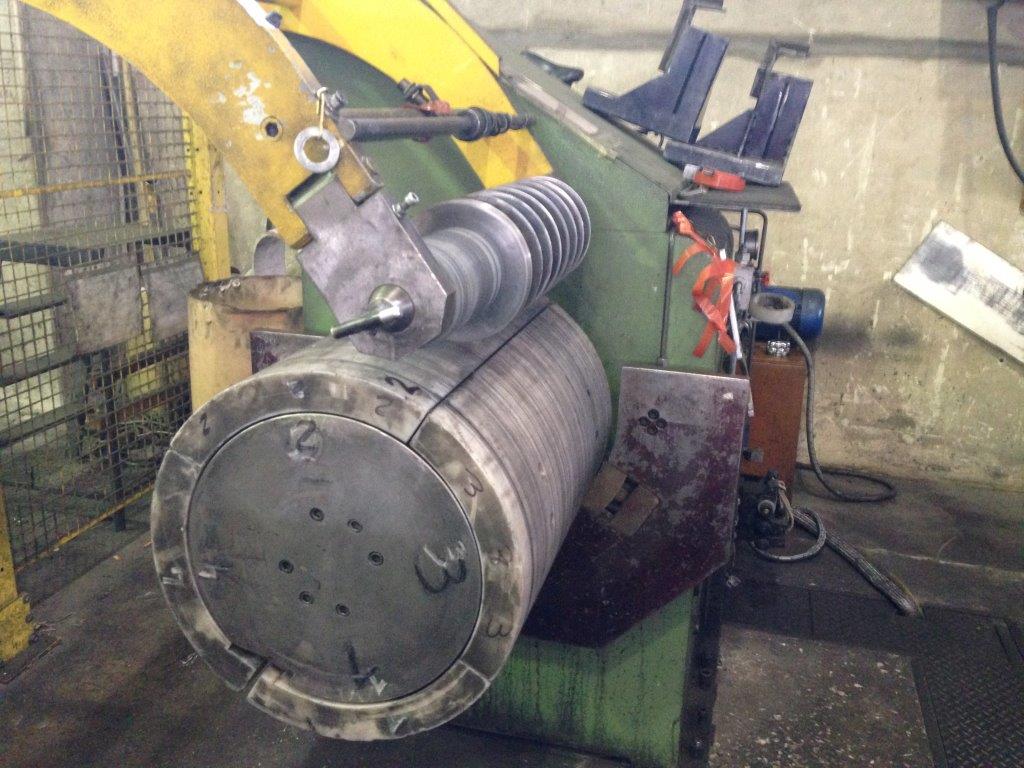

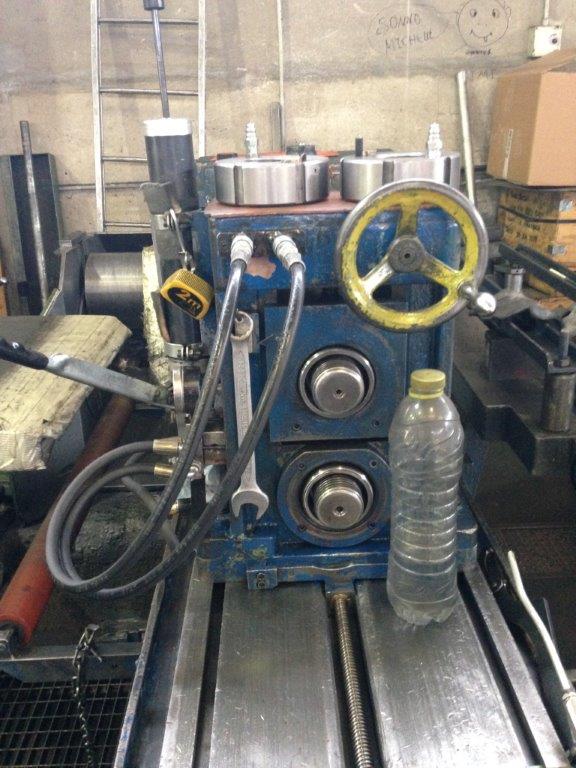

PHOTOS & IMAGES
