TRIPLE TURRET SLITTING LINE

Triple Turret Slitting Line DURMECH Used [#3420]
   Slitting lines SLL  Triple Turret Slitting Line DURMECH Used [#3420]
SOLD
1

Used Triple Turret Slitting Line
600mm x 4mm Carbon Steel & Stainless Steel
DURMECH


    A 600mm x 4mm, 240m / min used Carbon & Stainless Steel Slitting Line for sale. Completely updated in 2003. 10>6 Ton reels. Direction: right to left


    “DURMECH” Brand 600mm x 4mm, 240m / min used Loop Slitting Line for sale. Suitable for carbon & stainless steel coils. Built in the mid-‘80s and then completely revamped in 2003 with new electronics including DC motors, pneumatics and hydraulics. 10>6 Ton reels. The line direction is right to left. Line installed & under power (only used occasionally)



    Manufacturer Durmech
    Type Triple Turret

    Max Coil Weight
    - On -10 Ton
    - Off – 6 Ton

    Uncoiler I/Dia 450mm – 508mm
    Recoiler I/Dia 508mm
    Gauge
    - .5mm min
    - 4.0mm max


    Stainless Steel / Carbon Steel
    ↓                                  ↓
    No of Cuts: drive assist mode 100m/min
    -             4.0mm         4
    No of Cuts: drive assist mode 100m/min
    5            3.2mm         7
    No of Cuts in driven slitter mode 240m/min
    7            2.5mm         9
    No of Cuts in driven slitter mode 240m/min
    9            1.8mm        12
    No of Cuts in driven slitter mode 240m/min
    12            1.0mm       14



    Line Direction Right to Left
    Line Speed up to. 240m/min
    Recoiler Motor Power
    - 0/80kW / 80kW
    - 0/560/2000RPM

    Slitter Motor Power
    - 0/1995RPM
    - 0/50Kw

    Electronics
    - G.E.Faunuc PLC
    - Telemechanque control gear

    DC Motor Control Eurotherm
    Hydraulics Vickers


    The line was completely updated in 2003 with new electronics including DC motors, pneumatics and hydraulics.




    Equipment List

    Coil Jack
    Snubber Arm
    Peeler
    Pinch Roll Unit
    Carry Over Table (x3)
    Guide Roll Table
    Scrap Baler
    Quadrant (x2)

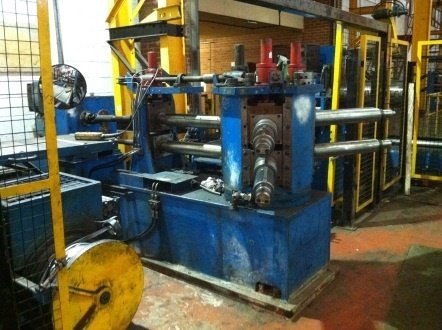

    Triple Turret Slitting Head
    Loop Pit Table
    Tension Box
    Exit Shear

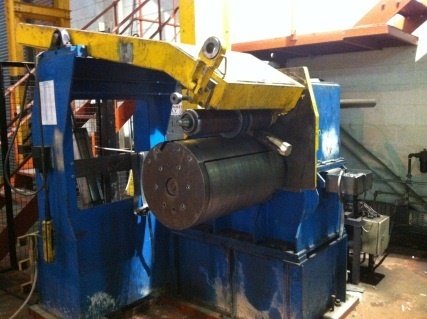

    Recoiler 20” (508mm) Drum
    Overarm Separator
    Coil Car
    Capstan (Turnstile)


    General Functions

    Coil Jack Raise/lower Hydraulic
    Decoiler Brake On/Off Pneumatic
    Decoiler Traverse Left/Right Hydraulic
    Decoiler Drum Exp/Col Hydraulic
    Decoiler Drive Forward/Reverse Hydraulic
    Snubber Elevation Raise/Lower Hydraulic
    Snubber Drive Forward/Reverse Hydraulic
    Peeler Elevation Raise/Lower Hydraulic
    Peeler Blade Ex/Ret Hydraulic
    Tailstock In/Out Hydraulic
    Guide Table Raise/Lower Hydraulic
    Arbours Raise/Lower Hydraulic
    Scrap Winders On/Off Hydraulic
    Oscillators On/Off Pneumatic
    Loop Pit Table Raise/Lower Hydraulic
    Tension Box On/Off Pneumatic
    Shear Cut/Ret Hydraulic
    Decoiler Drum Exp/Col Hydraulic
    Decoiler Drum Forward /Reverse Electrical
    Recoiler Brake Pneumatic
    Push Off Plate Eject/Ret Hydraulic
    Overarm Separator Raise/Lower Pneumatic
    Exit Coil Car In/Out Hydraulic
    Exit Coil Car Raise/Lower Hydraulic

    Proximity Switch 1 Snubber raised for line run.
    Proximity Switch 2 Peeler down for line run.
    Proximity Switch 3 Loop pit table down for line run.
    Proximity Switch 4 Arbour fully raised for tailstock disengauge.
    Proximity Switch 5 Tailstock engaged for line run.
    Proximity Switch 6 Shear retracted for line run
    Proximity Switch 7 Push Off plate back for line run.
    Proximity Switch 8 Overarm separator raised for push off.
    Proximity Switch Uncoiler Drum Expanded for the line run
    Proximity Switch Uncoiler Drum Expanded for the line run

    3 gate switches 100 volt locking solenoid type with safety circuit diameter calculator
    We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

    Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...

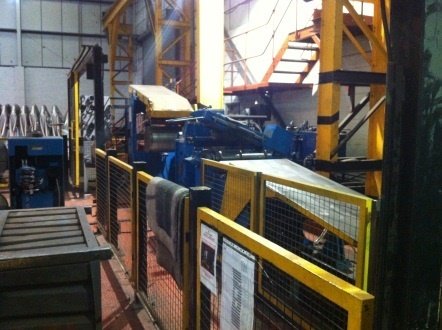

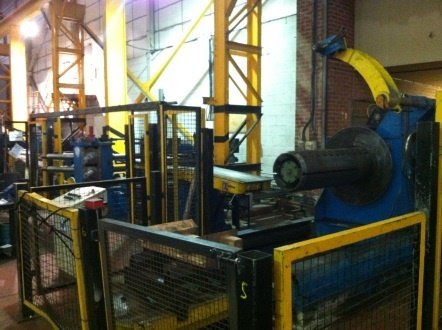

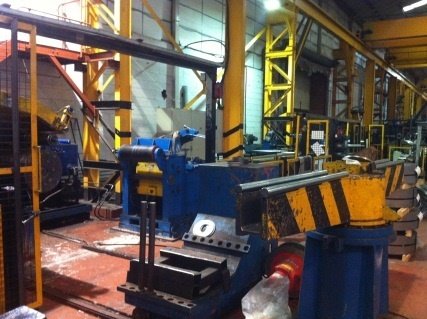

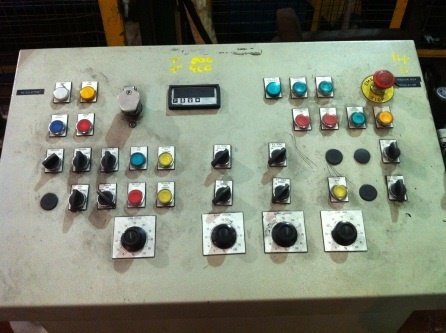

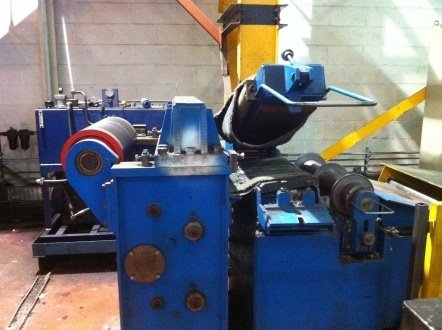

    PHOTOS & IMAGES
