A 1500mm x 4mm USED CARBON STEEL SLITTING LINE FOR SALE, OF 1990, IN RATHER GOOD CONDITION

SLITTING LINE

Slitting Line SIRP Used [#3408]
   Slitting lines SLL  Slitting Line SIRP Used [#3408]
SOLD
1

Used Slitting Line
1500mm x 4mm
SIRP

Year when built: 1990



    A 1500mm x 4mm USED CARBON STEEL SLITTING LINE FOR SALE, OF 1990, IN RATHER GOOD CONDITION

    1500mm x 4mm USED CARBON STEEL SLITTING LINE FOR SALE, OF 1990, IN RATHER GOOD CONDITION. THE MAXIMUM LINE SPEED IS 100m / minute. THE MAX. CAPACITY OF DECOILER IS 15 TONNE, AT RECOILING 15 TONNE
    The line "mechanics" are in good condition; the electrics require revamping



    The line general information is as follows

    Process Material: Carbon Steel
    Coil Max. Weight at Entry and, resp. at Exit: 15 Tonne
    Minimum Material Thickness: .4mm
    Maximum Material Thickness: 4mm
    Line speed max.: 100m / min


    Equipment description

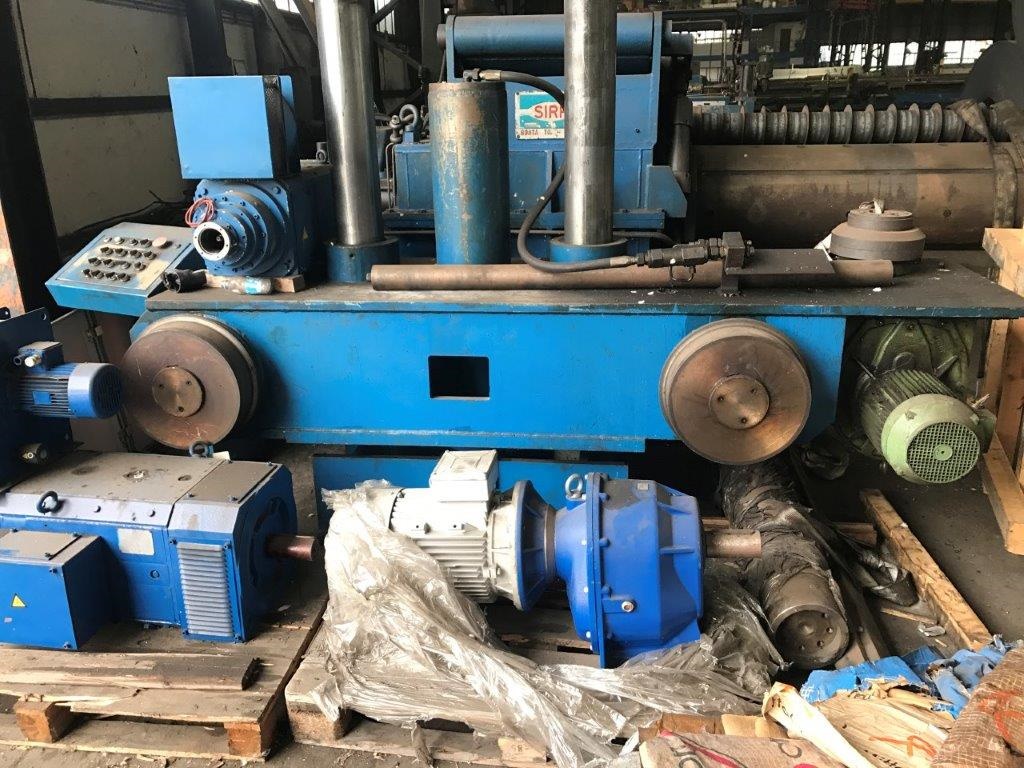

    Coil Loading Car
    2 column type
    Hydraulically up/down motion, horizontal electric

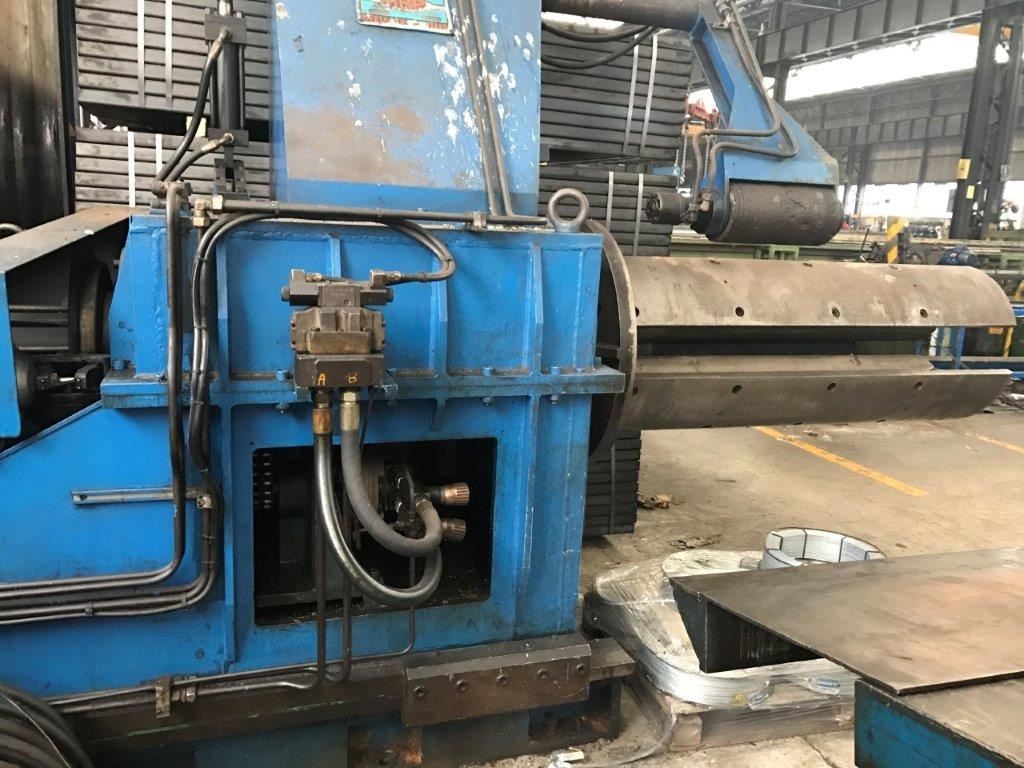

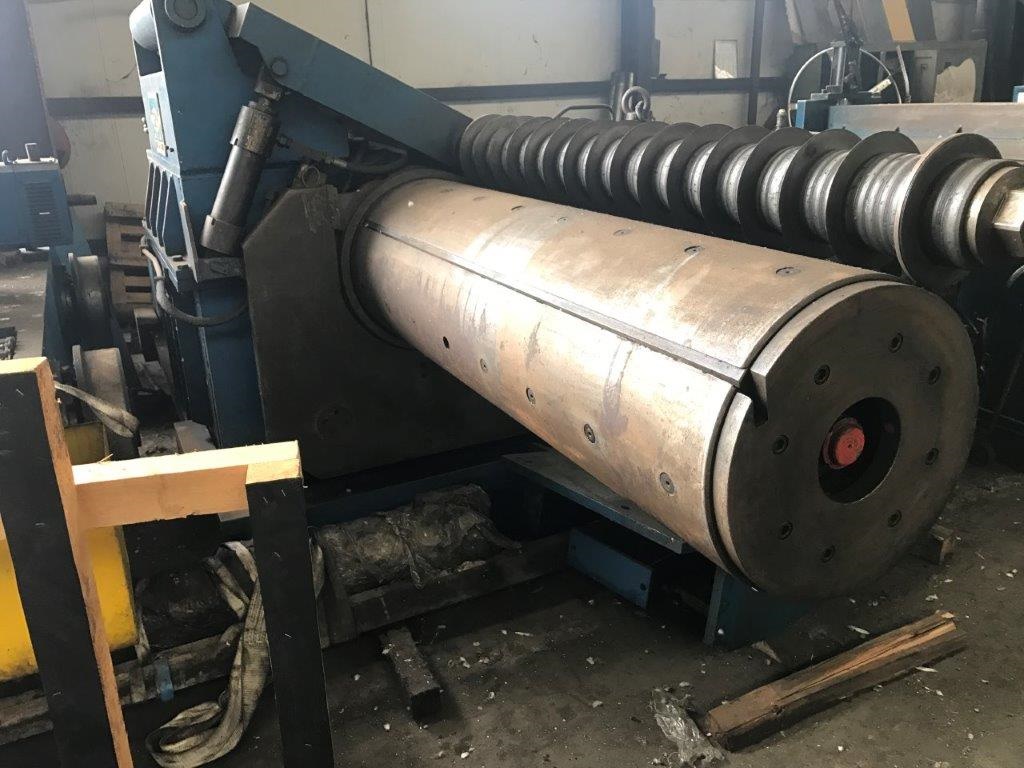

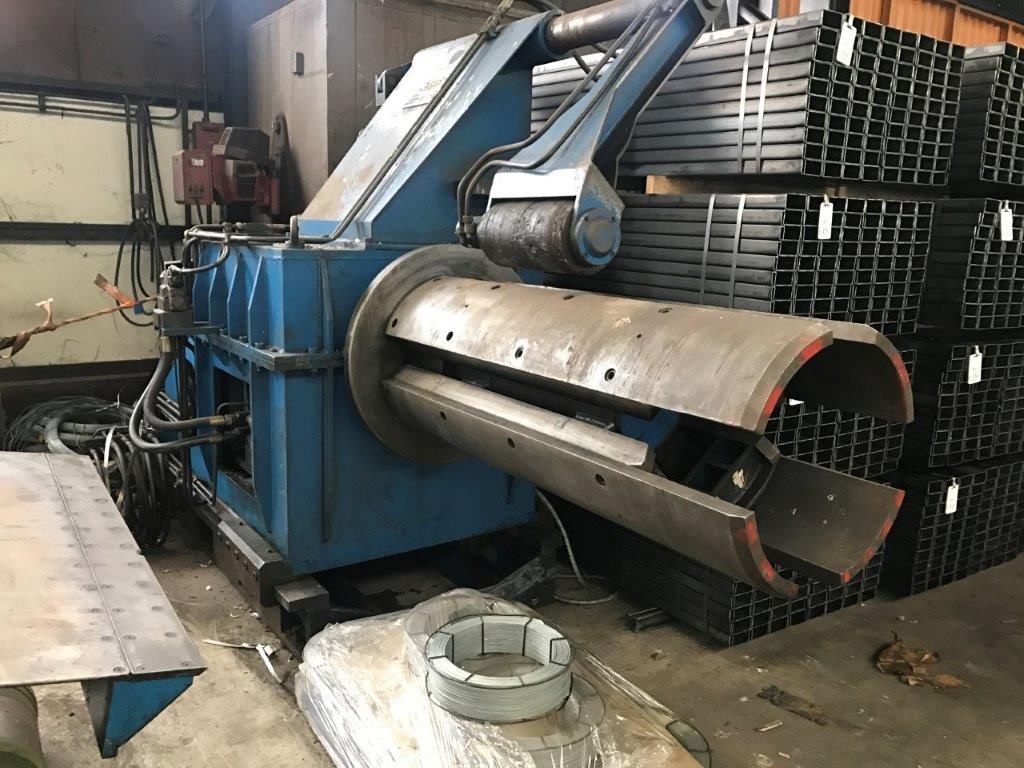

    Decoiler
    75 Kw
    4-segment mandrel drum

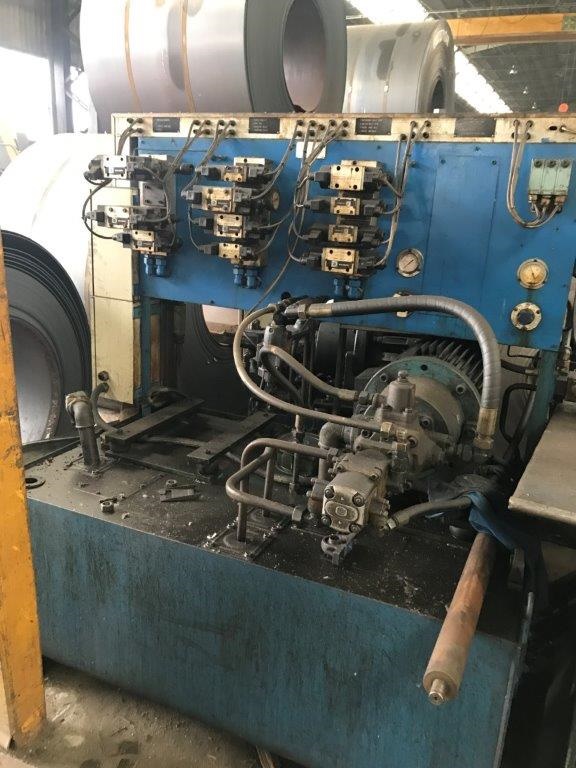

    Mobile base, hydraulically operated
    Rubber coated snubber roll
    Disc brake

    Hydraulic butt shear

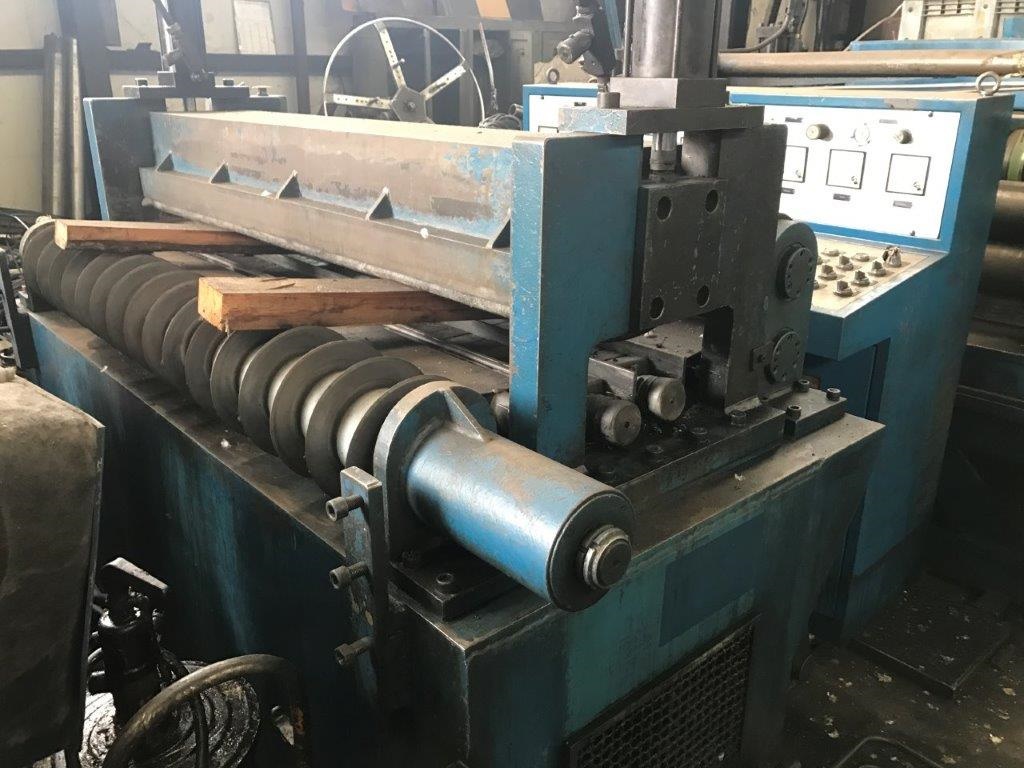

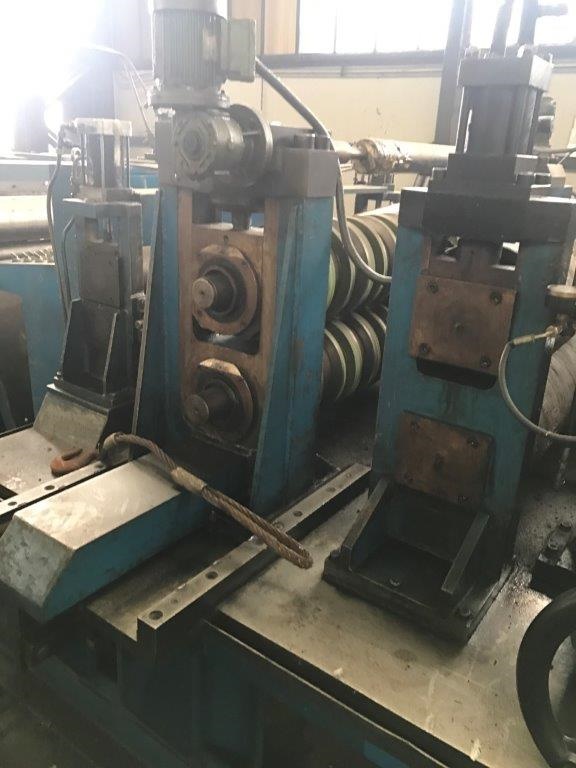

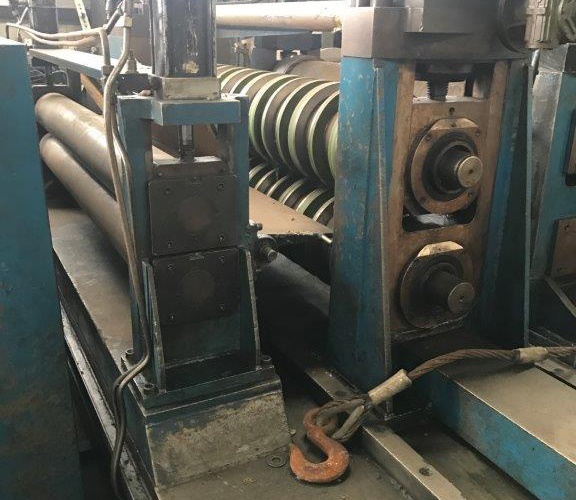

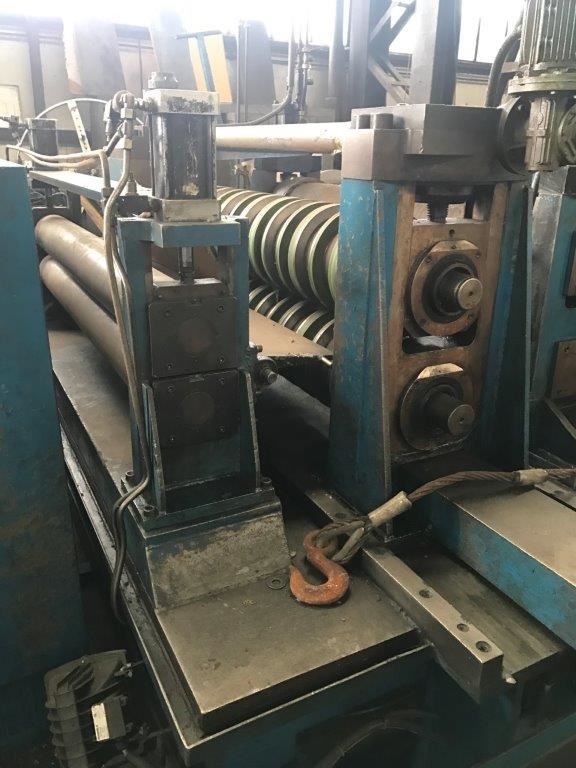

    Slitter
    58 kW DC
    Shaft dia. 180mm

    Scrap winder
    AC motor driven

    Strip tension pad

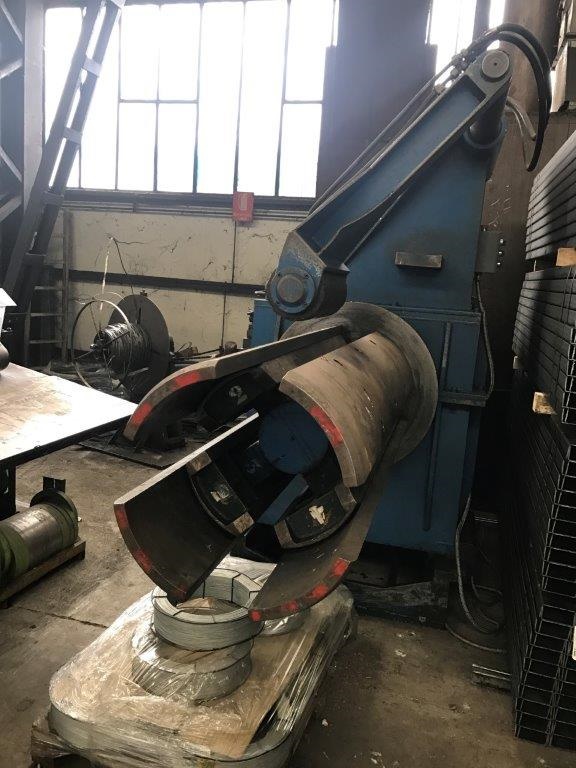

    Recoiler with ejection plate
    75 Kw

    3-arm turnstile

    1 "main" control panel
    2 "secondary" panels

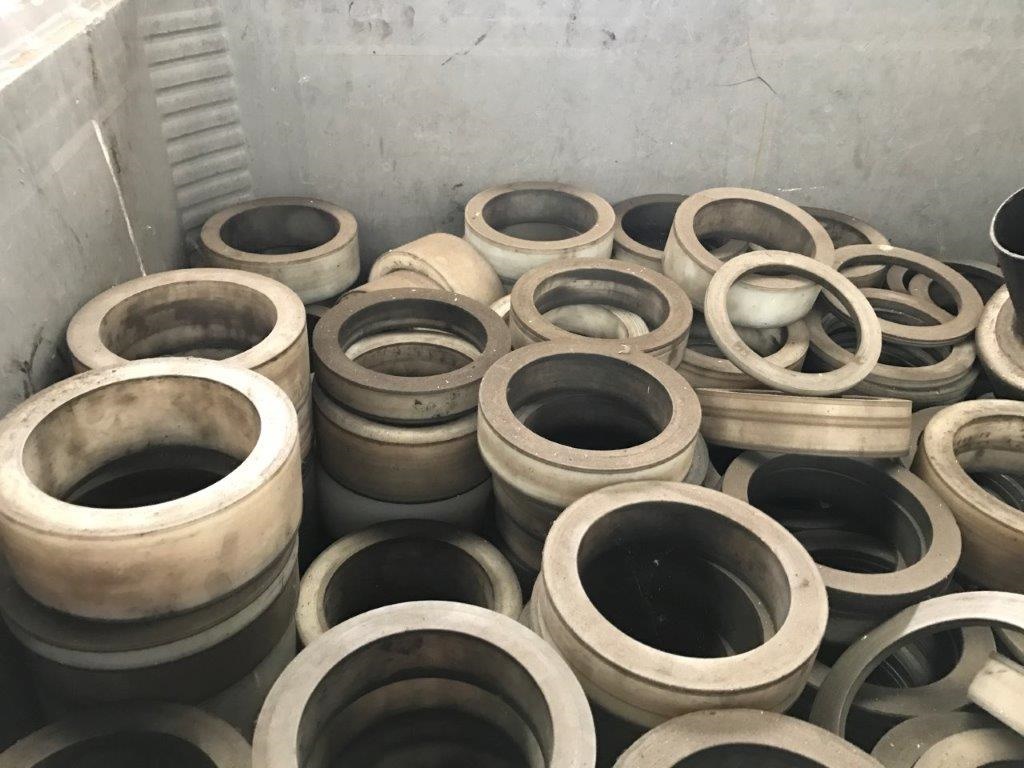

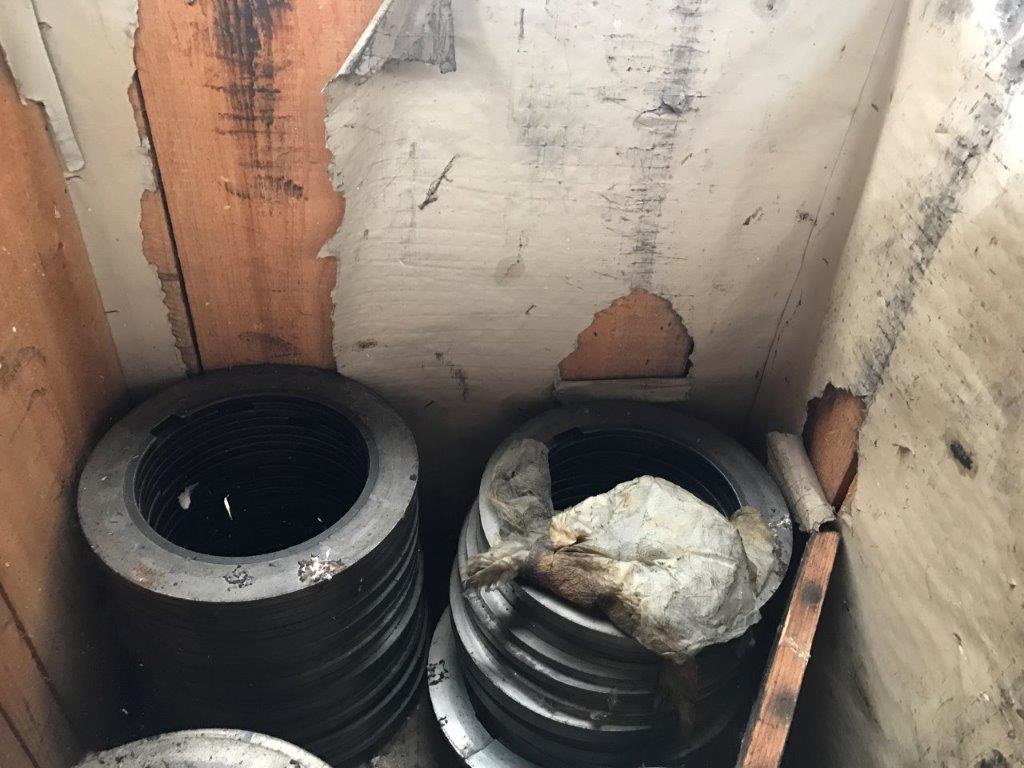

    SLITTER TOOLING
    We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

    Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
