A 1600mm x 8mm NEW HEAVY GAUGE SLITTING LINE FOR SALE, BUILT IN 2017, NEVER USED: IMMEDIATELY AVAILABLE. REAL OCCASION

SLITTING LINE

Slitting Line SELF-BUILT BY A CUSTOMER Unused [#3413]
   Slitting lines SLL  Slitting Line SELF-BUILT BY A CUSTOMER Unused  [#3413]
1

Unused Slitting Line
1600mm x 8mm
SELF-BUILT BY A CUSTOMER
FOR SALE

Year when built: 2017
OFFERED SUBJECT TO BEING UNSOLD
  • Never used. Regular 12-month guarantee
  • Installation & Customer Support: by us


A 1600mm x 8mm NEW HEAVY GAUGE SLITTING LINE FOR SALE, BUILT IN 2017, NEVER USED: IMMEDIATELY AVAILABLE. REAL OCCASION


A 1600mm x 8mm NEW HEAVY GAUGE SLITTING LINE, 60m / min SPEED, IMMEDIATELY AVAILABLE SUBJECT TO PRIOR SALE. BUILT IN 2017 AND THEN NEVER USED. -- REAL OCCASION. OFFERED WITH REGULAR 12-MONTH GUARANTEE. SLITTER SHAFT DIAMETER 240mm (4 CUTS AT MAX. MATERIAL THICKNESS). COIL ID 508/610/760mm. -- INSTALLATION AND CUSTOMER SUPPORT: BY US





Line Characteristic

Process Material Break Point: 510 Nw/mm2
Max. Coil Width: 1600mm
Material Thickness: 3mm to 8mm
Coil ID: 508/610/760mm
Coil Max. OD: 1800mm (600mm minimum at recoiling)
Coil Entry & Exit Max. Weight: 25 Tonne

Coil Threading Speed: 10m / min
Line Max. Speed: 60m / min (can be increased on demand)
Slitter Shaft Diameter: 240mm
OD of Circular Knives: 400mm
Scrap Baler
Installed Power: 250 kW
Absorbed Power: 200 kW


Max. possible number of slits (with 400 N/mm material):
at 3mm thickness 24 slits
at 4mm thickness 15 slits
at 6mm thickness 6 slits
at 8mm thickness 4 slits (45m / min)


Line Components: by BONFIGLIOLI, ATOS, OILCILINDRO, SKF, SIEMENS, KHUNKE, TOSONI FLUIDODINAMICA





Equipment List

Coil Loading Car

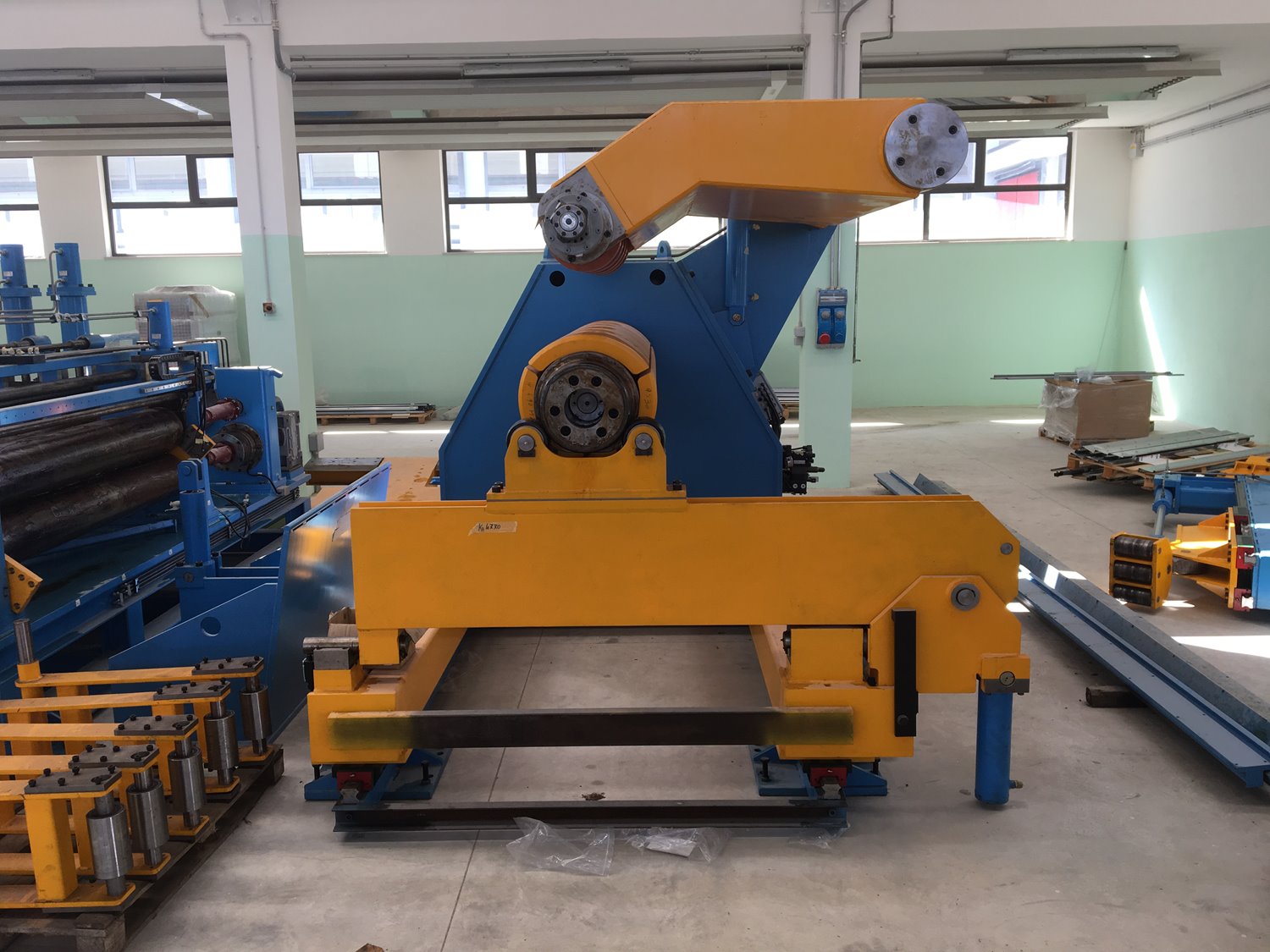

Decoiler
Peeler Station
Coil Centering Station
Straightener
Crop Shear & Scrap Collection Car

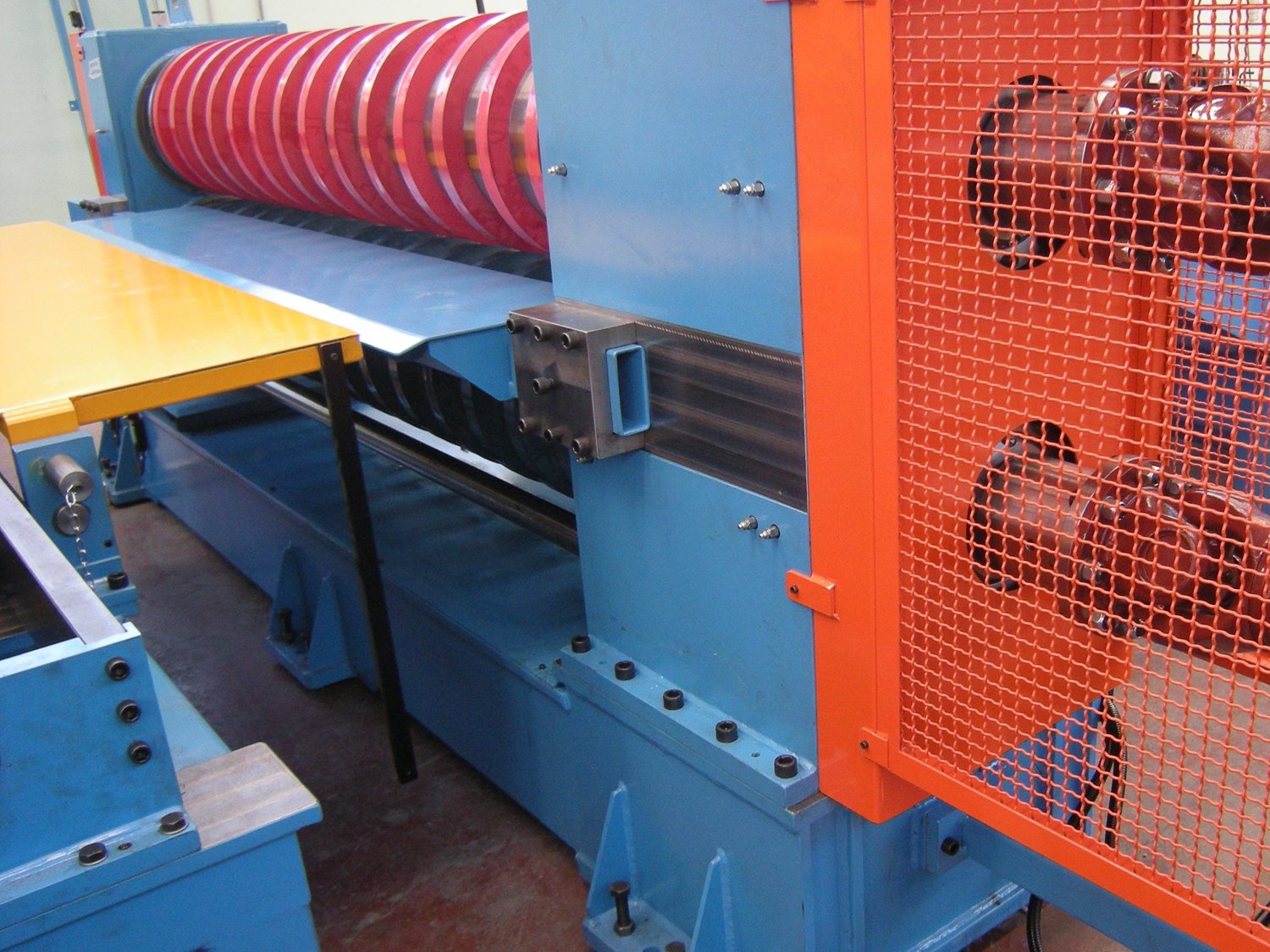

Slitter
Scrap Baler
Floor Pit Tables
Kill Rolls
Strip Tension Pad
Deflector Roll & Mobile Table
Recoiler
Coil Off-Loading Car
Main Control Desk & Aux. Control Desk


No Slitter Tooling is included



LINE NOW PAINTED BLUE
We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
