New Auto. + “Conventional” Slitter Line
1500mm x 2mm
FLOREANI & P.
BUILD TO ORDER CUSTOM DESIGNED

    with auto. CNC programmable slitting heads to process max. 1500mm wide coils, and a 650mm wide “conventional” slitter


A new slitting line of our original concept, coming with both auto. CNC programmable slitting heads for coils up to 1500mm wide and a “classic” 650mm wide slitter (with 3-arm tooling exchanger); … complete with three coil loading cars, 4-arm turnstile at exit etc. … Line speed max. 100m / min.

A special design, uncommon new slitting line that includes both our unique CNC programmable slitting heads for coils up to 1500mm wide and a “classic” 650mm wide slitter (with 3-arm tooling exchanger). The line is complete with three coil loading cars, coil off-loading car and 4-arm turnstile at exit etc.



The line, built in 2013 is installed at a major mill’s service center in Northern Europe.


Material thickness from .5mm to 2mm, max. hardness 680 MPa
Maximum line speed 100 m/min




The line includes:


3 fast-shifting coil cars

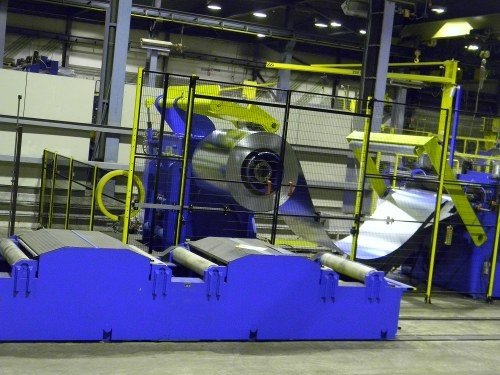

15 Ton decoiler with edge control and snubber arm, for coils with 480mm to 630mm ID

coil threading station with telescopic table, pre-straightening rolls, auxiliary crop shear and coil leading edge chop evacuation system


double slitting system:

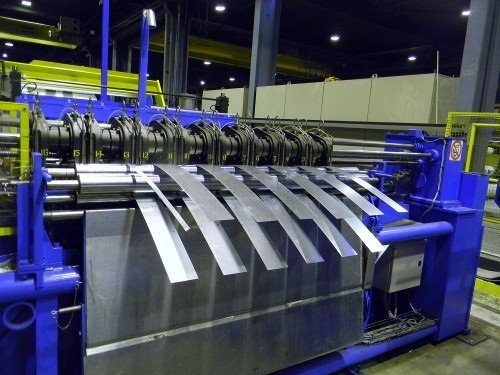

1) 16 CNC programmable slitting heads, with automatic positioning and production “recipe” storage possibility

2) A “conventional”, 650mm wide for making very narrow strips; completed by a 3-arm tooling exchangerfor the quick exchange of cutting tools

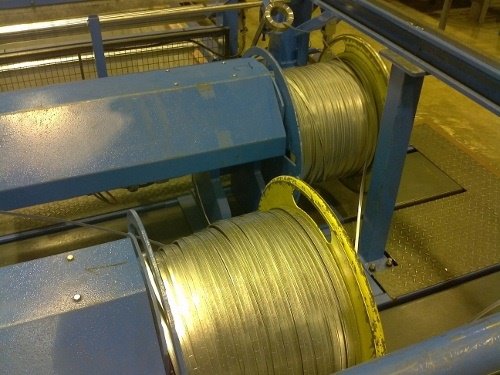

scrap winders, with a 500 kg capacity each winder

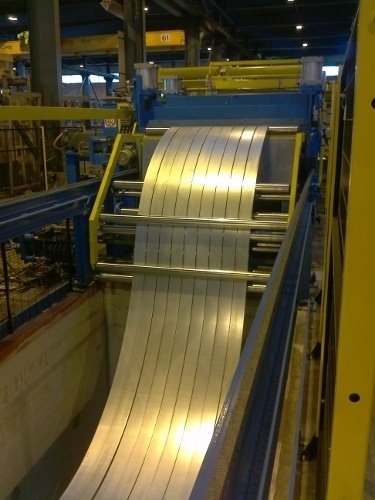

mobile strip tension pad, automatically taking strips to recoiler
&
roll type strip tension unit, with edge control photo-cell to recoil wide strips or full width coils

crop shear and a special design “pinch” unit for automatically evacuating the coil “tail” without no manual intervention

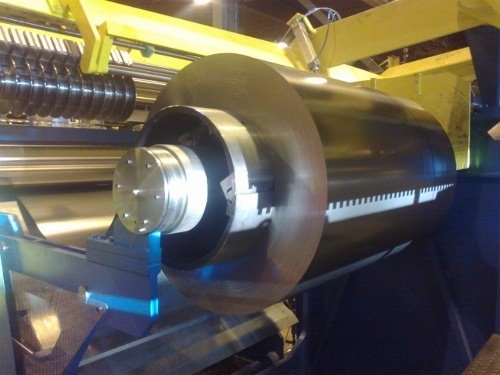

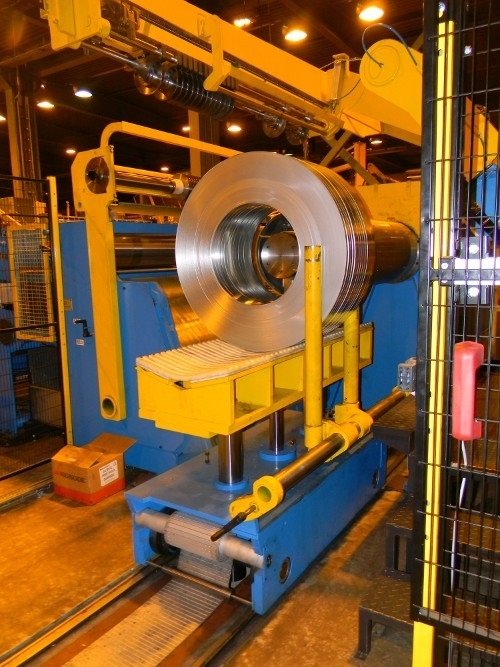

15 Ton recoiler with coil ejection plate, for coils with 610mm ID. Complete with safety “containing arm” with strip hold-down.




We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.

We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.
