New Slit Coil Packaging Line

FLOREANI & PARTNERS

  • Delivered: early 2018


A new banding line with 6 stations, for hot rolled / pickled / coated steel coils. The line can handle coils up to 1850mm. Capacity: up to 45/hour.

NEW SLIT COIL HANDLING AND PACKAGING LINE. 6 STATION, IT CAN HANDLE COILS UP TO 1850mm. MATERIALS: HOT ROLLED, PICKLED, COATED STEEL COILS. LINE CAPACITY UP TO 45/HOUR.
FLOREANI & PARTNERS OFFER EFFICIENT BANDING LINES WITH COIL TILTERS, CONVEYORS, SORTATION TABLES ETC. OF THEIR OWN DESIGN.






Automatic coil packaging systems improve material flow, cut labor costs and downtime, reduce product-damage... shortly: notably increase profitability.




GENERAL INFORMATION


The annual capacity of the line is targeted on 2 shifts/day (16 hours x 4,5 days = 72 hours/week): 70.000 Tonne.
Coil ID 508mm and 610mm.
Coil ID 600mm – 1850mm.
Material thickness .28mm – 5.0mm.
Coil max. weight 5 Tonne.
Strip width 22mm to 500mm.
Capacity/hour: 45.





LINE COMPOSITION

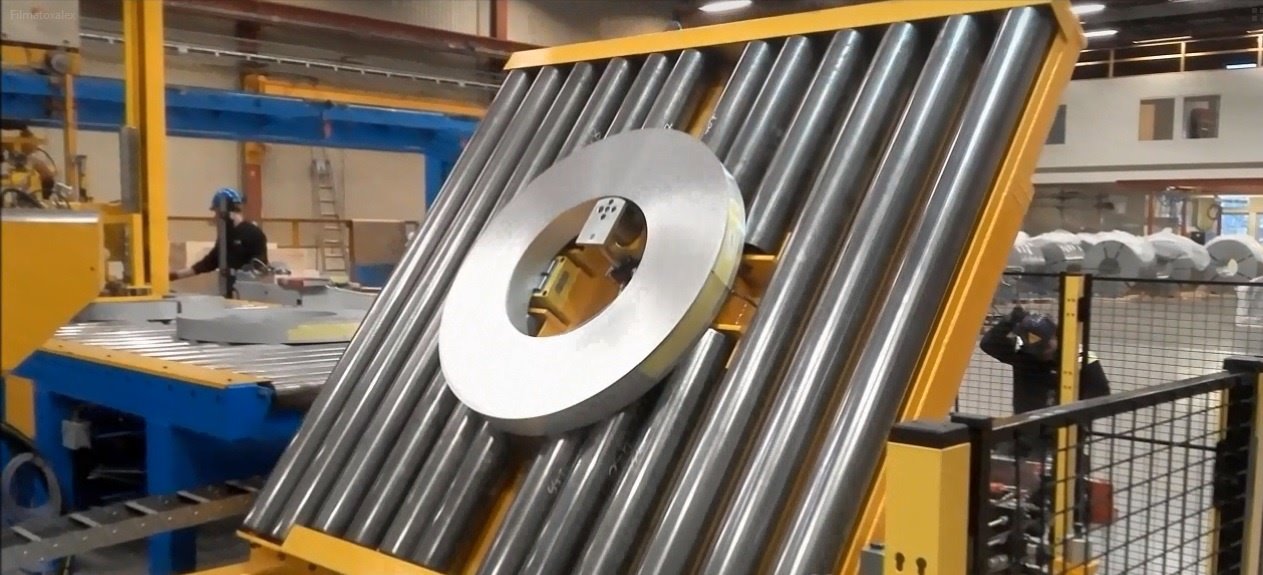

SLIT COIL TILTER, movable on rails, with variable output pick-up device. Max. capacity: 5 Tonne.
The tilter has the function to pick up a single slit coil from the turnstile and overturn it by 90°.
After this operation the slit coil is forwarded to the downstream roller conveyor. The tilting movement is by means of a hydraulic cylinder.
The pick-up device is axially adjustable, also by means of a hydraulic cylinder.
Hydraulic power pack included, mounted on board.

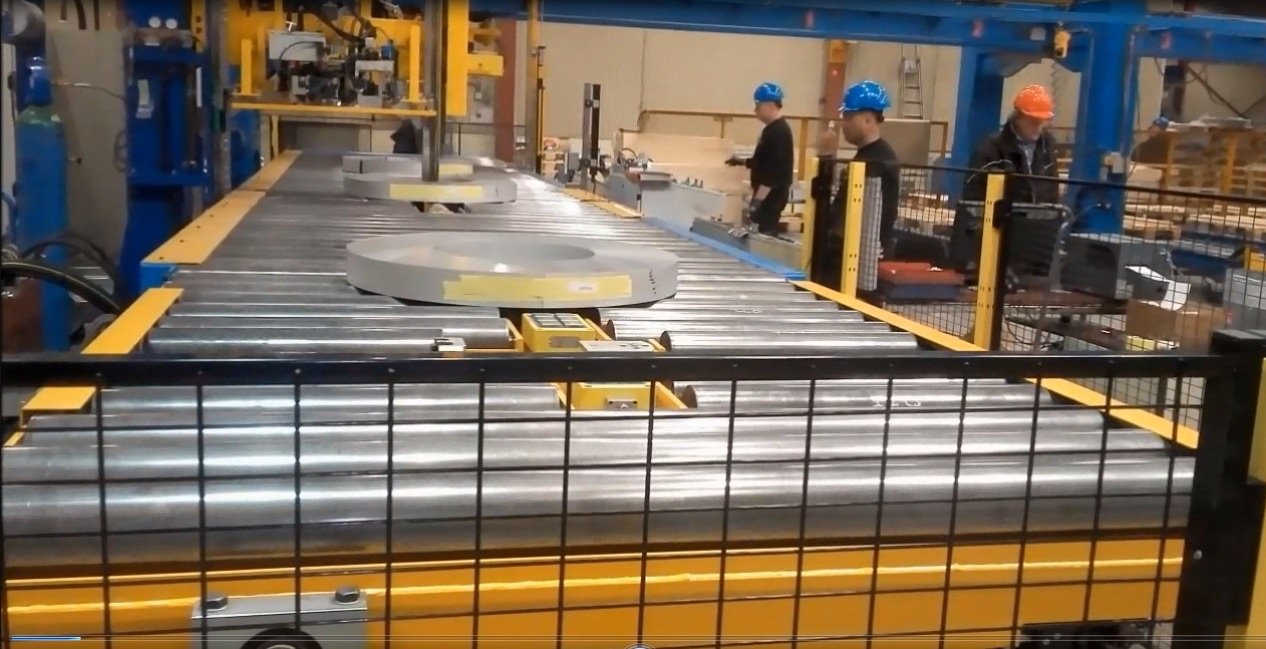

BUFFER ROLLER CONVEYOR
Capacity: 5 Tonne.
Length: ca 2m.
Rolls driven by an electric geared motor.

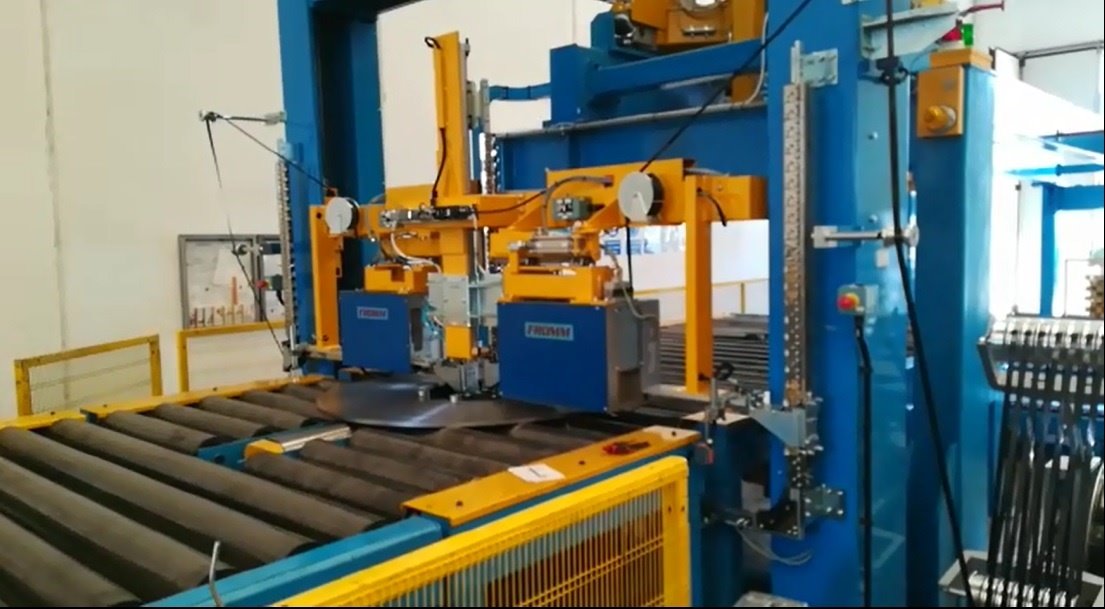

STRAPPING UNIT for radial strapping of the slit coils.
Capacity: 5 Tonne.
Length: ca 2.3m.
Fixed table with tapered rolls, allowing strapping in any positions.

WEIGHING STATION, also acting as buffer conveyor.
Capacity: 5 Tonne.
Length: ca. 2m.
Slit coil centering by means of hydraulic cylinders.
Frame predisposed for the insertion of weighing cells.

CENTERING STATION, with radial/axial centering device.
Capacity: 5 Tonne.
Length: 2.6m.
Slit coil centering by means of hydraulic cylinders.

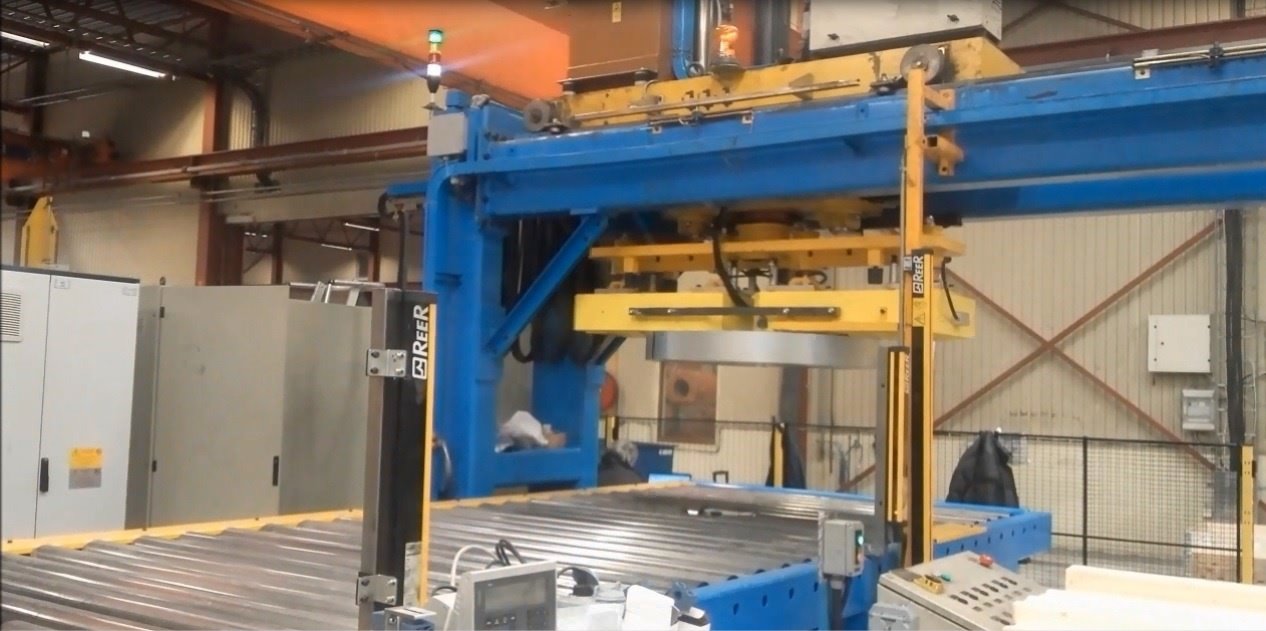

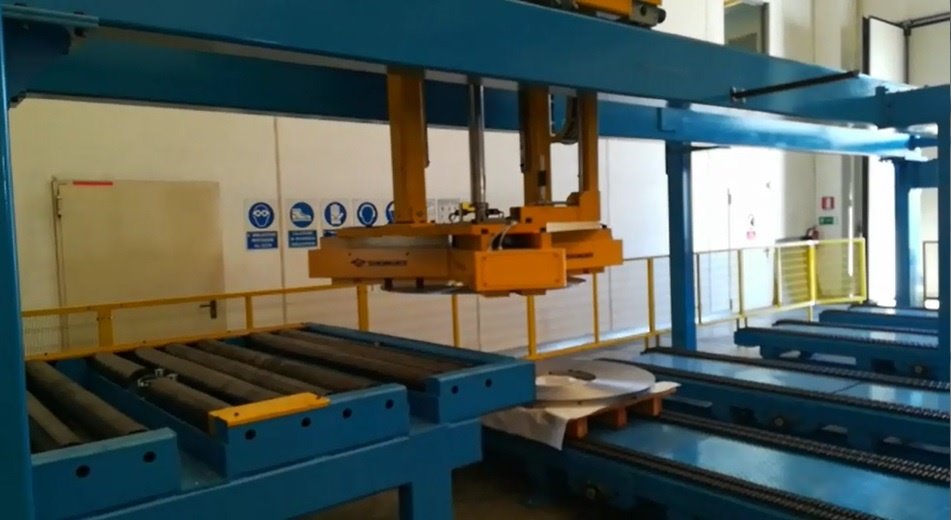

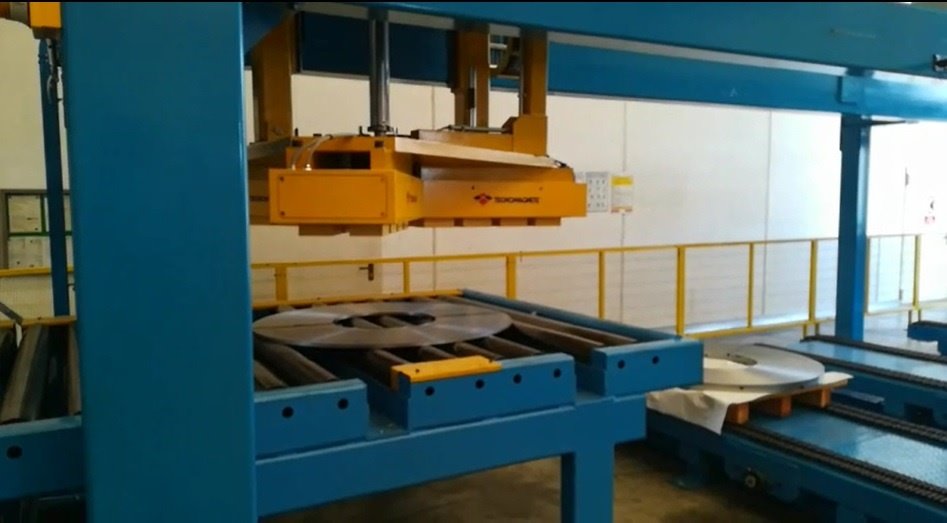

PICK-UP MAGNETS installed on the stacking bridge.
Capacity: 5 Tonne.
Up/down movement of magnets by means of a hydraulic cylinder.
We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
