A used 1500mm x 5mm Injection-Head Coil Slitting Line built in 2007

SLITTING LINE

Slitting Line ZMM Used [#3453]
   Slitting lines SLL  Slitting Line ZMM Used [#3453]
SOLD
1

Used Slitting Line
1500mm x 5mm
ZMM

Year when built: 2007
  • Injection Slitter Heads

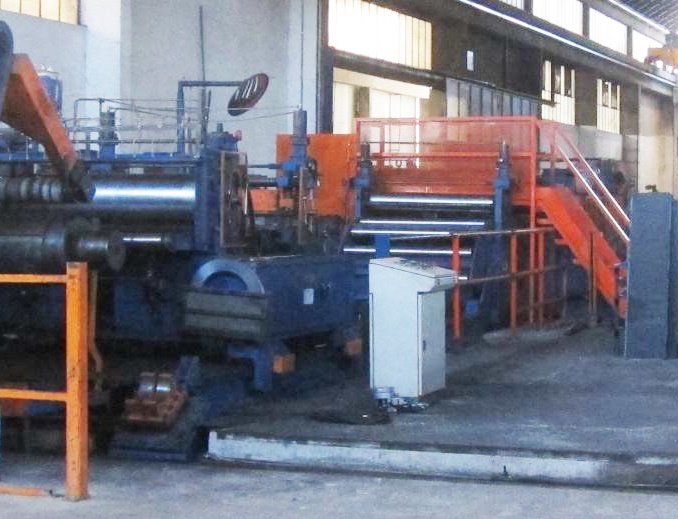

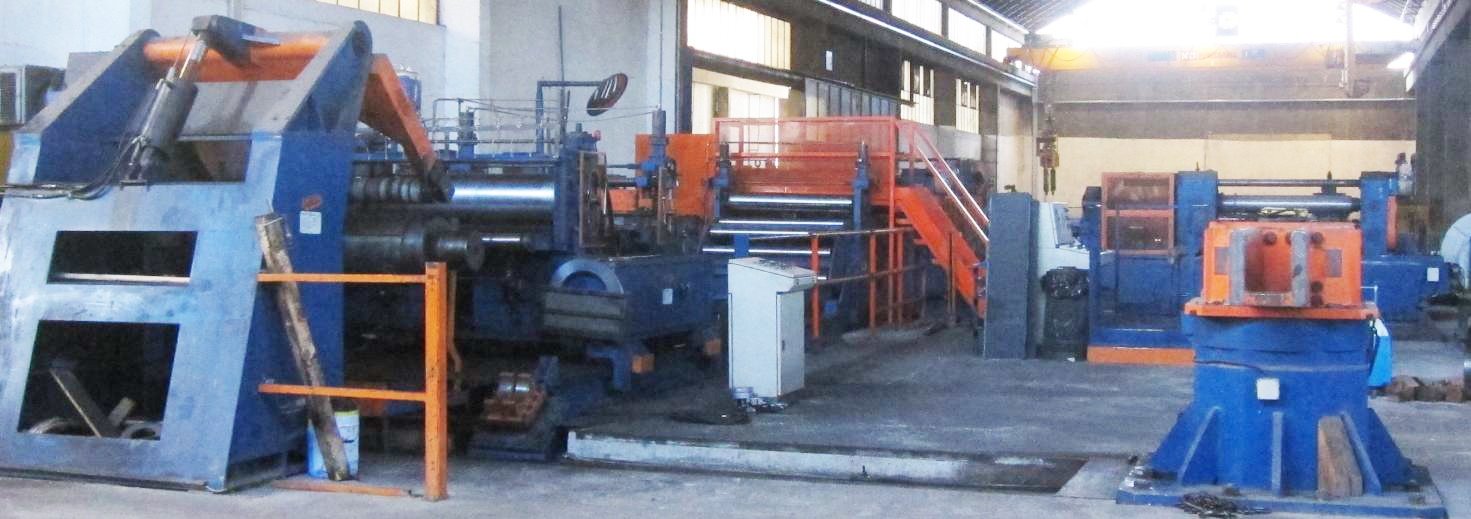

A used 1500mm x 5mm Injection-Head Coil Slitting Line built in 2007, installed but currently out of service. DC motors. 30 Ton decoiler, recoiler & cars; speed 120m / minute. The line (FIMI-Style) manufactured by ZMM in Bulgaria.


Used Injection-Head Coil To Coil Slitting Line, 1500mm x 5mm, installed but currently out of service. DC motors. Year when built: 2007. The max. line speed is 120m / min. The manufacturer is ZMM of Bulgaria; FIMI-Style line. Decoiler, recoiler & cars capacity: 30 Ton.





General Line Information


Material: Carbon Steel
Coil Max. Weight at Entry and at Exit: 30 Ton
Minimum Material Thickness: .5mm
Maximum Material Thickness: 5.0mm
Entry Coil ID: 400mm to 800mm
Exit Col ID: 480-508mm
Coil OD: 1000—2100mm
Line Max. Speed: 120m / min
Line el. absorbtion: 600 kW
Line overall dims.: 25m x 15m







Equipment List


Coil Loading Car

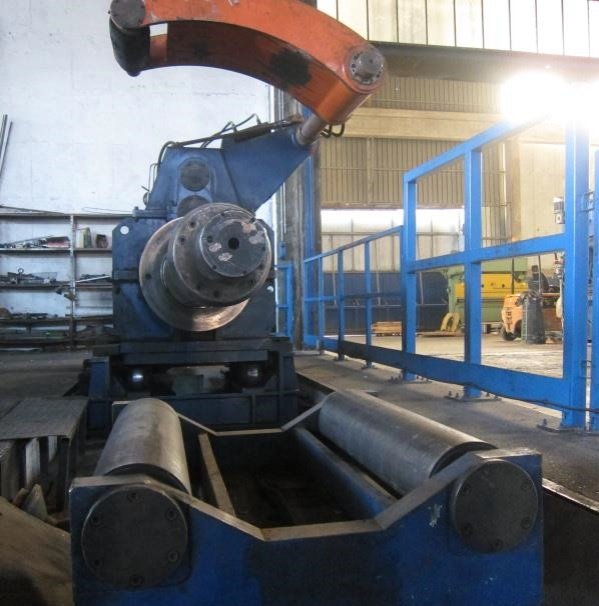

Overhung Drum Type Decoiler
45 kW DC

Coil Threading Station with Pinch Rolls and Telescopic Table

Straightener
3+3 Rolls

Crop Shear

Material Entry Guide

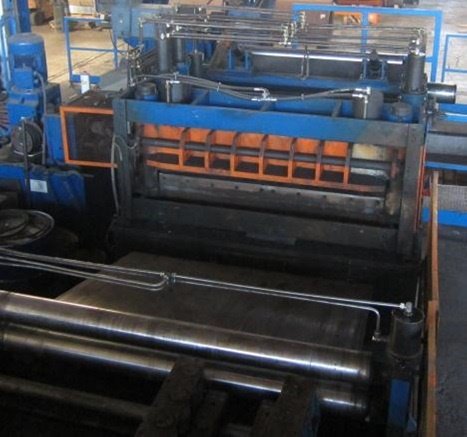

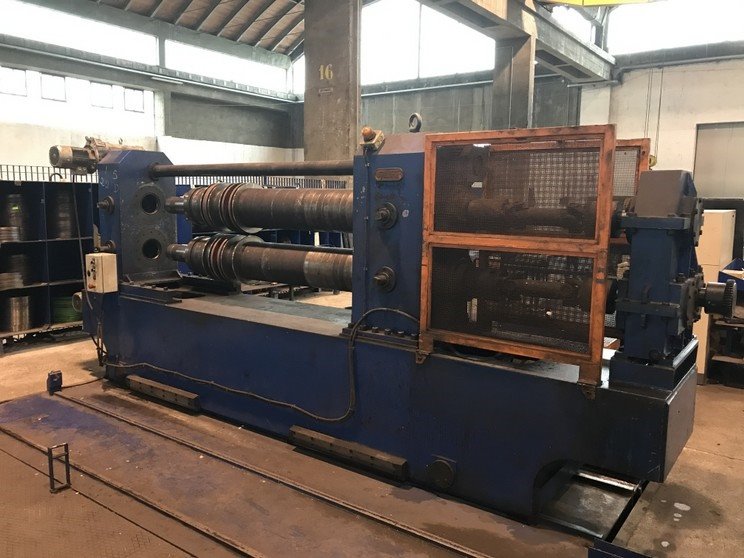

Injection Slitter Heads with dia. 240mm Arbors
106 kW DC

Scrap Baler, 750mm x 750mm
(off-loads to a floor pit)
AC motor driven

“Felt” Strip Tension Pad
Air-operated

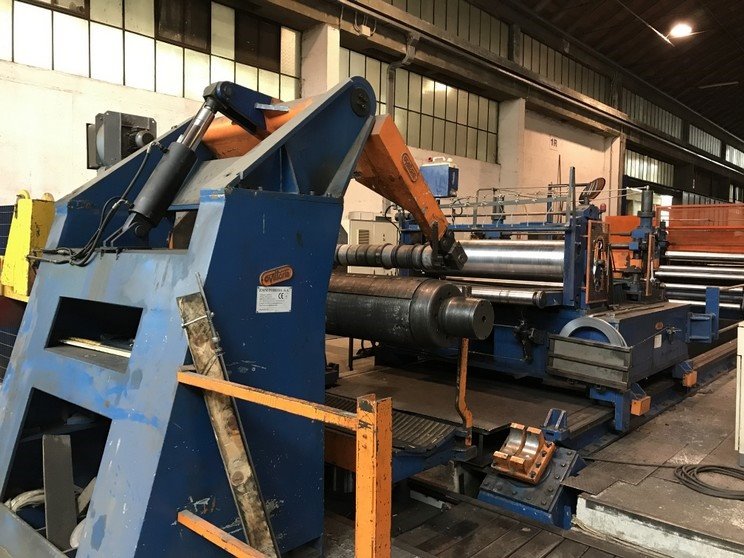

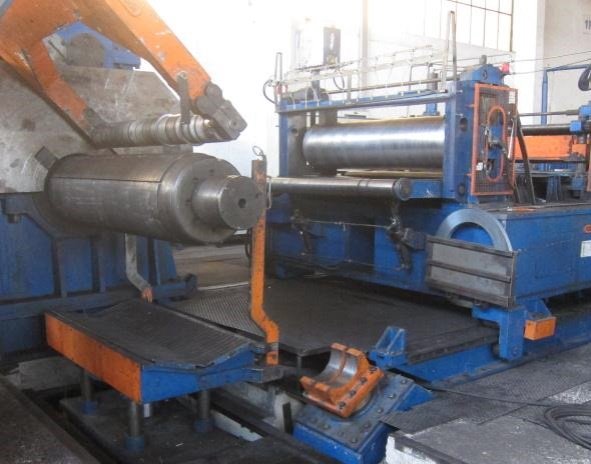

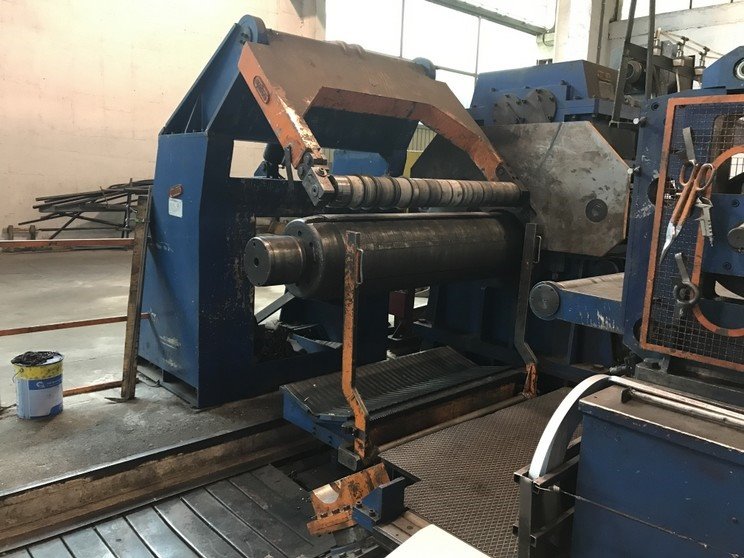

30 Ton Overhung Drum Type Recoiler with Separator Overarm and Coil Push-Off Plate
125 kW DC

Coil Off-Loading Saddle

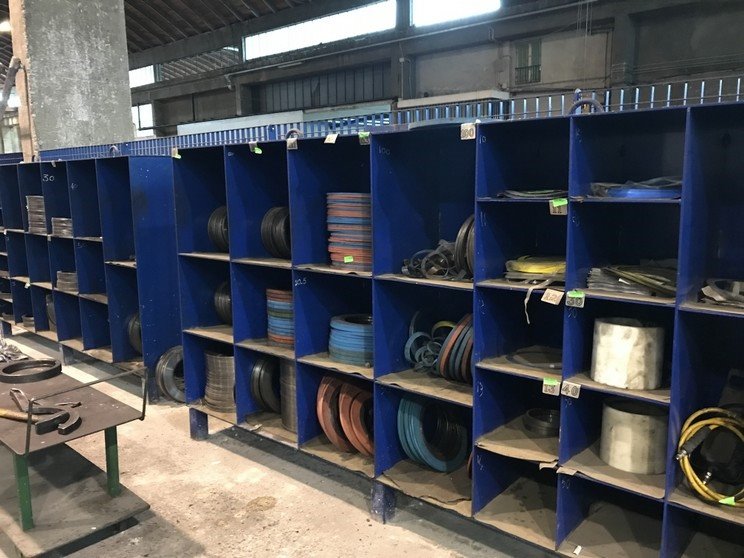

Slitter Tooling Stock





We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
