A 1250mm x 3mm, 90-150m / min used Carbon Steel Loop Slitting Line for sale.

SLITTING LINE

Slitting Line GUIDA Used [#3418]
   Slitting lines SLL  Slitting Line GUIDA Used [#3418]
1

Used Slitting Line
1250mm x 3mm Carbon Steel
GUIDA
FOR SALE

OFFERED SUBJECT TO BEING UNSOLD
  • BEING RE-MANUFACTURED


A 1250mm x 3mm, 90-150m / min used Carbon Steel Loop Slitting Line for sale. Suitable for carbon steel coils. Available ex-stock. BEING COMPLETELY RE-MANUFACTURED AND UPGRADED, WITH BRAND NEW ELECTRICS.

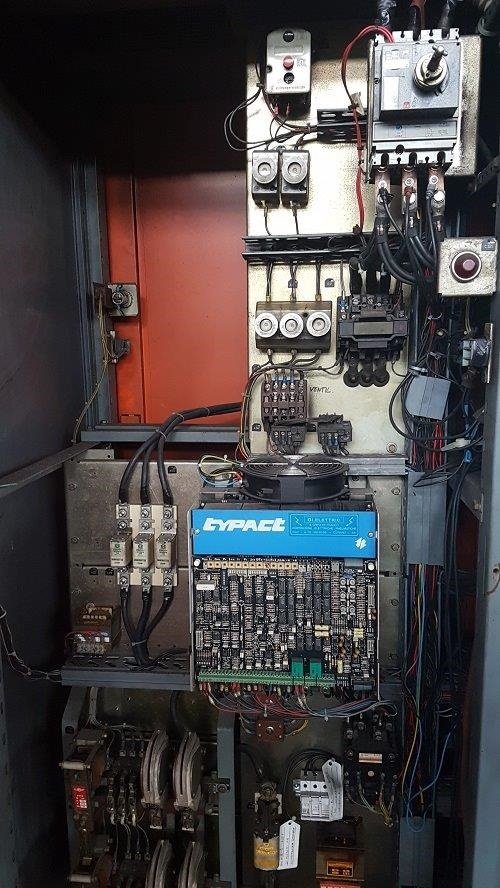

“GUIDA” Brand 1250mm x 3mm, 100m / min used Loop Slitting Line for sale. Suitable for carbon steel coils. Available ex-stock. THE LINE IS BEING COMPLETELY RE-MANUFACTURED AND UPGRADED, BRAND NEW ELECTRICS WILL BE PROVIDED.

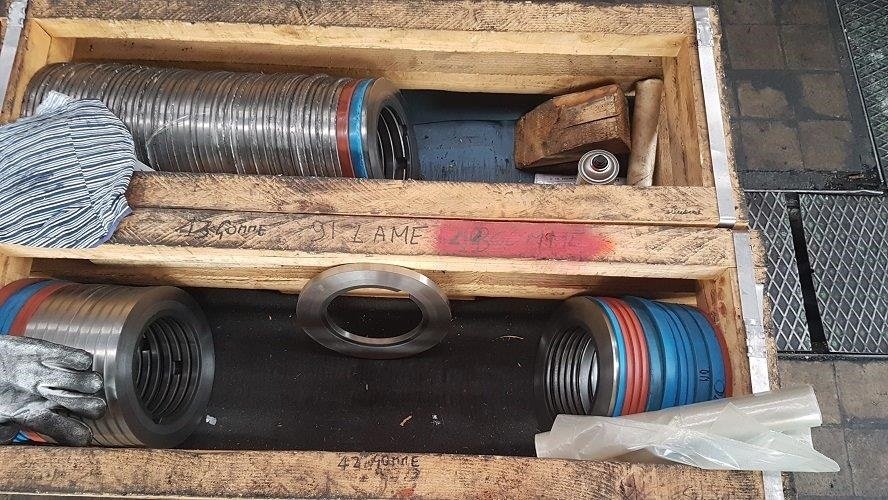

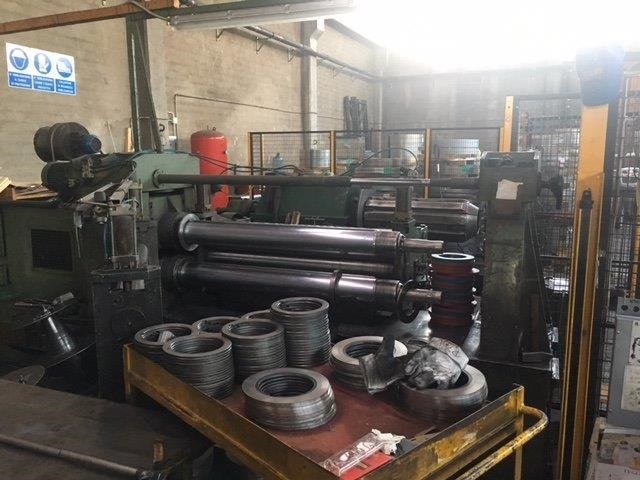

The line speed is 90-150m / minute. Slitter tooling available. --- Very good equipment that will be ‘renewed’ to perfection.






The line main features are:

Coil Max. Weight at Entry and at Exit: 12 Tonne
Minimum Material Thickness: .3mm
Maximum Material Thickness: 3.0mm
Maximum Entry Coil Width: 1250mm
Entry Coil ID: 475—540mm; 575—640mm using steel ‘overtiles’
Minimum Slit Width: 30mm
Max. Number of Cuts at Minimum Material Thickness: 20
Max. Number of Cuts at Maximum Material Thickness: 10
Line Speed: 90-150m / min (with GEARBOX)
Total Installed Power: ca. 100 HP


Description:

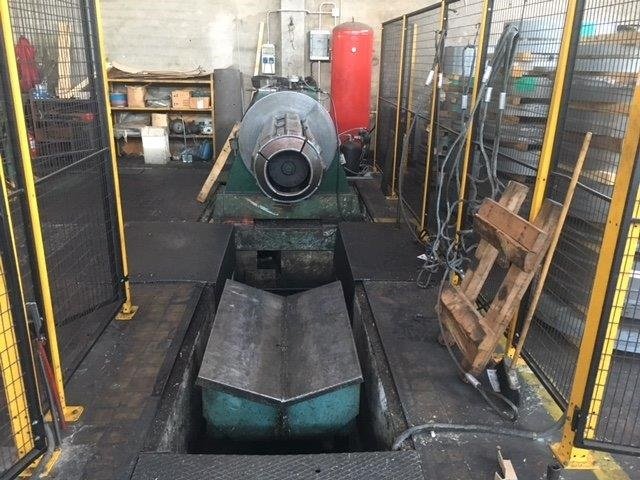

Coil Loading Car with 1500mm horizontal travel, 450mm up/down stroke

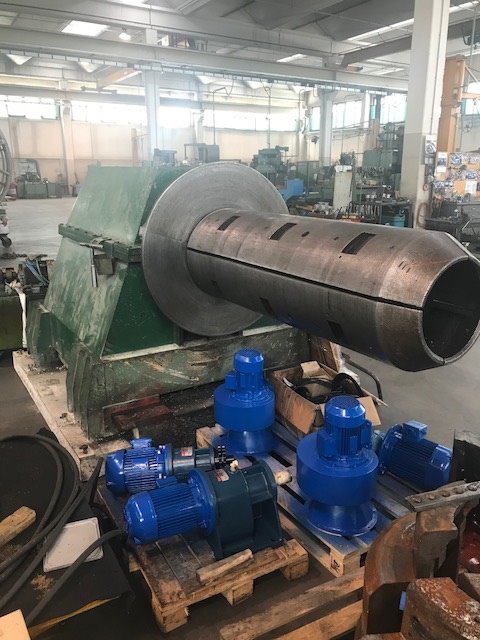

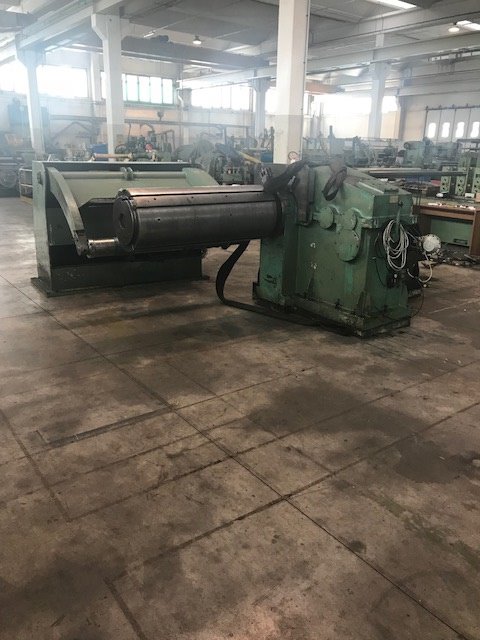

Powered Decoiler with hydraulic drum expansion, mobile base also hydraulically operated, air brake. Reversible
A new Coil Centering System, air-operated, will be added – placed before the slitter entry guide

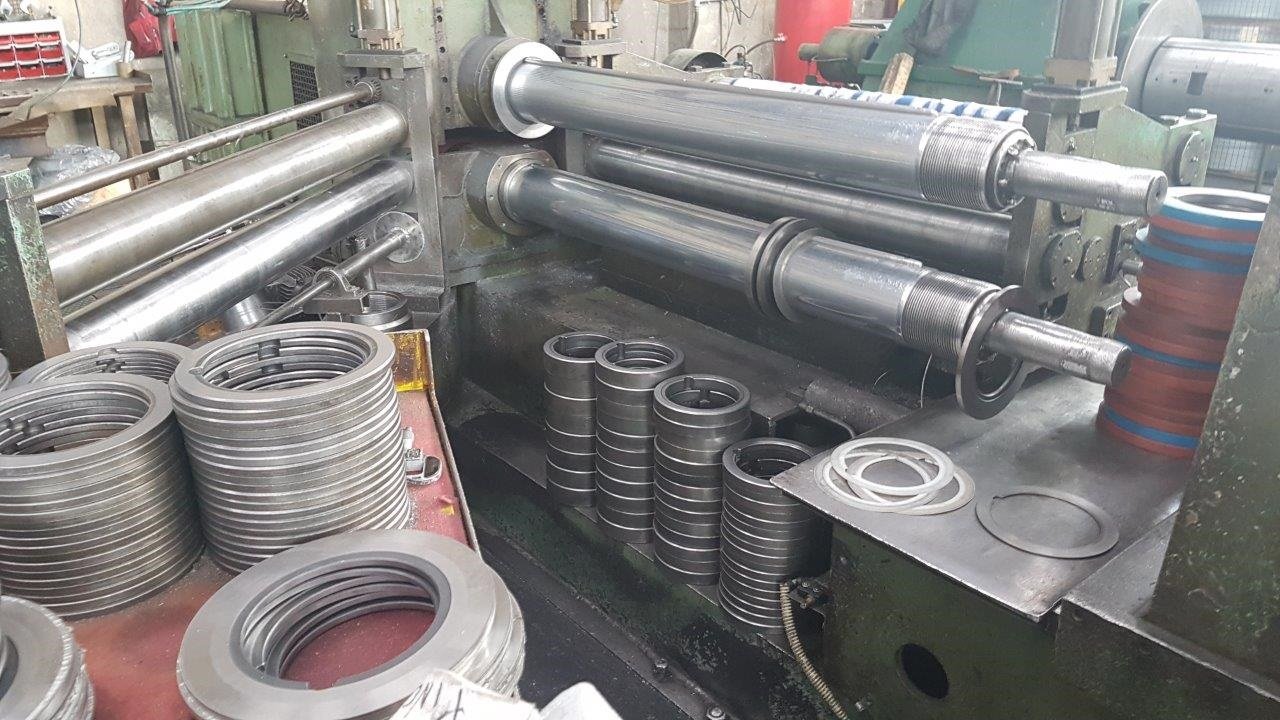

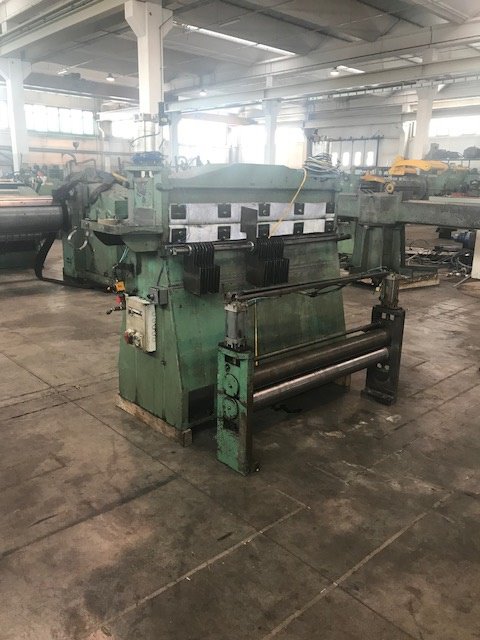

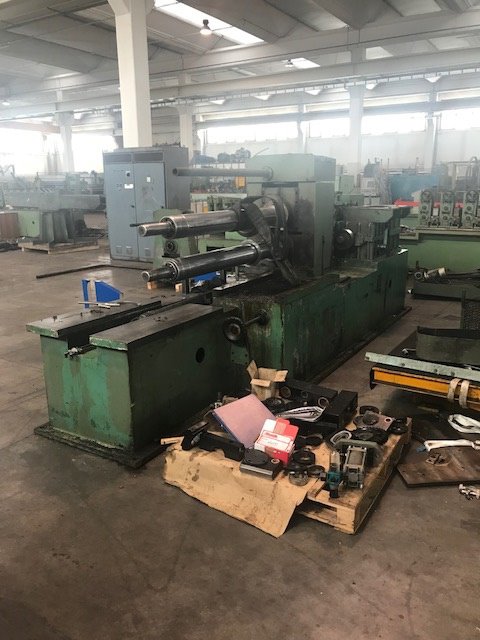

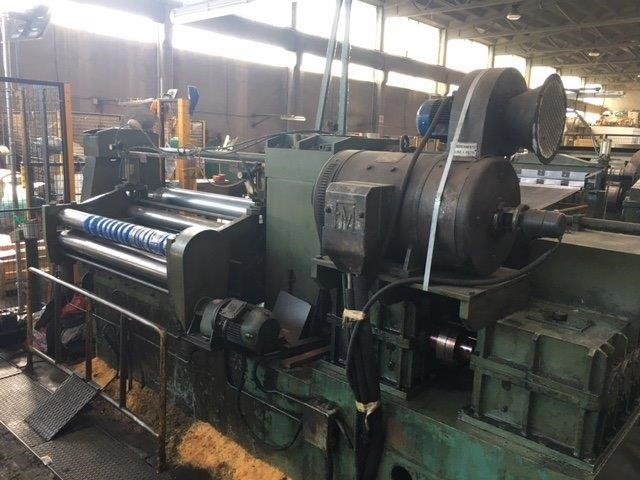

Slitter with dia. 160mm shafts (circular knife OD: 300mm), 50 HP DC motor, hydraulic opening of the mobile slitter stand, electric up/down motion of upper shaft. Entry pinch rolls. Each material guide is independently-adjustable (with a geared motor on one side); the whole guiding unit can ‘manually’ be moved crosswise by a worm screw. Two hardened steel rolls are monted at slitter exit to planish burrs

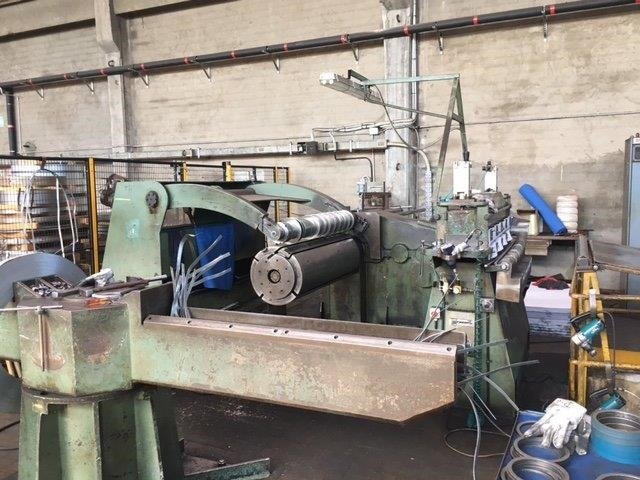

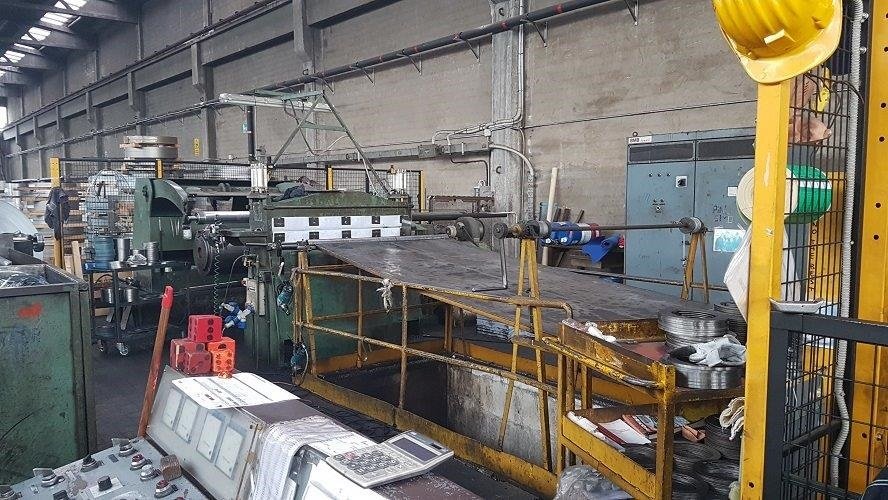

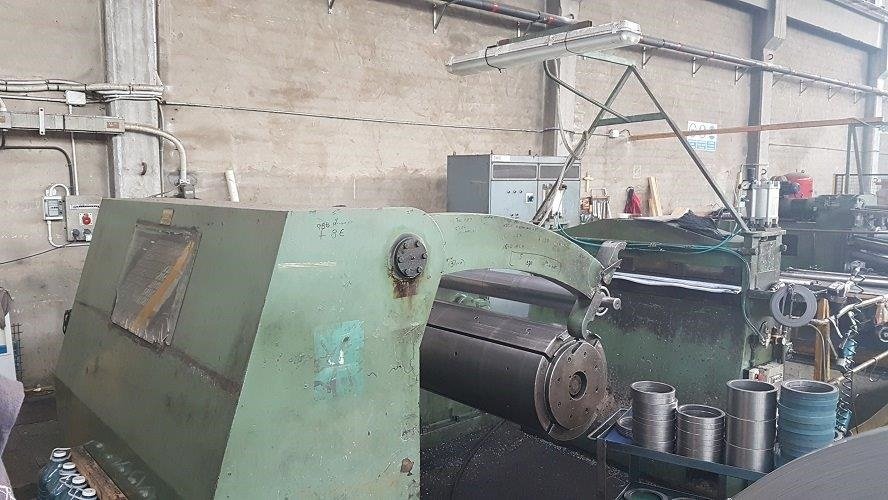

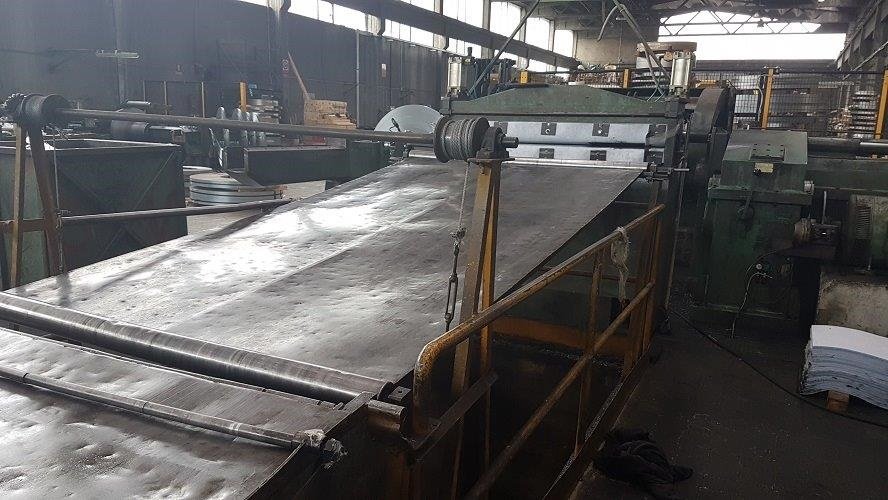

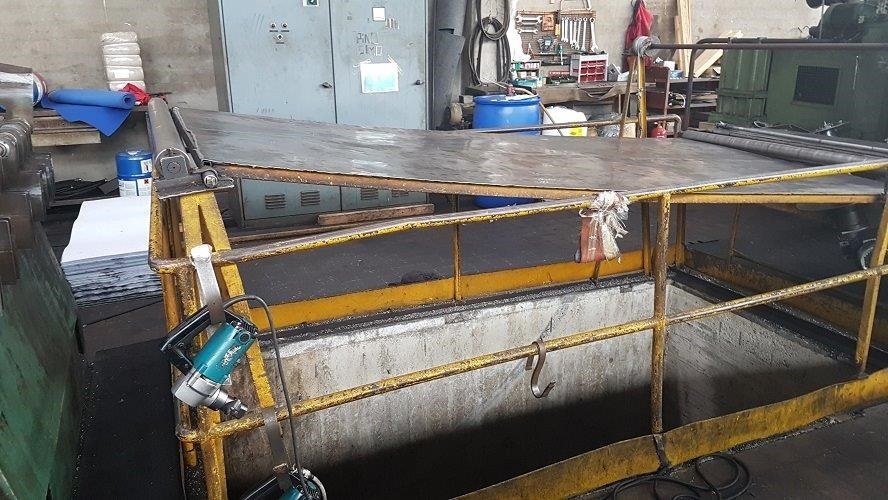

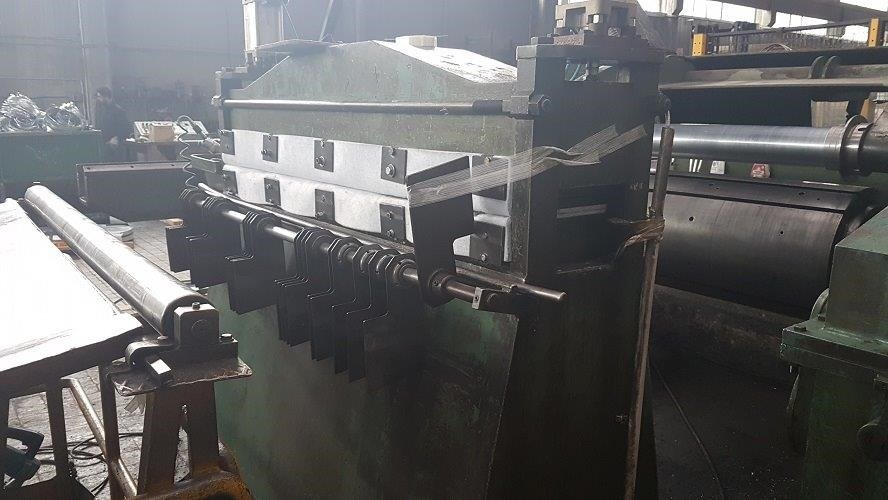

A new Scrap Baler will be built, in lieu of the ‘original’ scrap winders and a new Coil Threading Unit will be built; as well as new: Pit Table (after the Slitter), Deflector roll for the Strip Tension Pad, Quick-Extraction Separator Shaft, Strip Introduction Table before Recoiler and Quadrant Rolls for the loop pit.




Established in 1948, GUIDA IMPIANTI build high-performance slitting lines.
Are ranked among Italy's best coil equipment builders.




We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

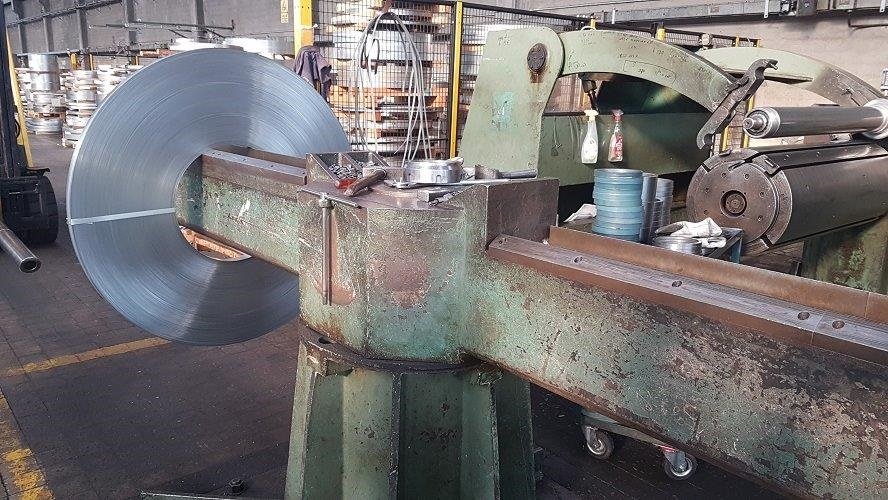

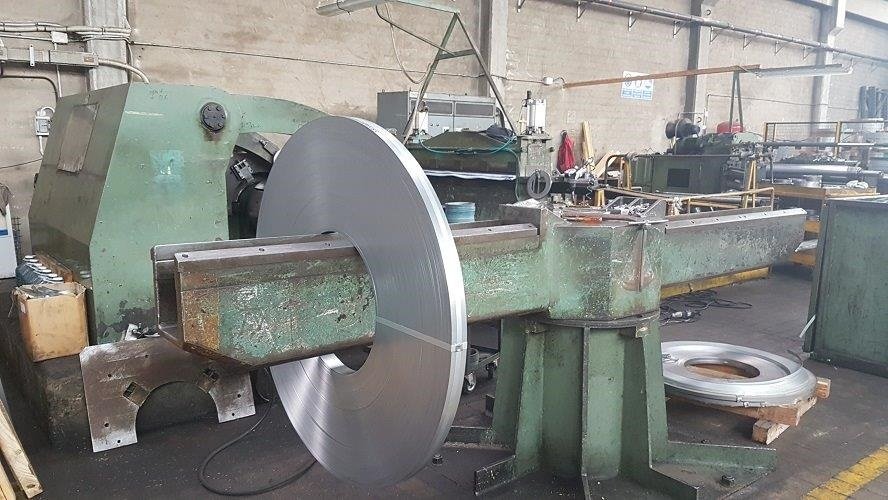

Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
