SLITTING LINE

Slitting Line GASPARINI Used [#3452]
   Slitting lines SLL  Slitting Line GASPARINI Used [#3452]
1

Used Slitting Line
1530mm x 4mm
GASPARINI
FOR SALE

OFFERED SUBJECT TO BEING UNSOLD
  • LOW PRICED
A used 1530mm x 4mm Coil Slitting Line proposed ‘as is’ or fully-revamped at Customer’s choice. 20/15 Ton decoiler/recoiler, speed 100m / minute, line direction left to right. Delivery term: 3-4 month. The manufacturer is GASPARINI of Italy. The line can be inspected at PLANT 2.


Used Coil To Coil Slitting Line, 1530mm x 4mm, proposed ‘as is’ or alt. fully re-manufactured by us. The max. line speed is 100m / min, line direction left to right. The manufacturer is GASPARINI of Italy. Decoiler capacity 20 Ton, recoiler 15 ton. – The line can be inspected at PLANT 2; short delivery (3-4 month) also if to be revamped. --- We offer quality used and re-manufactured coil processing equipment for all steel and non-ferrous material types





General Line Information


- Materials: Cold Rolled, Pickled, Galvanized Steel
- Coil Max. Weight at Entry and, resp. at Exit: 20 Ton / 15 Ton
- Minimum Material Thickness: .5mm
- Maximum Material Thickness: 4.0mm
- Minimum / Maximum Entry Coil Width: 500 / 1530mm
- Entry Coil ID: 400-500-600mm
- Exit Coil ID: 508mm
- Maximum Coil OD: 1500mm
- Minimum Slit Coil Width: 20mm
- Line Max. Speed:100m / min
- Installed Power: ca. 200 kW
- Line Direction: Left To Right




Equipment List


20 Ton Coil Loading Car

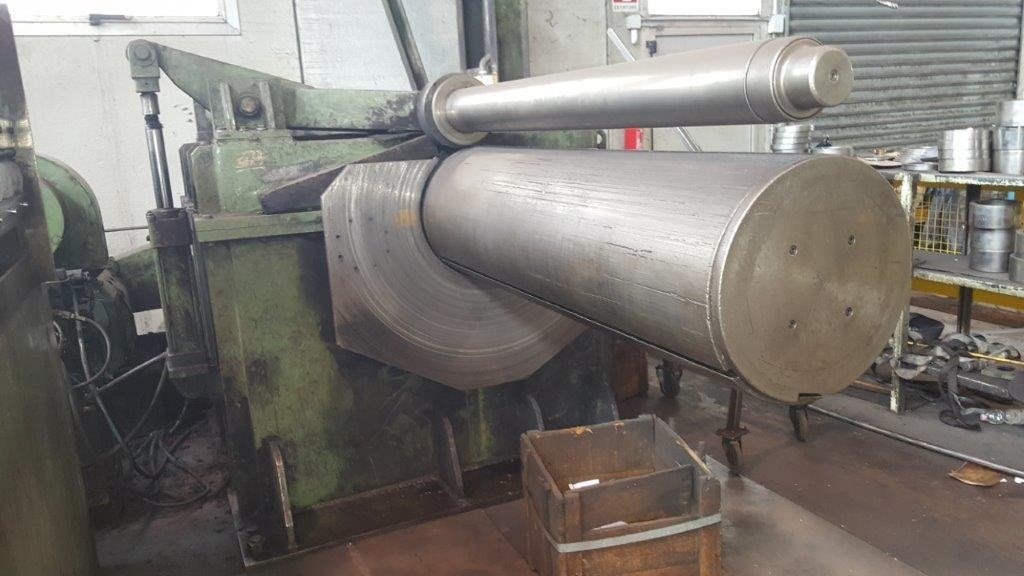

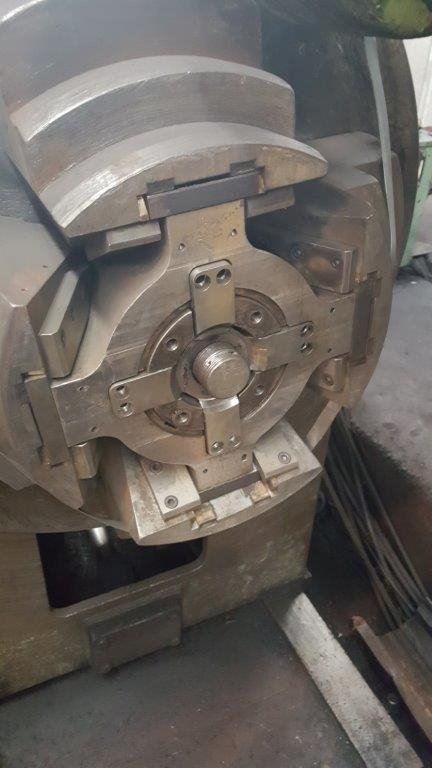

20 Ton Double Opposed Mandrel Type Decoiler
( with ‘stepped’ mandrel drums )

Coil Threading Station with Hold-Down Roll, Pinch Rolls and Telescopic Table

Material Entry Guide

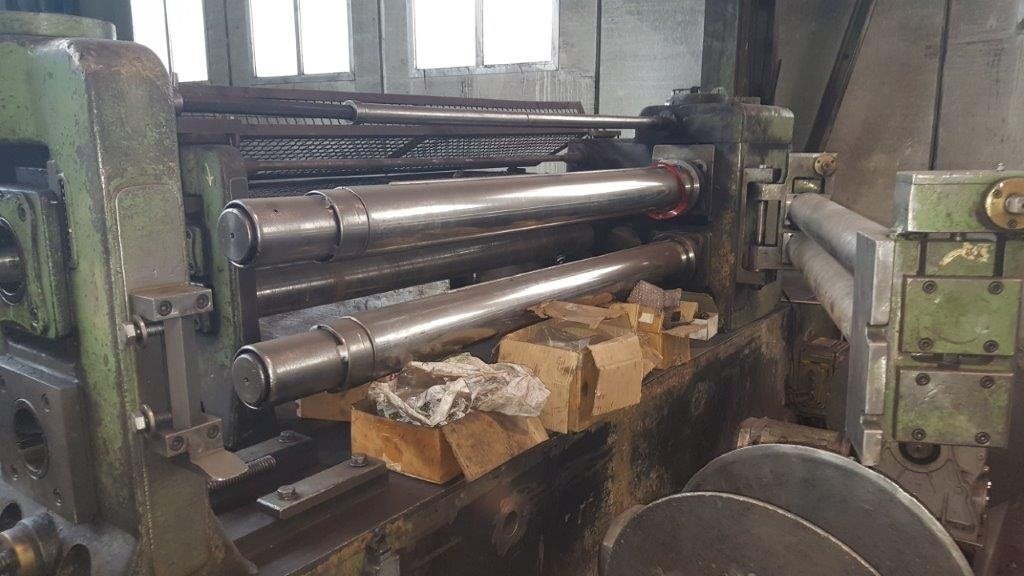

Slitter Head with dia. 160mm Arbors

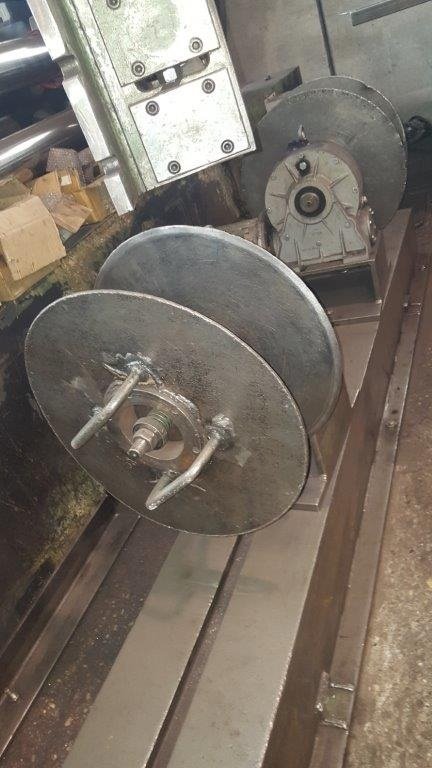

Double-Drum Type Scrap Winders
Roll Saddle & Loop Pit Table




We offer quality Slitting Lines both new and used / re-manufactured for Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,

Your enquiries welcome for also individual Line Parts like: Decoilers, Recoilers, Slitters, Strip Tension Stands, Turnstiles, Upenders ...
PHOTOS & IMAGES
(CLICK TO ENLARGE)
2
3
4
5
6
7
8
