SEMI-AUTOMATIC SAWING MACHINE
Semi-Automatic Sawing Machine F&P New [#5000.7]
1
New Semi-Automatic Sawing Machine
F&P
Semi-Automatic Sawing Machine
Brushless motor, fast tube sawing machine with programmable cutting speed and head rotation. Mitsubishi touch panel; saw RPM max.: 200/minute; dia. 425mm saw. Max. round tube diameter that can be cut: 130mm.
A high quality tube cutoff machine with: up-stroking head; programmable cutting speed and head rotation (+/- 75°); 3.5 kW brushless motor; saw RPM max. 200/minute; vertical and horizontal clamps; Mitsubishi touch panel. Can clean-cut round tubes up to 130mm diameter, with a 425mm max. saw diameter.
A newly-designed semi-automatic tube cutting machine with automated rotation of the cutting head (+/- 75°), programmable from the machine touch panel.

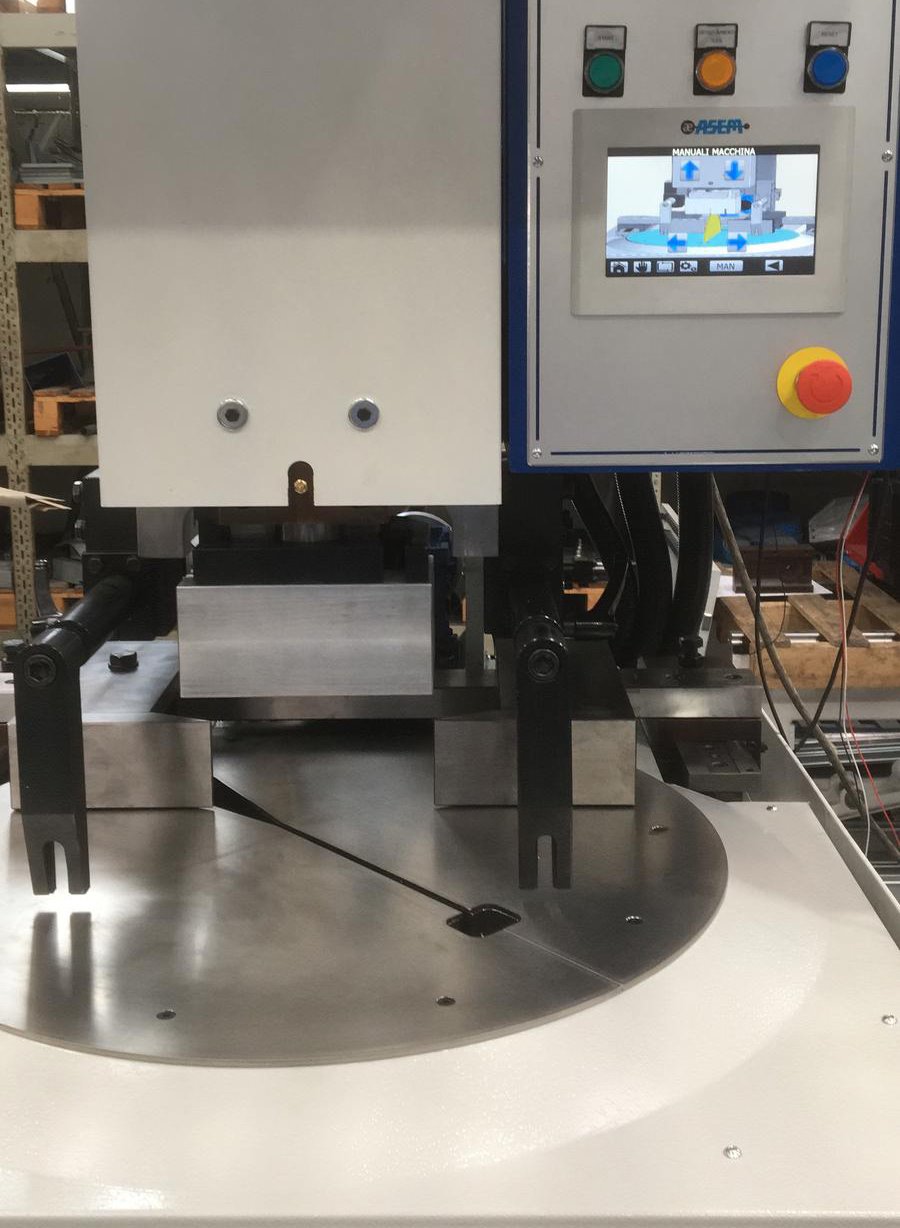

Both vertical and horizontal clamps ensure clean cut of parts.
The up-stroking head is controlled by proportinal valve; with tempered helix gears, has zero-blacklash.
Brushless motor with constant torque and variable speed.

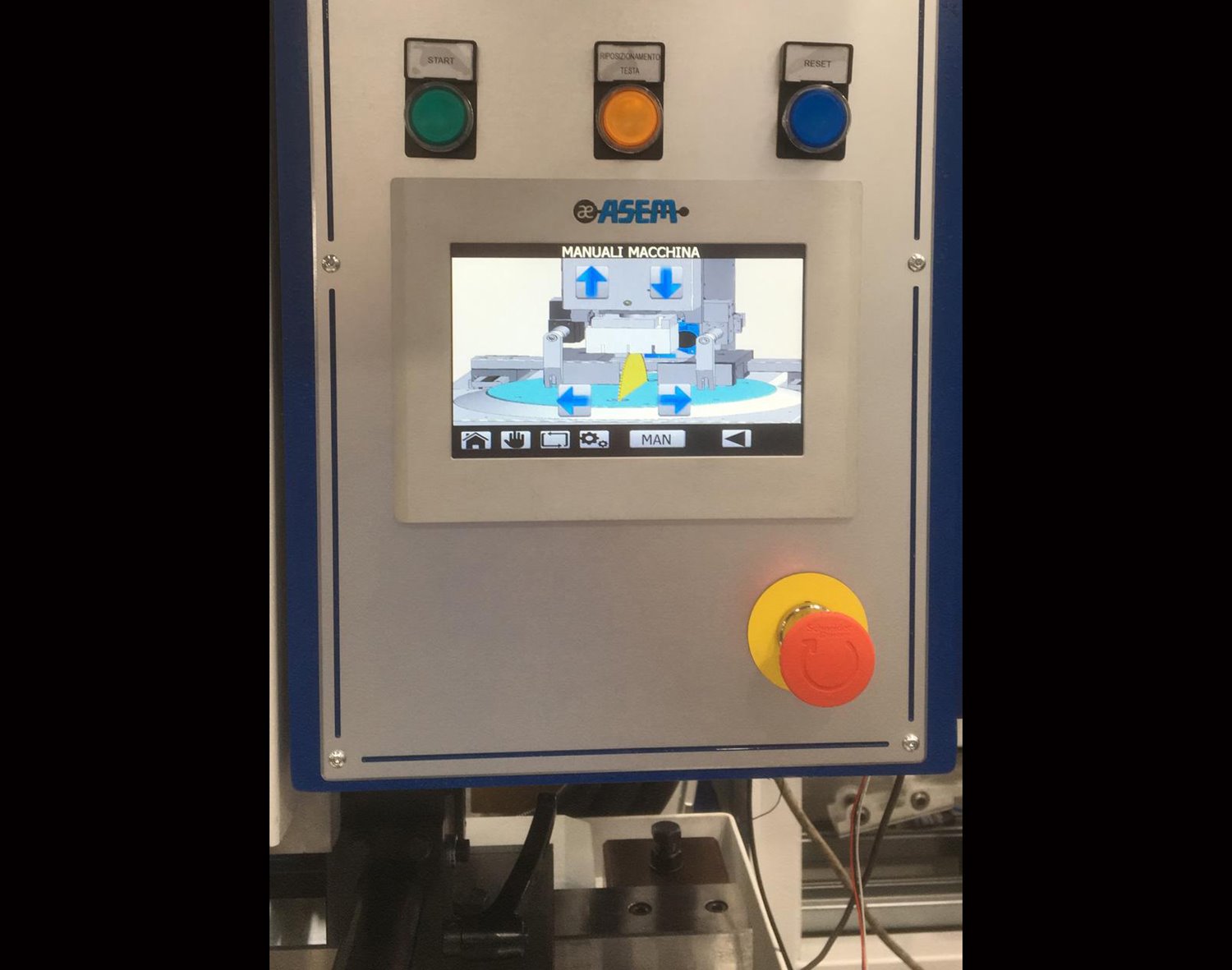

Positioning of head and cutting speed, both controlled from touch panel. The user-friendly Mitsubishi touch panel also allows to program the angle-rotation.
Electronic saw protection.
Max. diameter of saw: 425mm.
Possibility to use TCT or HSS saws.
The access to machine for saw changeover and maintenance is quick and easy.
Motor power: kW 3.5
Saw RPM: 30/200
Vert. clamp force: 500 kg
Automatic rotation: +/-75°
Force of cutting cylinder: 750 kg
Max saw dia.: Ø 425mm
Cutting speed: 10/200m / min
Feeding speed: 0-1,000mm / min
Fast-feed (back movement of saw): 5.7m / min
Machine dimensions (x/y/z): 1450mm x 1000mm x 1760mm
Machine Weight: approx. 900 kg
CUTTING CAPACITY
Straight cut (max. capacity )
Round tubes: dia. 130mm
Square tubes: 120mm x 120mm
Rectangular tubes: 270mm x 200mm

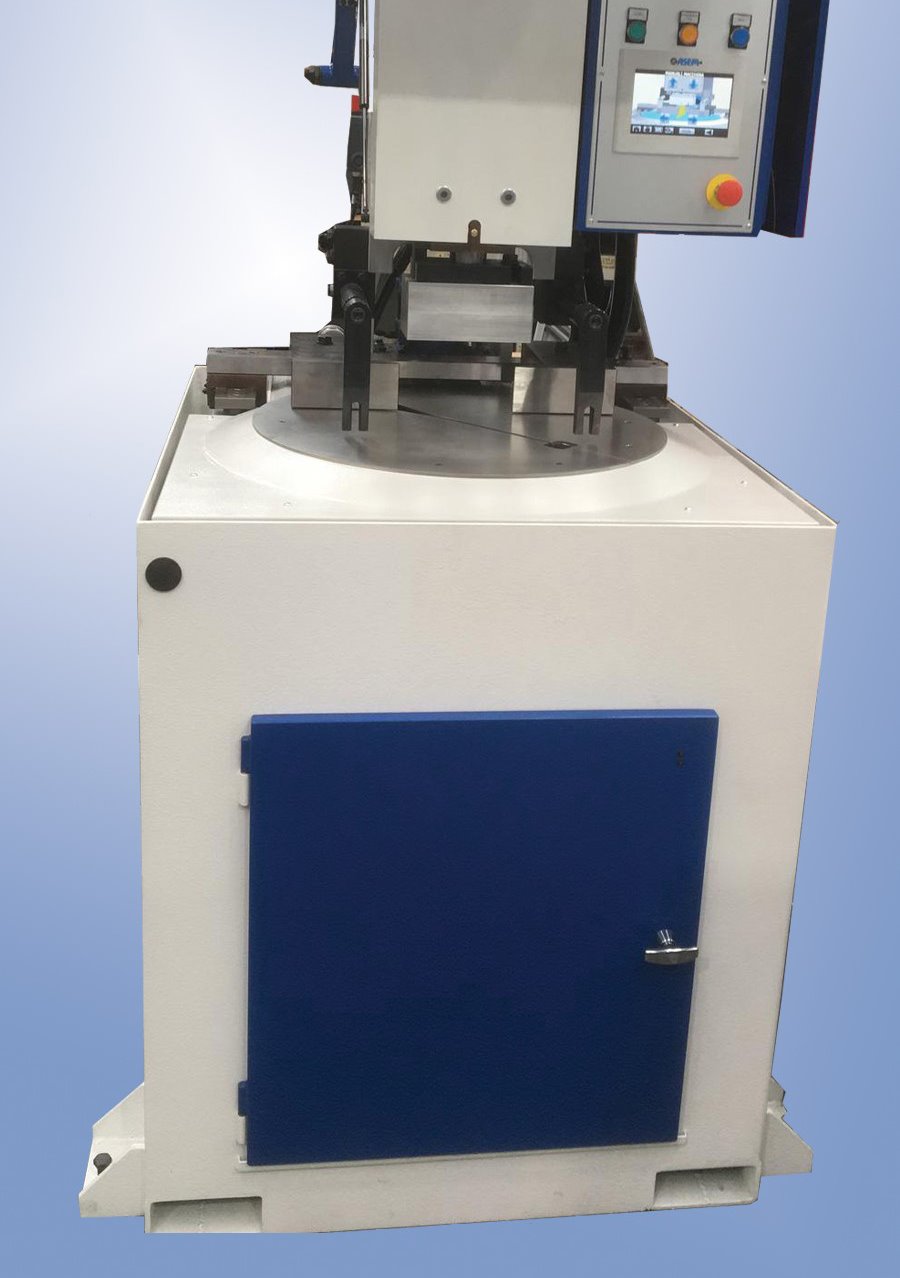

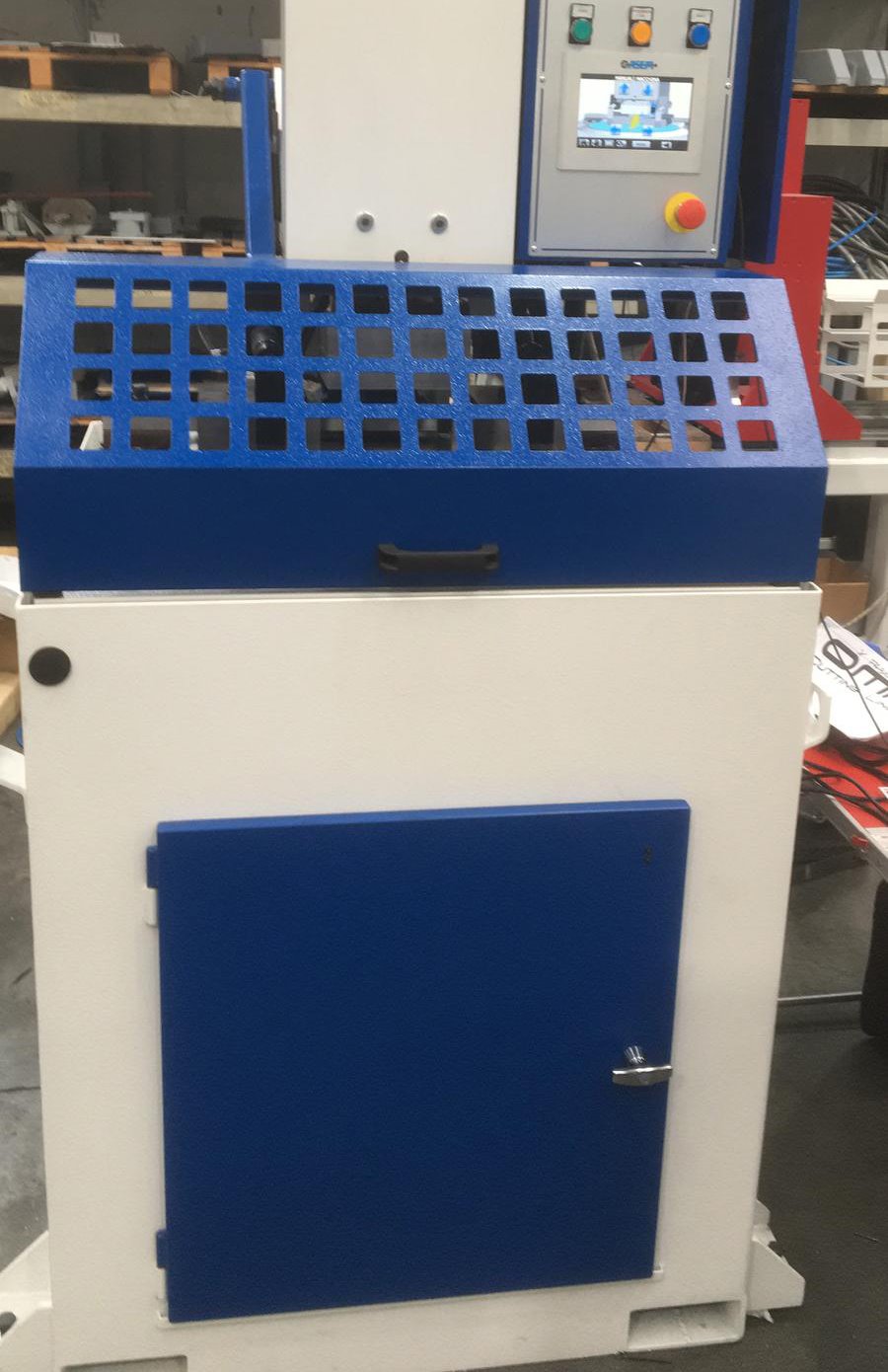

PHOTOS & IMAGES
