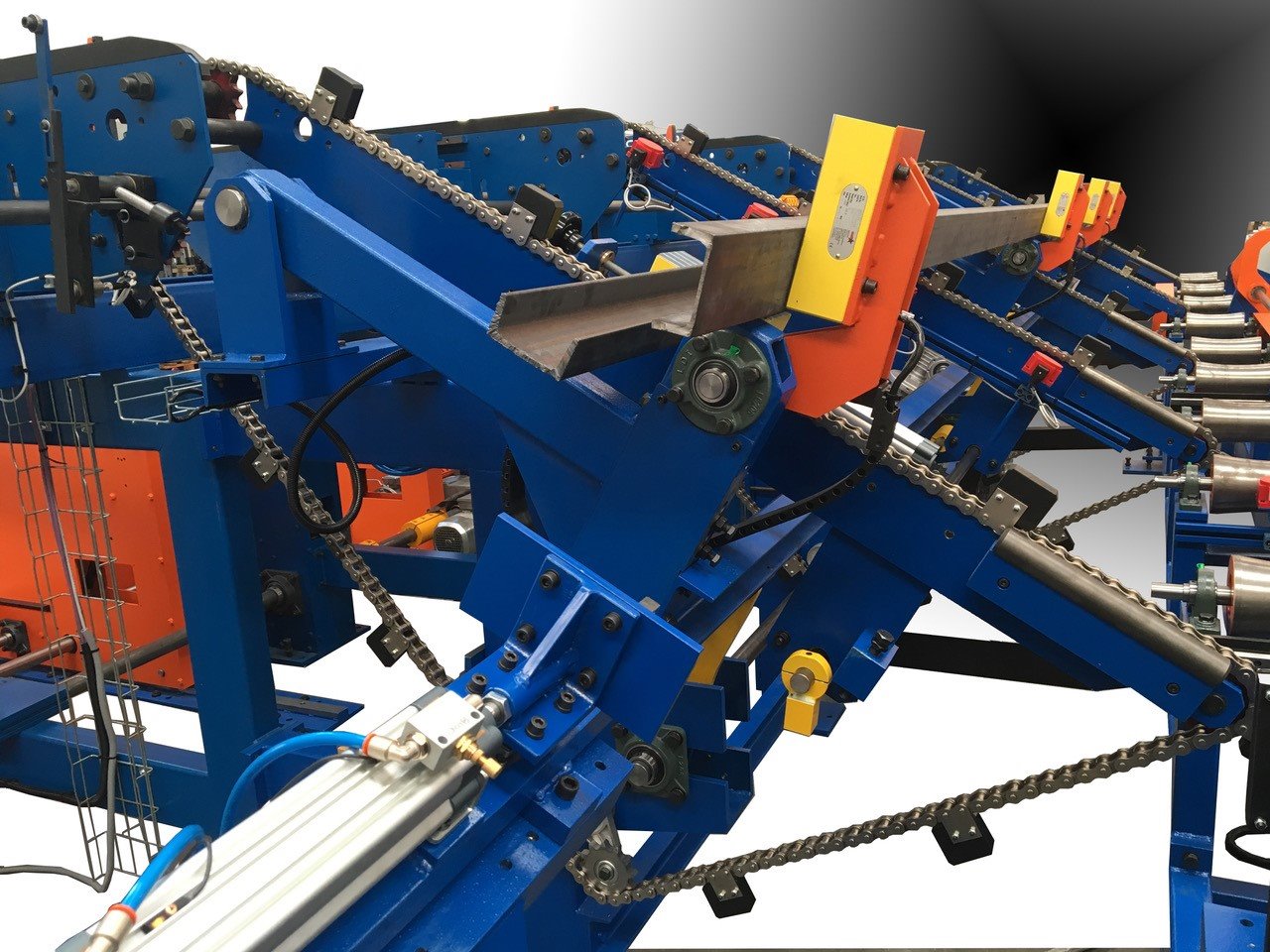

![Tube Packaging Systems Tube Handling & Packaging Systems FLOREANI & P. New [#5000.6]](TUBE-BUNDLING-SYSTEMS3.jpg "Tube Packaging Systems Tube Handling & Packaging Systems FLOREANI & P. New [#5000.6] Tube Packaging Systems")
1
New Tube Handling & Packaging Systems
FLOREANI & P.
BUILD TO ORDER CUSTOM DESIGNED
VERY EFFICIENT TUBE & SECTION BUNDLING SYSTEMS BY FLOREANI & PARTNERS.
GENERALLY CUSTOMIZED, THEY MAY INCLUDE: TUBE SCARFING UNITS, BUNDLE STRAPPING EQUIPMENT, A WATER DRAINAGE SYSTEM, WEIGHING CELLS, A SCRAP BLOW-AWAY & CHOP SYSTEM… AND OTHER OPTIONAL EQUIPMENT.
HEXAGONAL, SQUARE AND RECTANGULAR BUNDLES CAN BE FORMED.
AUTOMATIC TUBE BUNDLING SYSTEMS DESIGNED FOR MAXIMUM EFFICIENCY: GENERALLY CUSTOMIZED, MAY INCLUDE TUBE SCARFING, STRAPPING, WATER DRAINAGE, WEIGHING, SCRAP BLOW-AWAY & CHOPPING… SYSTEMS
- THEY COMPLEMENT OUR EXCELLENT MULTI-HEAD TUBE CUTTING EQUIPMENT AND OTHER TUBE MILL MACHINERY

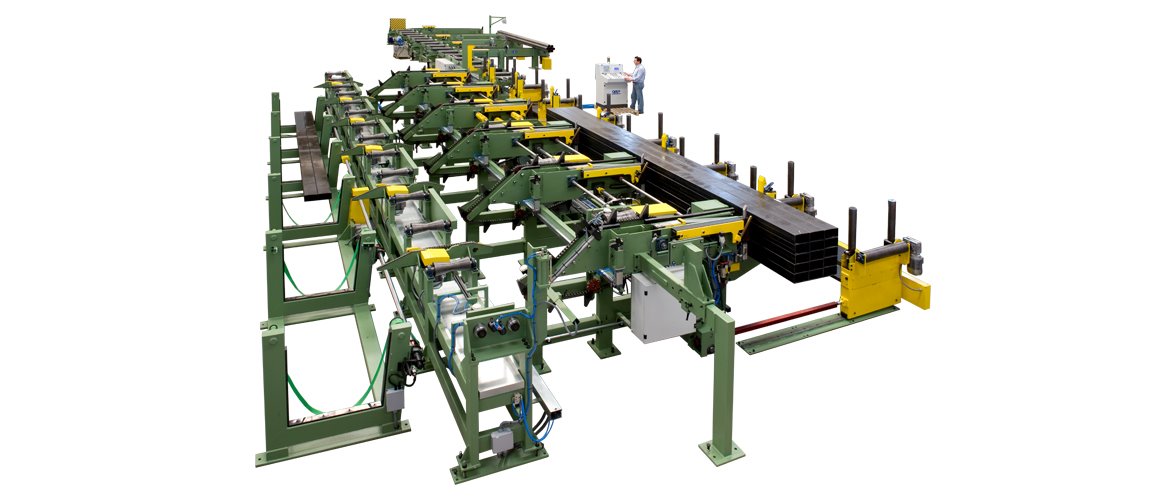

TUBE & SECTION BUNDLING SYSTEMS
Typically these Systems can handle tubes as follows, with wall thicknesses from 2mm to 8mm:
round section tubes
ø 76,2 → ø 219,1mm
square section tubes
60 → 175mm
rectangular section tubes
80 x 40 → 250 x 100mm
… the max. bundle weight being 3500 kg, with these dimensions:
-for round section tubes
min 250 x 250mm / max 700 x 600mm
(hex min 175mm / hex max 350mm)
-for square section tubes
min 250 x 250mm
max 700 x 600mm
-for rectangular section tubes
min 250 x 250mm
max 700 x 600mm
Hexagonal, square and rectangular bundles can be formed.
In most cases much customized, the Systems often include:
- fixed or variable geometry entry roll tables
- tube scarfing units
- manual or automatic strapping equipment
- post-strapping bundle handling chain-conveyors, frontal and lateral off-loaders
- a water drainage system
- a bundle weighing cell with data printer
- touch screen type programming station
- a wooden spacer dispenser (for square bundles of round section tubes)
- a scrap blow-away & chop system
..…
To REQUEST QUOTATION: > please see Attachs.
Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.
We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.
