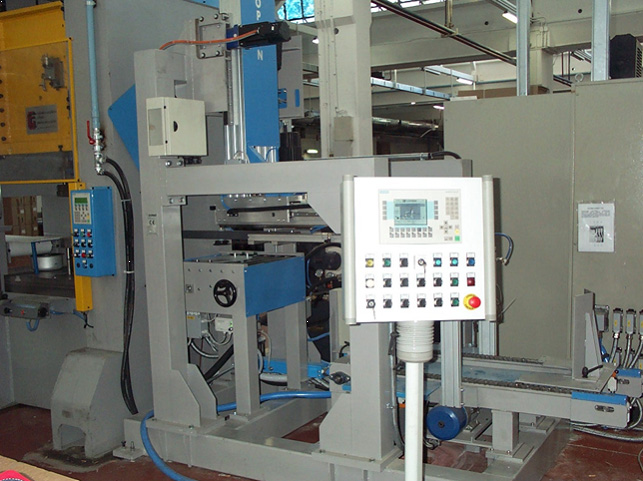

New Alu. Disc Feed & Lubricate System
up to Ø 450mm x 4mm
FLOREANI & P.
BUILD TO ORDER CUSTOM DESIGNED

  • Auto. Disc De-Stacker
  • Pick-&-Place Unit
  • Spray Lubricator



For this automatic disc feeding system -for aluminium discs up to Ø 450mm x 4mm - 20 cycles/minute are possible.


Some 'details' to remark in the system, are:
- electronic synchronization with the encoder on the press
- in-cycle "X" and "Y" axes of the pick-and-place unit
- performance optimization
- electronic cams



EQUIPMENT DESCRIPTION


Disc De-Stacker

TECHNICAL DATA:

the disc max. diameter is 450mm^
the disc min. diameter is 220mm
the max. stack height is 450mm
the max. material thickness is 4mm^

allsteel machine mainframe
lifting of discs by electro-jack, with photo-electric control of the stack-level
storage capacity ca. 10 discs
belt or chain conveyor for automatic stack changeover
irregular-thickness electronic detector
cables and connectors - 5m
SIEMENS S7 PLC installed in the main control cabinet


Powered Roll Table with parts-centering station

TECHNICAL DATA:

the table length is 800mm
the table width is 600mm
the max. weight on the table is 15 kg
the motion max. speed is 12m /min
a centering station with manual adjustment is provided

allsteel table frame
diameter of powered rolls: 50mm
asynchronous brake motor, 1/2 HP power
part-presence sensor


Pick-&-Place Unit

TECHNICAL DATA:

the horizontal axis stroke is 1000mm, programmable
the vertical axis stroke is 300mm, programmable
the absolute encoders are: synchronous type ENDAT
a vacuum head with suction cups is used for picking the discs up

allsteel machine mainframe
the horizontal & vertical axis modules are with aluminum profiles
the transmission is of belt-drive type
hardened steel guides with ball bearing slides
"Venturi" type vacuum generator in loop
electronic vacuum switch
synchronous operation with electronic cams
Bosch/Siemens equipment for the synchronous motor and axes management
SIEMENS S7 PLC complete with OP HMI devices






Other press automation equipment types that we build are shown in the #2187 above.
Please see also Sections: Automation Equipment & Special Machines and New Custom Built Press Feeding Lines (in: Other / Specialty Equipment Types).


In the past 30 years the nature of manufacturing has very much changed.
Automation has become a must; it allows for producing with repeatability and quality and is now a key-factor for competitiveness.
The general advantages of automation are: reduction in production time = higher volumes; accuracy and less human error; less costs for employees; increased safety...

For the pressroom automation we offer high quality Custom strip feeding equipment, shear-welders, scrap choppers, strip and blank lubrication systems, pick-&-place and robotic systems, transfer feeds and various other press ancillary equipment.
Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.

We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.
