TRAPEZOIDAL SHEET LINES
Trapezoidal Sheet Lines FLOREANI & PARTNERS New [#5054]
1
New Trapezoidal Sheet Lines
STANDARD RANGE - Stop/Start Type
FLOREANI & PARTNERS
(* Flying Shear Option available)
Trapezoidal or Corrugated Sheet Lines
This range is for .45mm-1.00mm material thickness and for:
- max. 50mm-high sections
- coils up to 1250mm wide
The speed is up to 40m / min
Standard paints:
RAL 5015 Blue
RAL 9005 Black the machine covers
(Custom paints available on demand)
EQUIPMENT & TOOLING DESCRIPTIONS

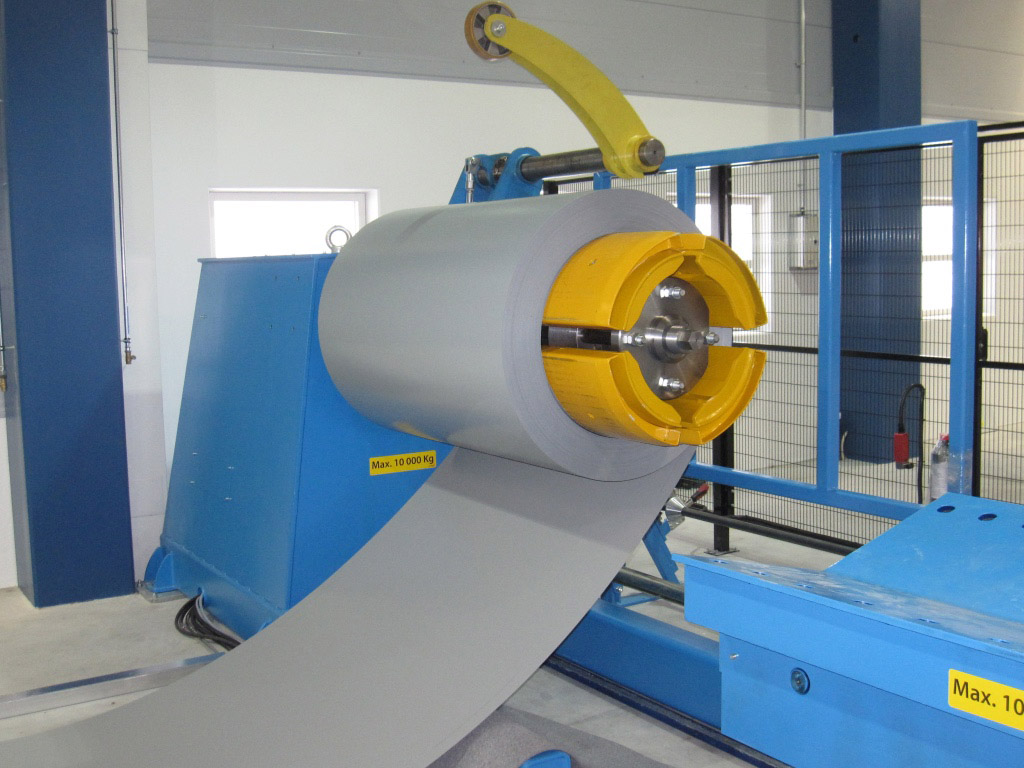

Decoiler -- Models:
for 6 / 8 / 10 & 15 t coil weight
powered
hydraulic expansion of mandrel
ultrasonic sensor for loop control

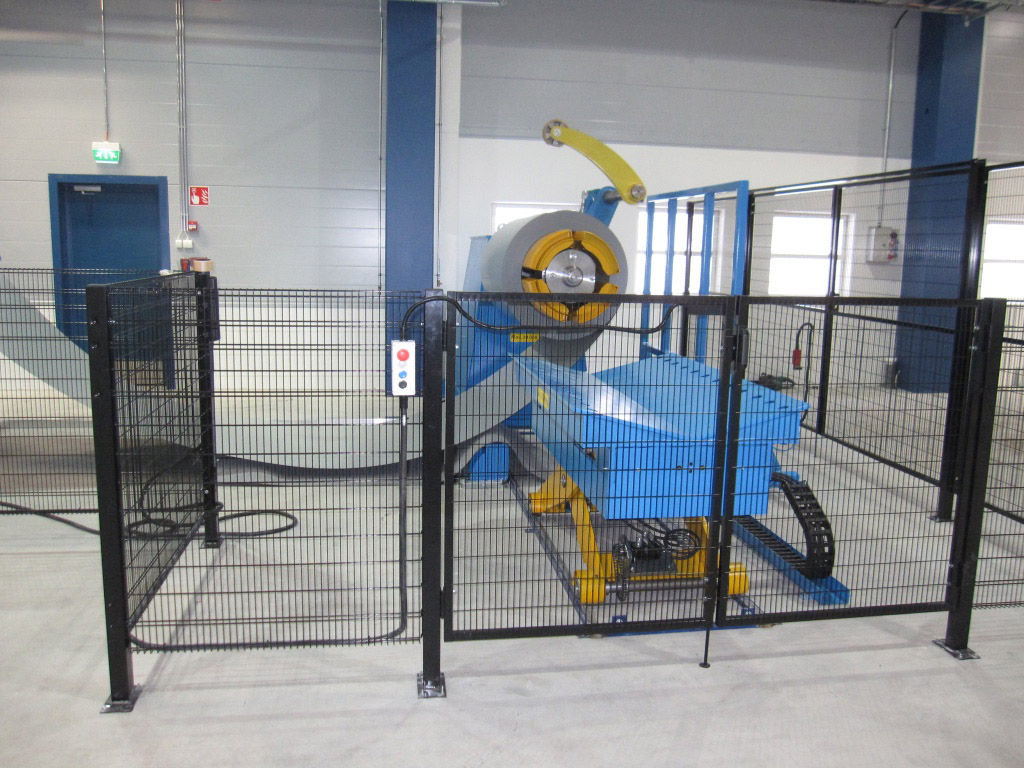

Coil Car -- Models:
for 6 / 8 / 10 & 15 t coil weight
hydraulic lifting

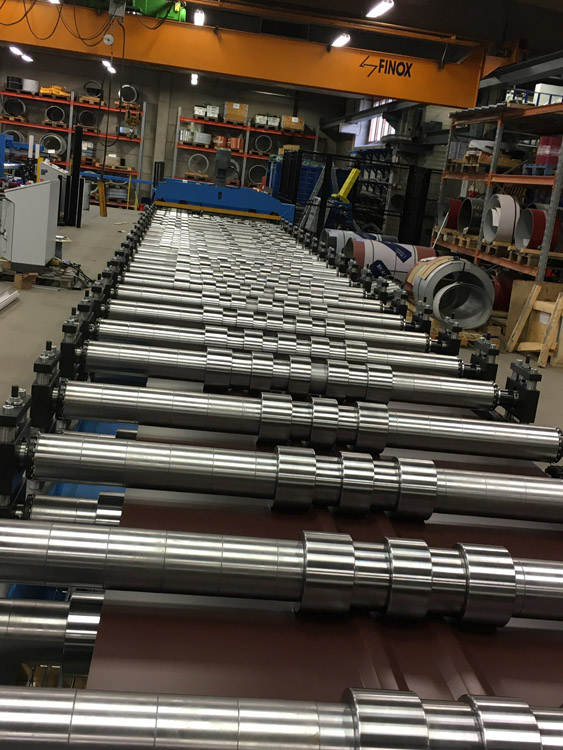

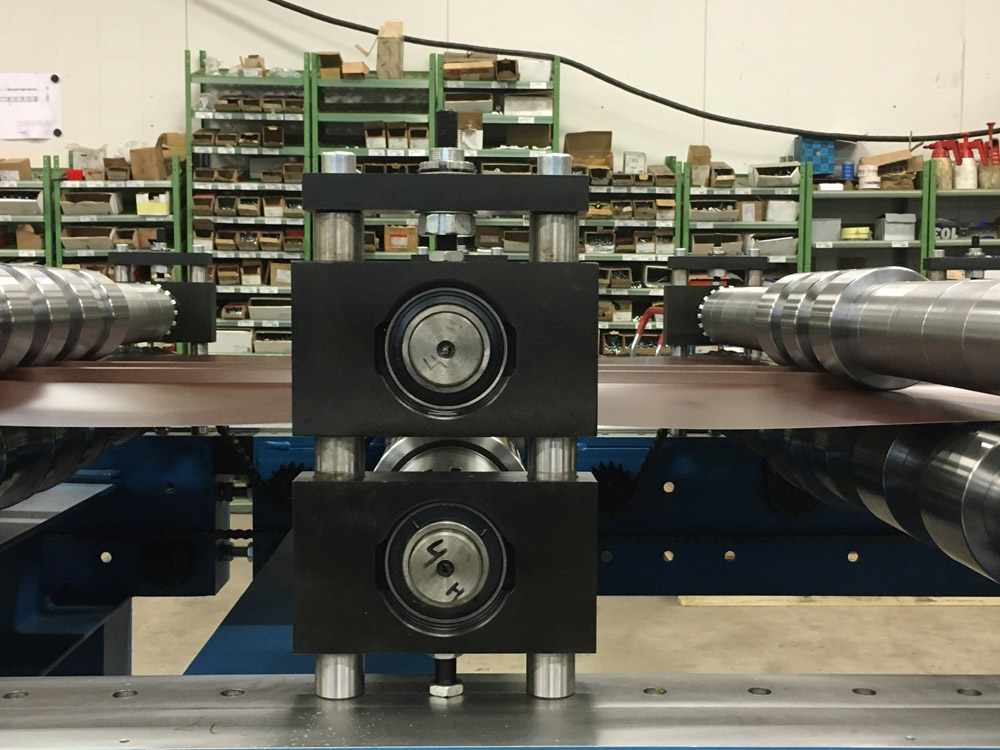

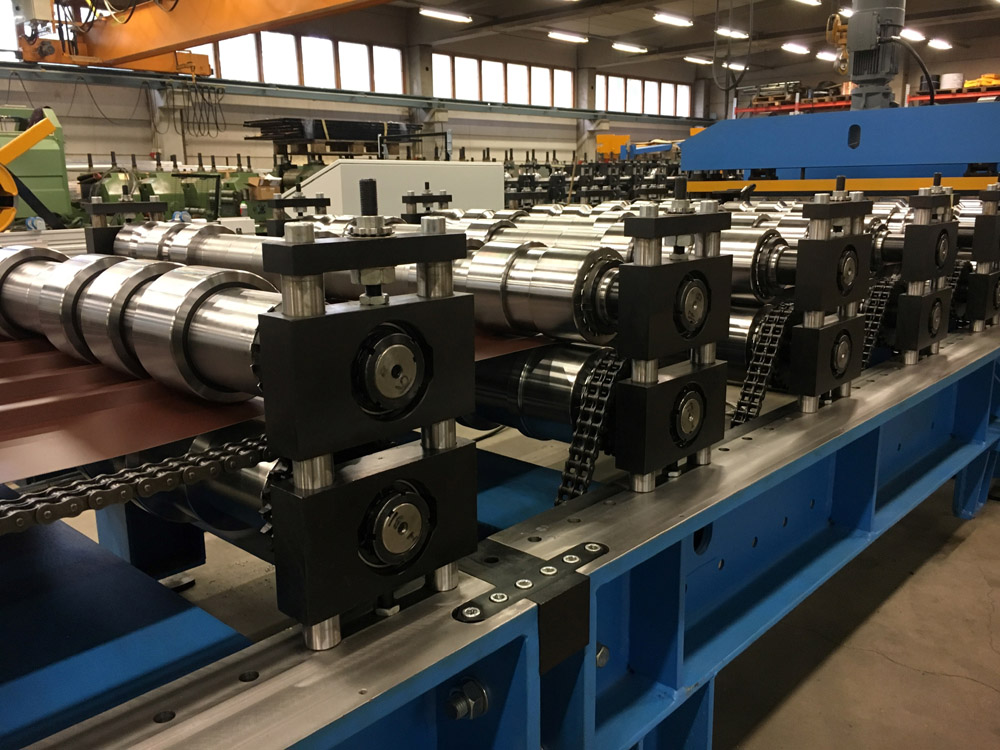

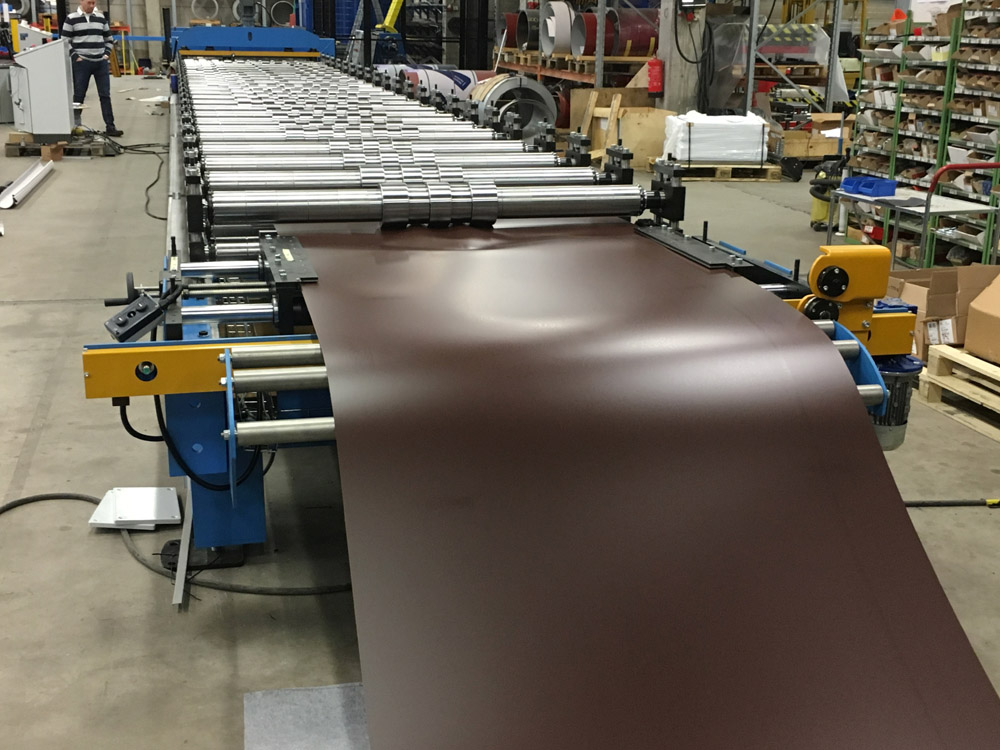

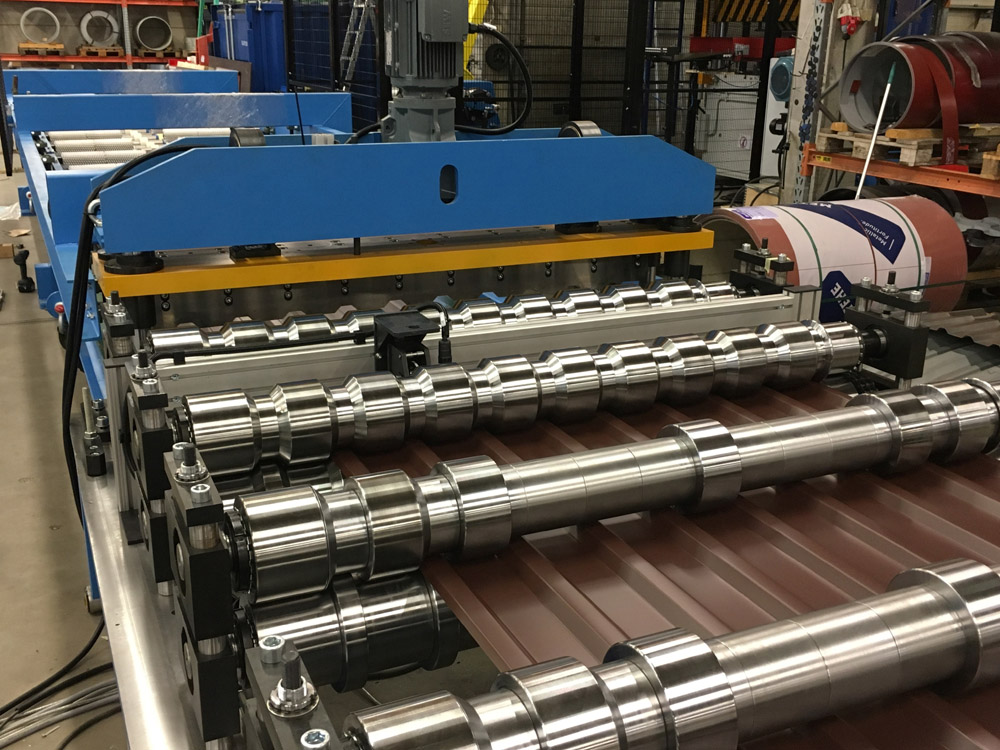

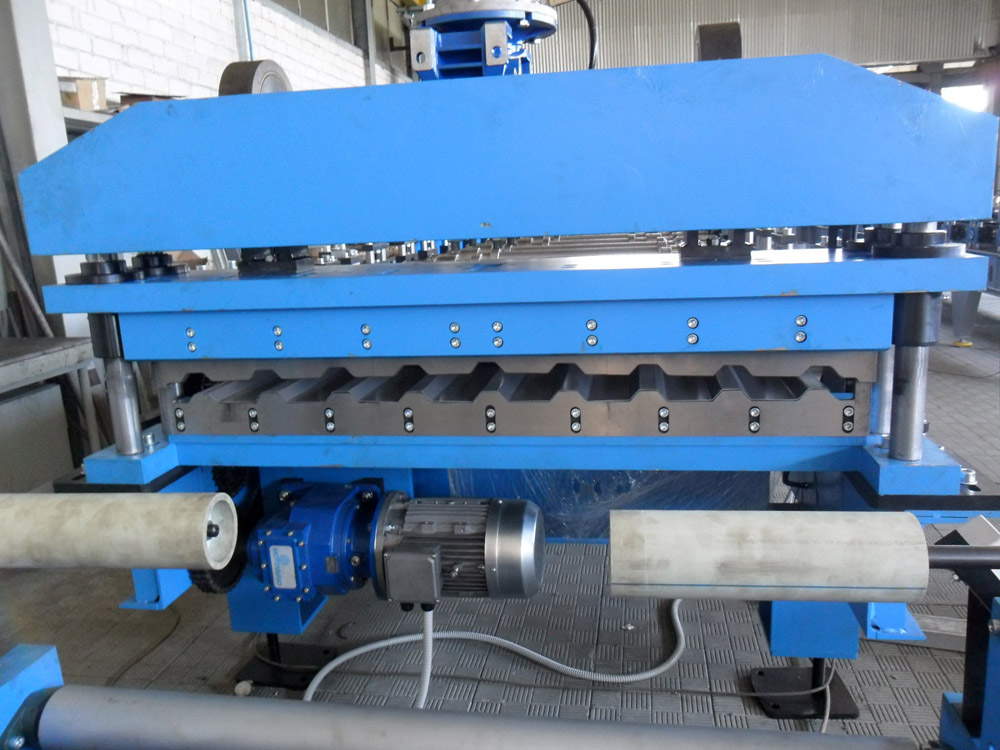

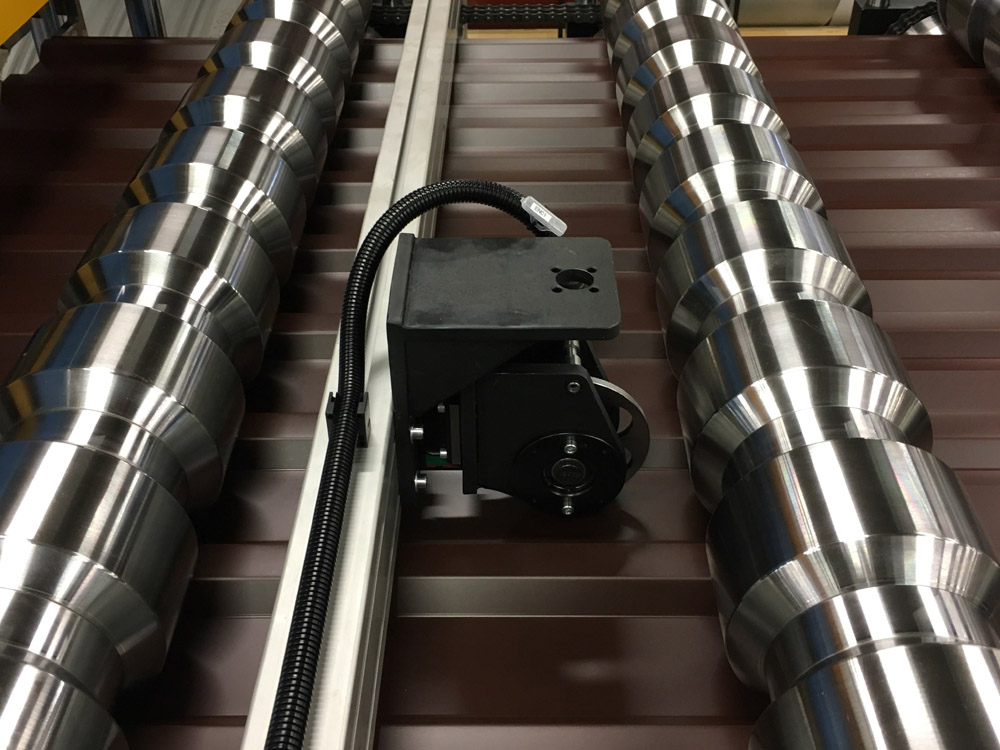

Roll Former

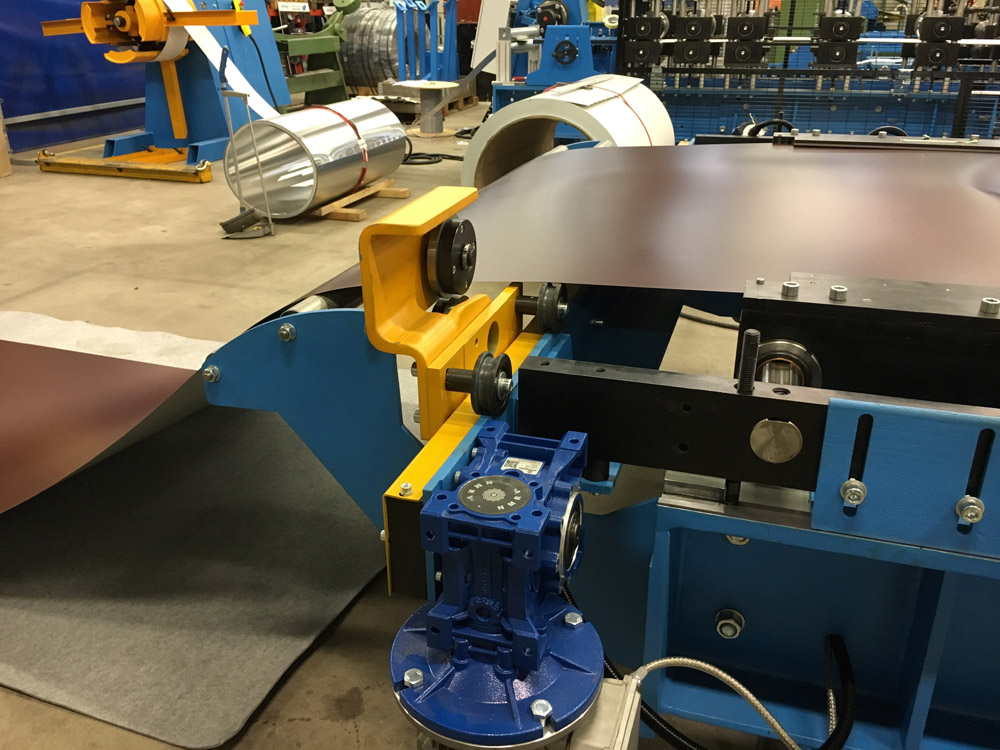

width adjustable material entry guide
number of Stations: 20-26, depending on profile geometry

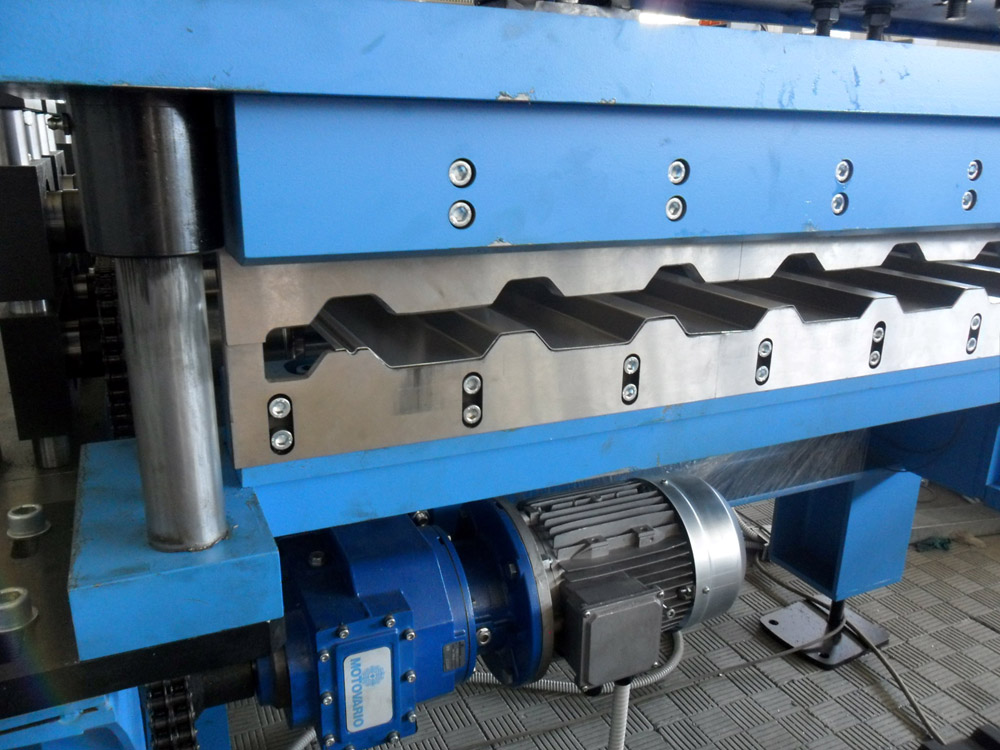

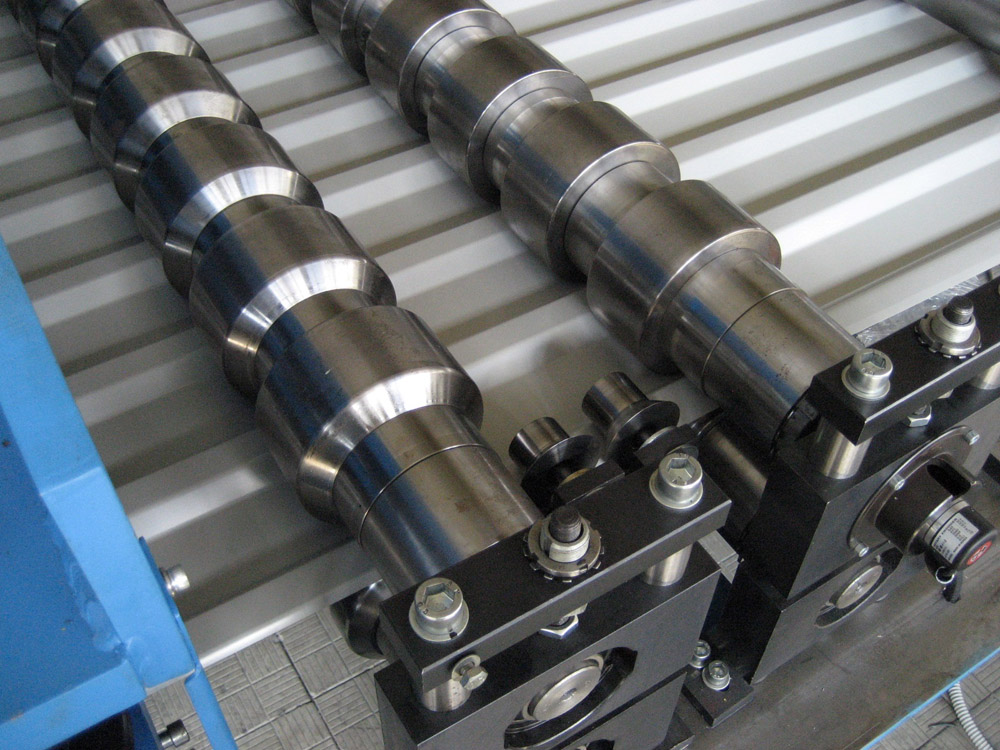

Roll Tooling in heat-treated toolsteel

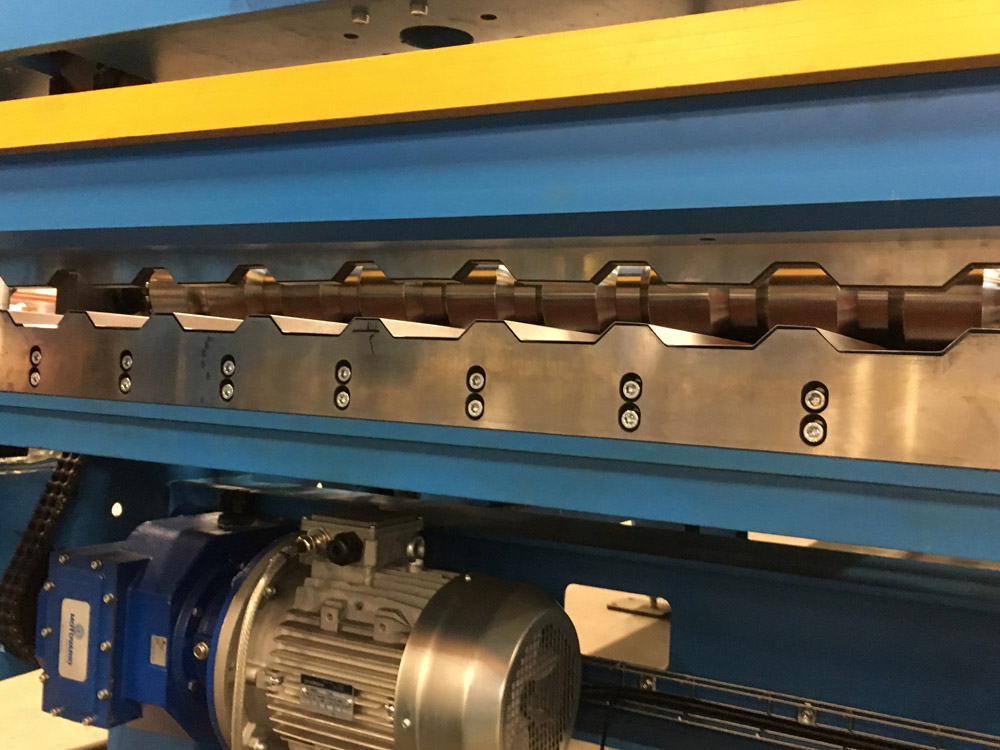

Static Post-Cut Shear
eccentric with 2.2 kW motor
Shaped Cutoff Blades

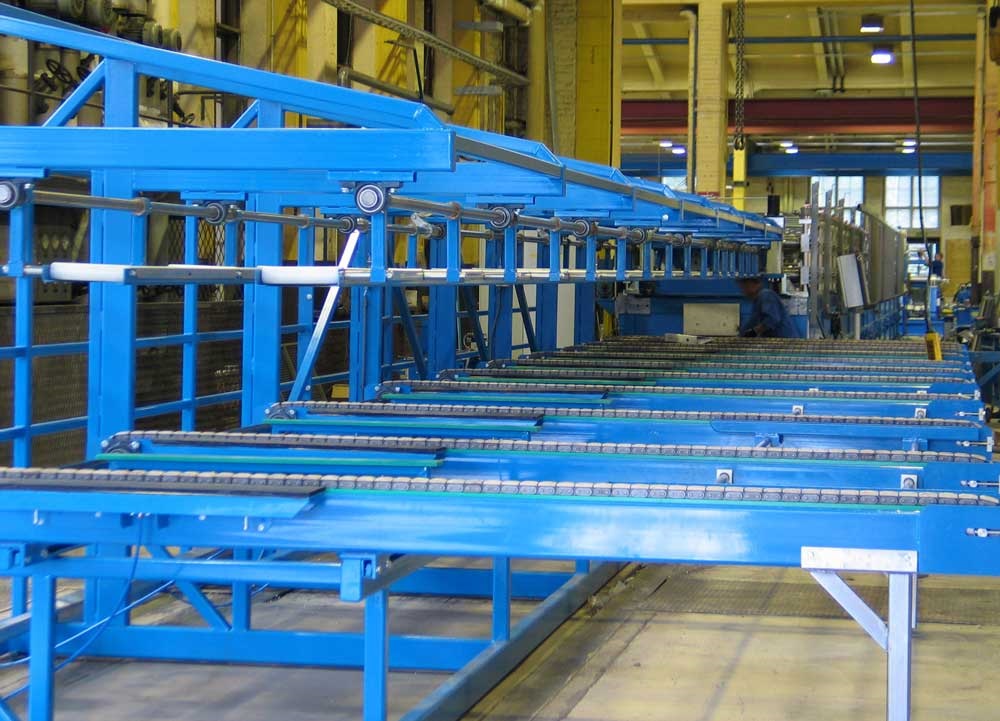

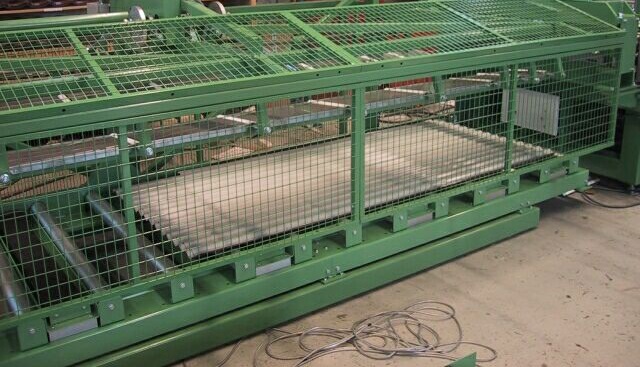

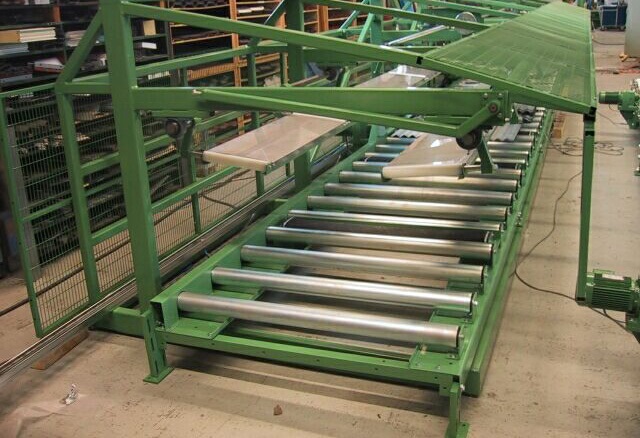

Automatic Stacking Table
- length: 6 / 8 / 10 / 12 m options

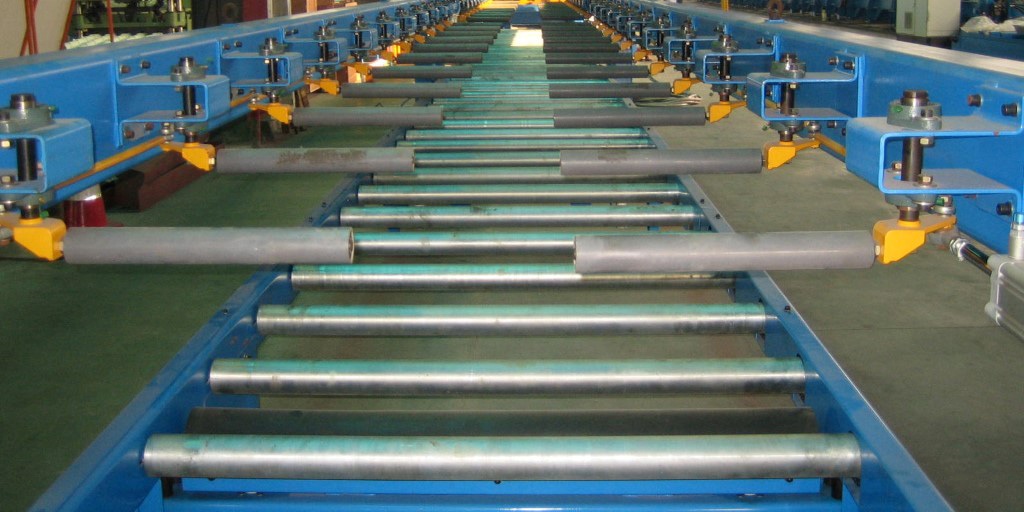

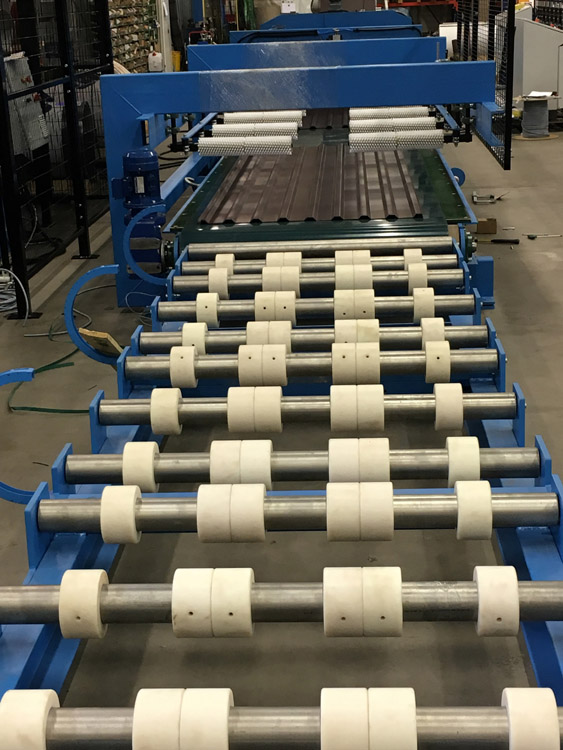

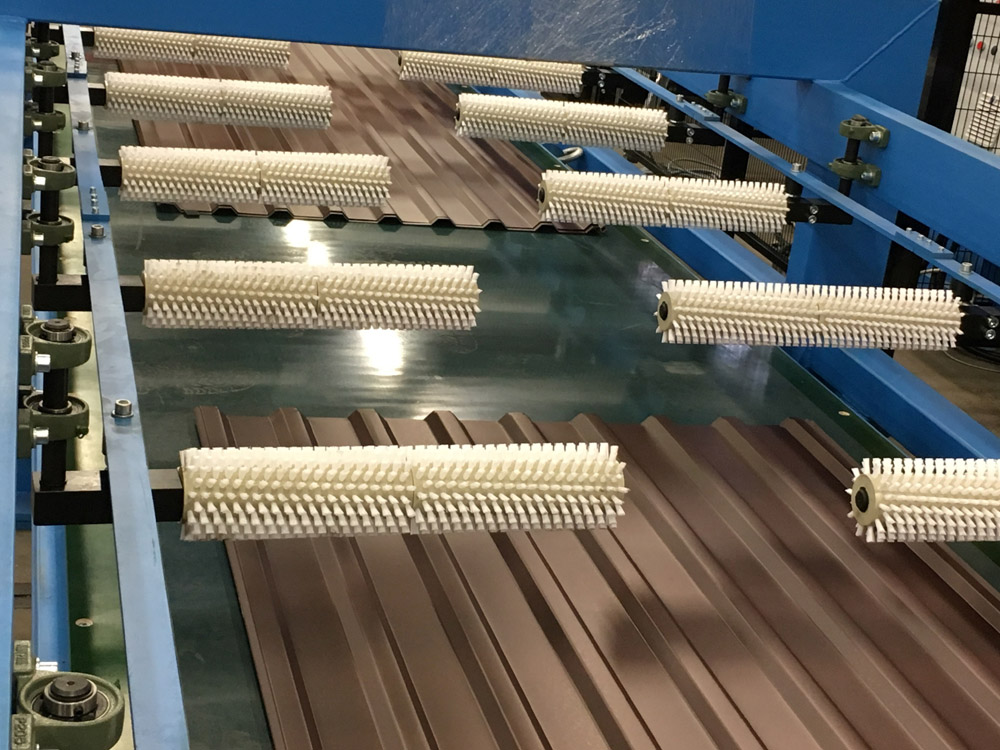

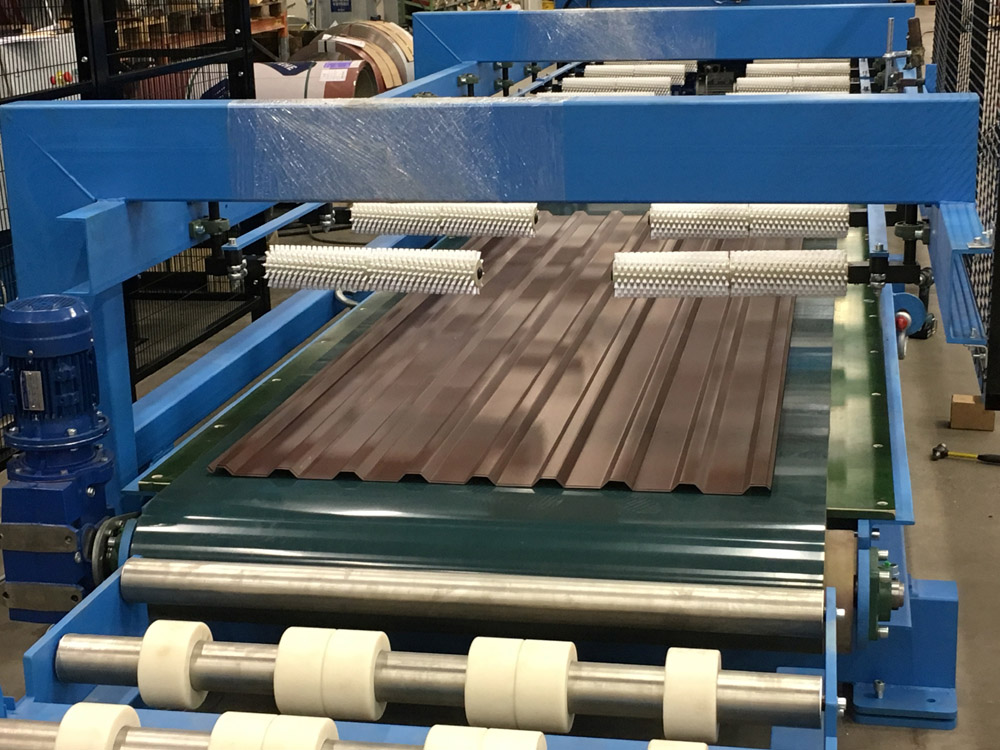

Run-Out Conveyor
- length: 6 / 8 / 10 / 12 m ^

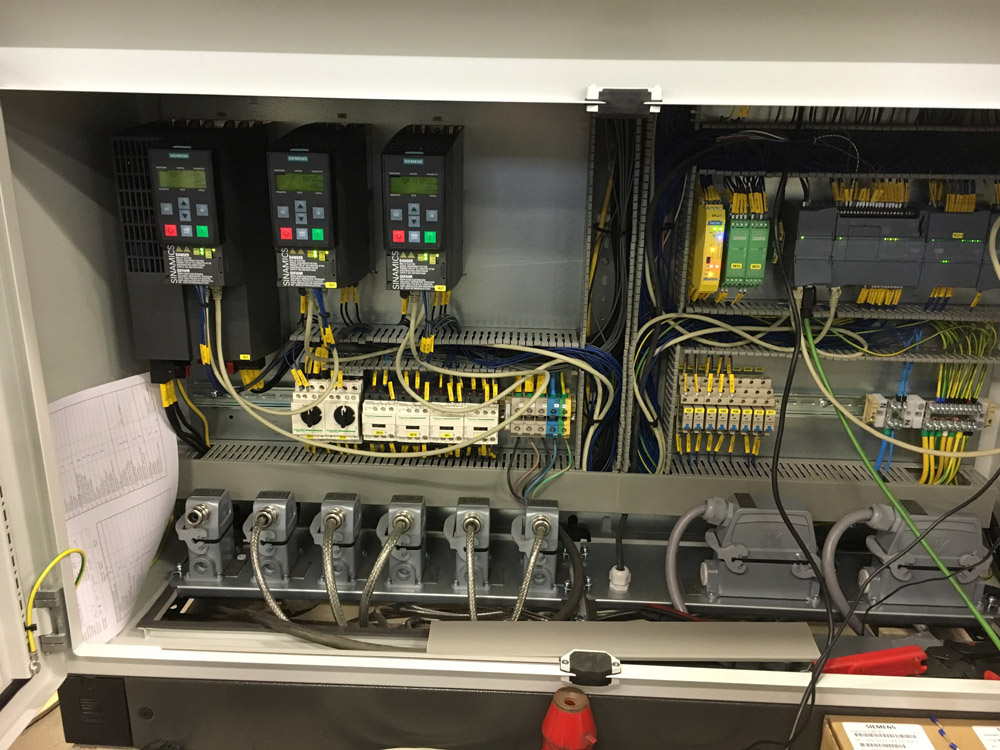

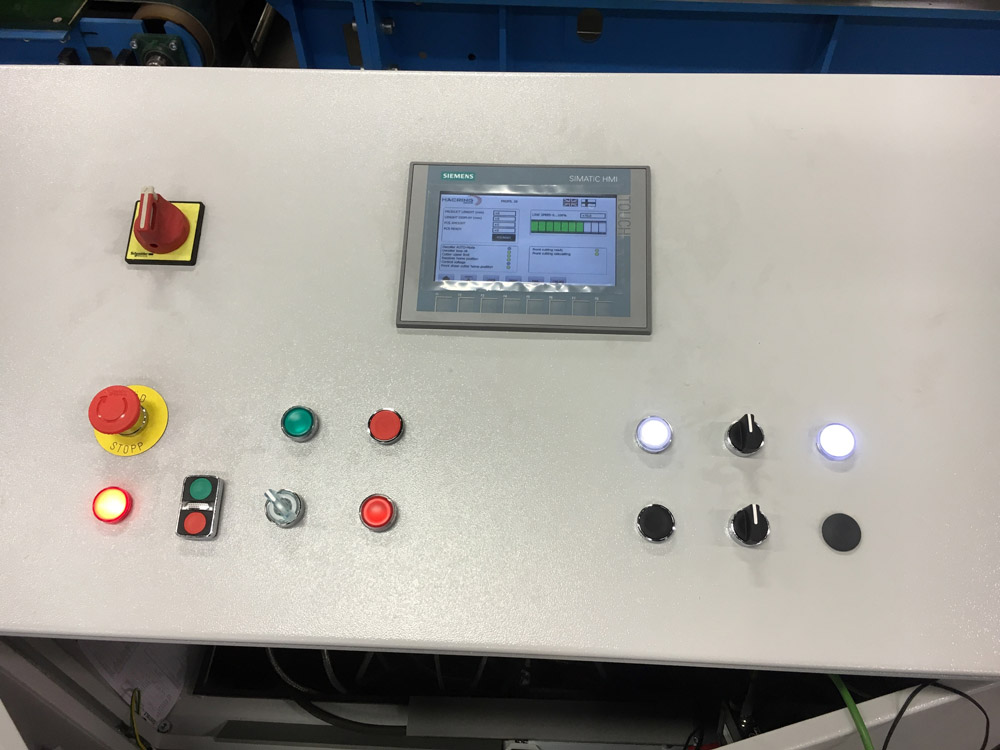

Electrics (Siemens components)
Hydraulics
Safety Light Curtains
Technical Literature to CE

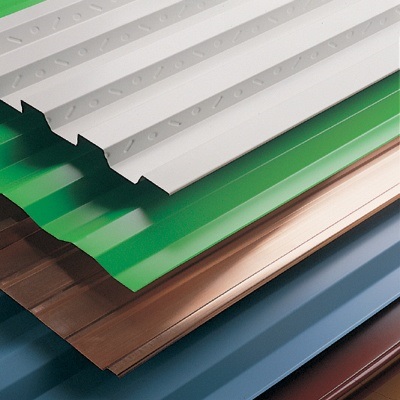

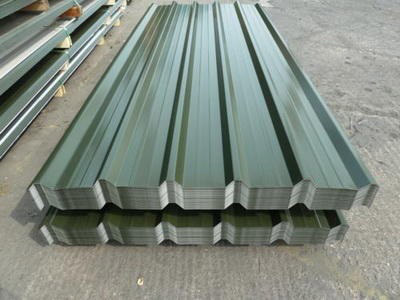

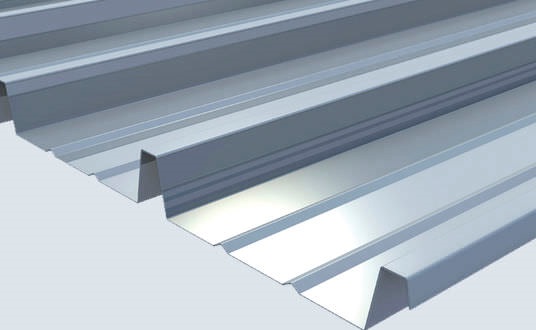

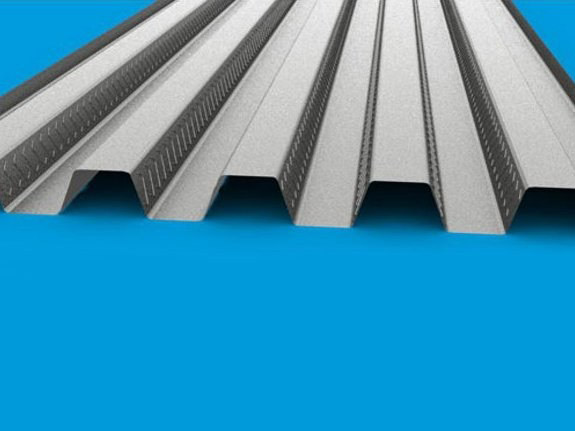

Developed from the old corrugated profile, trapezoidal sheets have been more and more in use since the late 50s.
Their advantages are: high load-bearing capability, fast-assembly, inexpensiveness, looks.
A variety of profile-shapes is available in the international market, with heights from 10mm up.
Trapezoidal -and, less: corrugated- profiles are, resp. used in (also composite-) roof construction and wall construction, with or without thermal insulation and/or anti-condensation finish & sound suppression finish etc.
We build trapezoidal sheet lines and corrugated sheet lines:
- "standardized" as above, or full- Custom tailored (samples of these are in the #5013^)
- of both static shear type and flying shear type
- with "conventional" or rafted rollformers; single-deck & double-deck (-ex.: #5011^, #5031^) rollformers; "conventional" and duplex (#5012^) rollformers
- complete with any line-exit automation equipment that may be required (-ex.: #2184^, #2185^)
• - with all options available like e.g.: film lamination machines (> for these please see Section: Automation Equipment & Special Machines), coil cars, butt shears / coil end joiners ...
and
bending machines for trapezoidal sheets (#5044^).
Our manufacturing locations for trapezoidal & corrugates sheet lines are in Finland, Italy and Ukraine.
Trapezoidal sheets and corrugates sheets of all materials are being produced, mostly in Europe with lines that we have designed and built: aluminium, copper, galvanized steel, prepainted steel etc.
As to used trapezoidal sheet lines in particular, we have sold (and sometimes revamped, upgraded, re-tooled) lines by: AJV, GASPARINI, PROFIILIKESKUS, ROLLSETT, ROLLSTEEL, SINTECH, STAM...
REQUEST QUOTATION
For quotations of new Trapezoidal (or "Sinus") Sheet Lines we require at least this information:
1. Coil Width
2. Coil Max. Weight
3. Material Thickness Range - Minimum / Maximum
4. Material Type/s
and we need:
> Drawing/s (Sketches at least) of the Profile/s to be produced
Unless otherwise specified by you, we'll propose our "standard" 40m / min Line Speed
Rafted Rollformer, Flying Shear, Protection Film Applicators... are OPTIONS, available on demand
