TRAPEZ. SHEET LINES
Trapez. Sheet Lines FLOREANI & PARTNERS New [#5032/5032.1/5040]
(NO LONGER BEING BUILT)

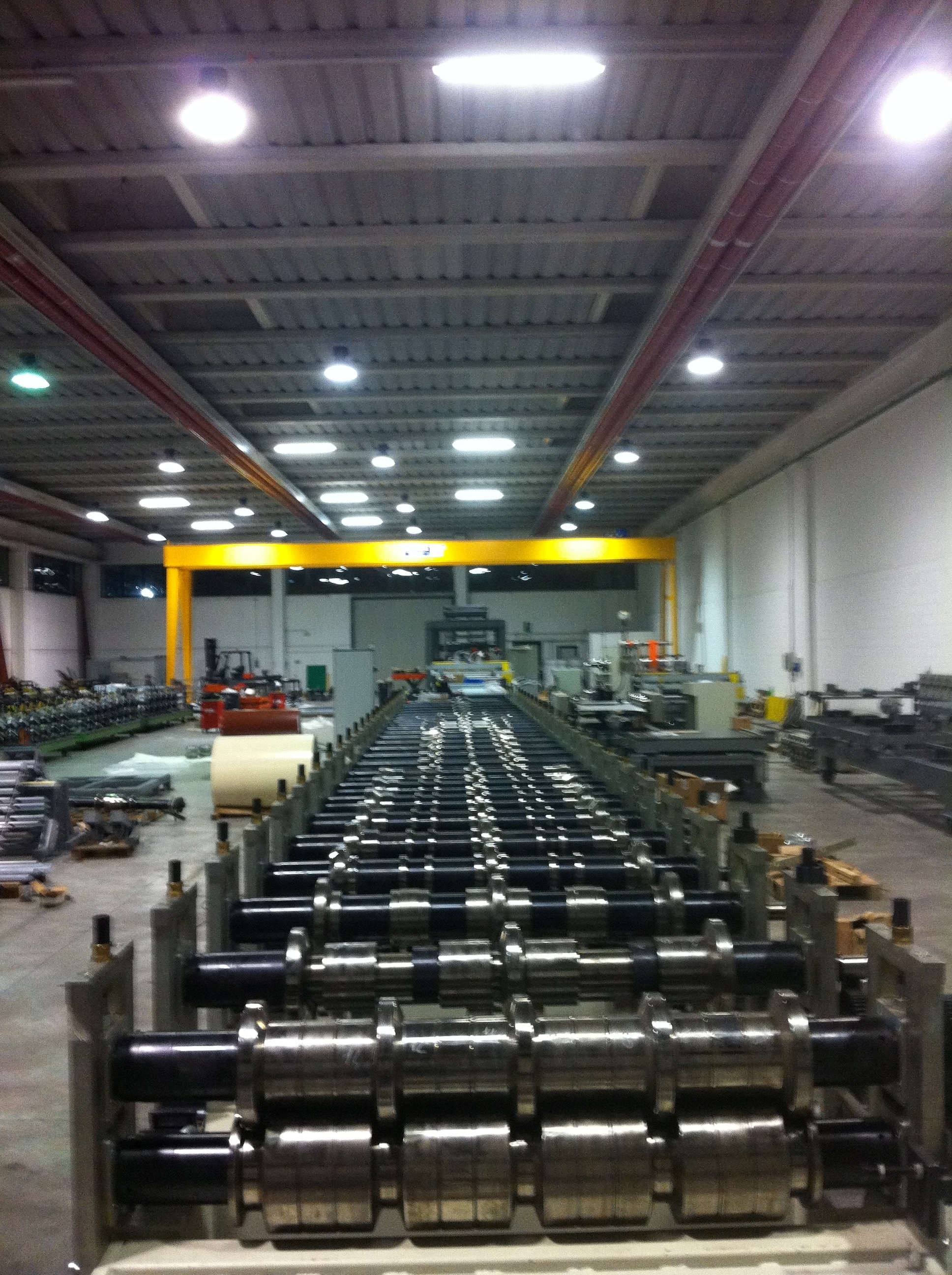

1
New Trapez. Sheet Lines
"Made in Italy" - Stop/Start Type*
FLOREANI & PARTNERS
(* Flying Shear Option available)
#5032

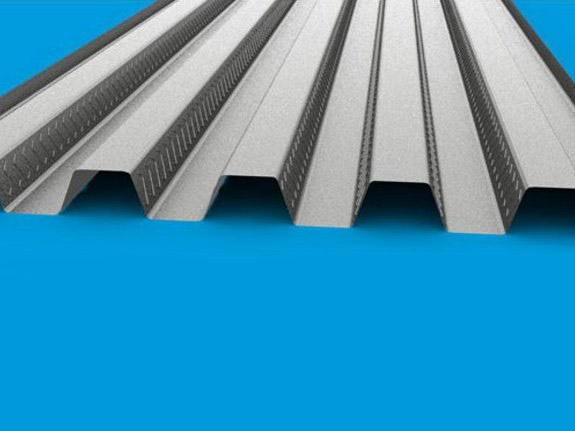

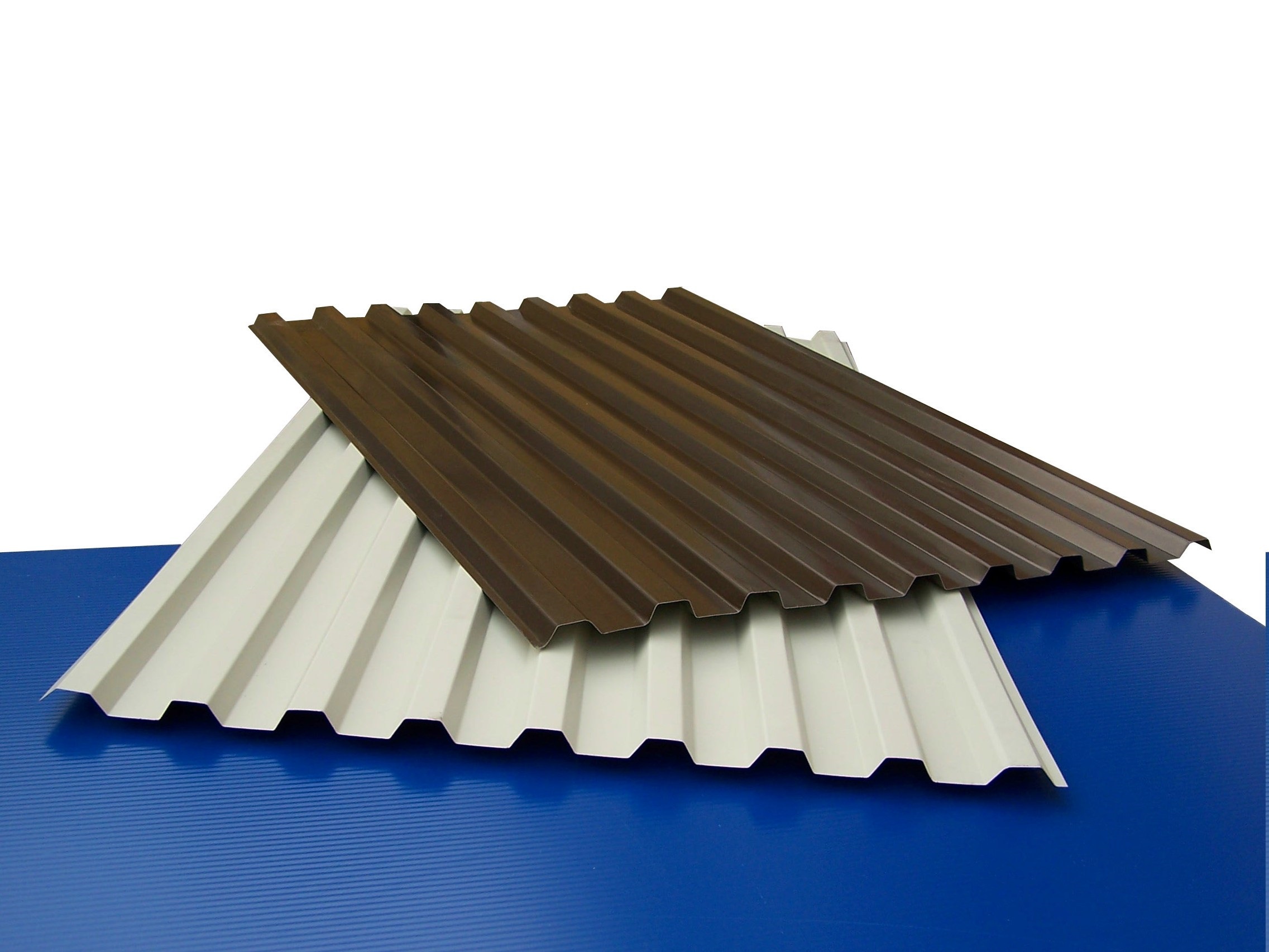

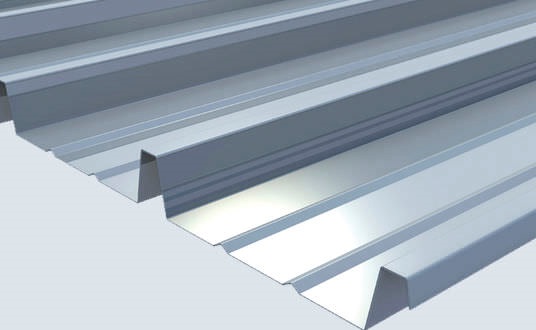

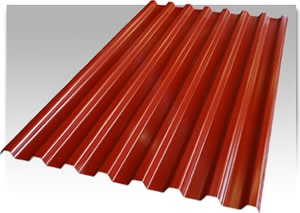

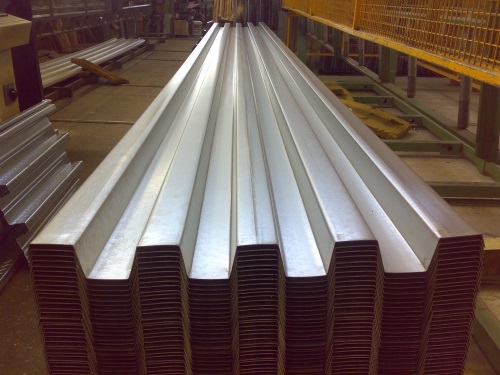

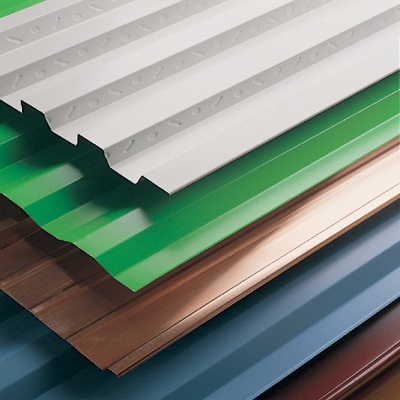

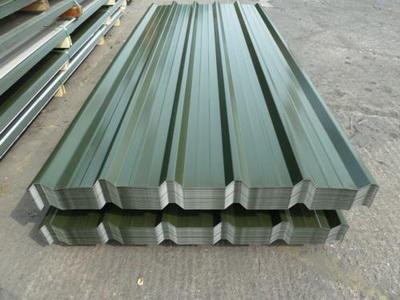

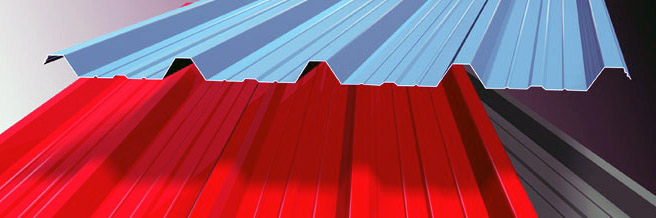

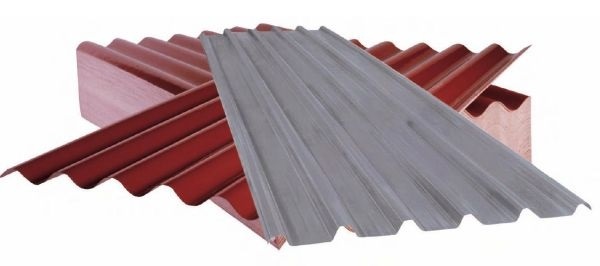

Trapezoidal or Corrugated Sheet "Basic" Line
This stop/start, standardized line type suits for:
- Aluminium (.7-1.0mm)
- Copper (.5-.6mm)
- Galv. Steel (.4-.7mm)
- Prepaint (.4-.8mm)
- Titan-Zinc
...
and for:
- max. 45mm-high sections
- coils up to 1250mm wide
Its workspeed is ca. 6m / min
Standard paints:
RAL 7005 and 1021 Grays
RAL 2004 Orange the mobile parts
(Custom paints available on demand)
EQUIPMENT & TOOLING DESCRIPTIONS

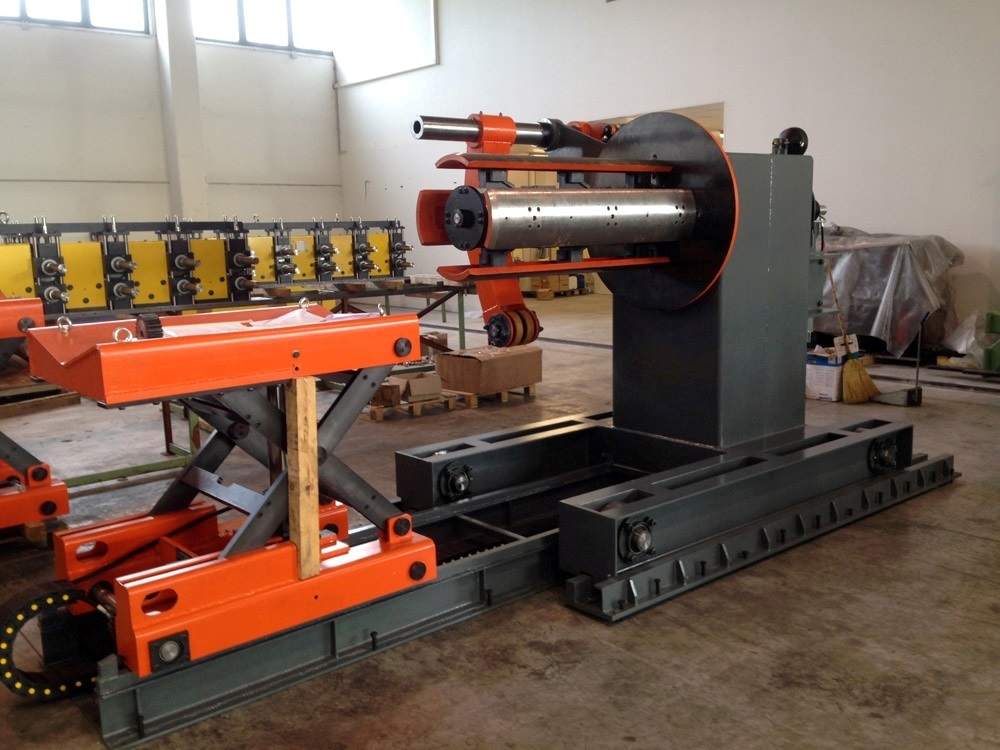

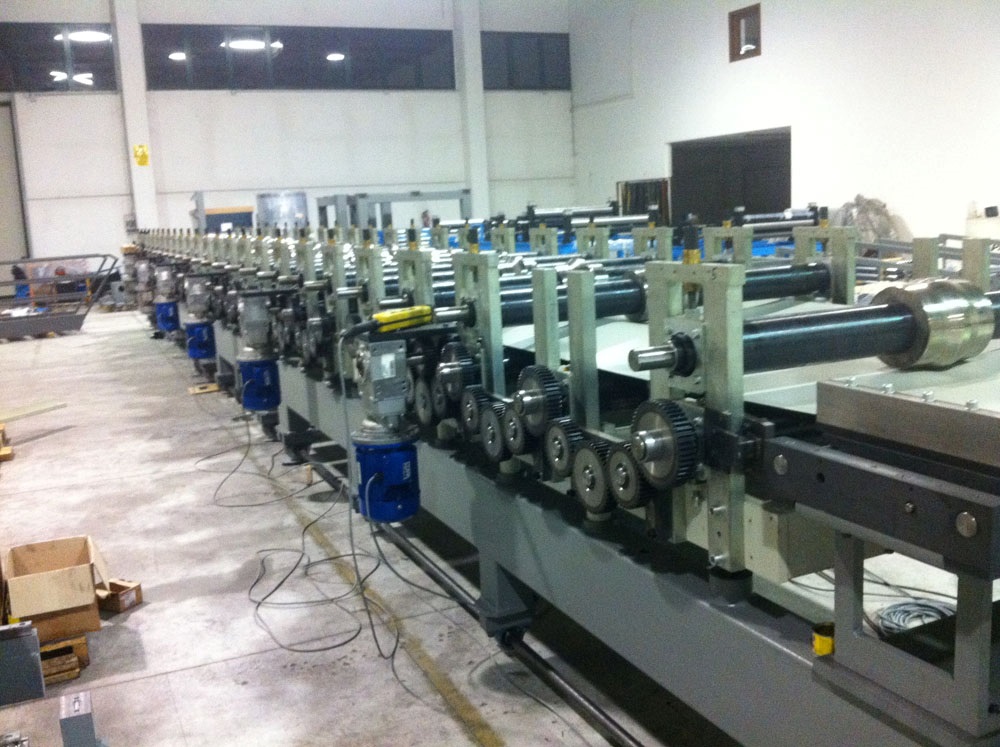

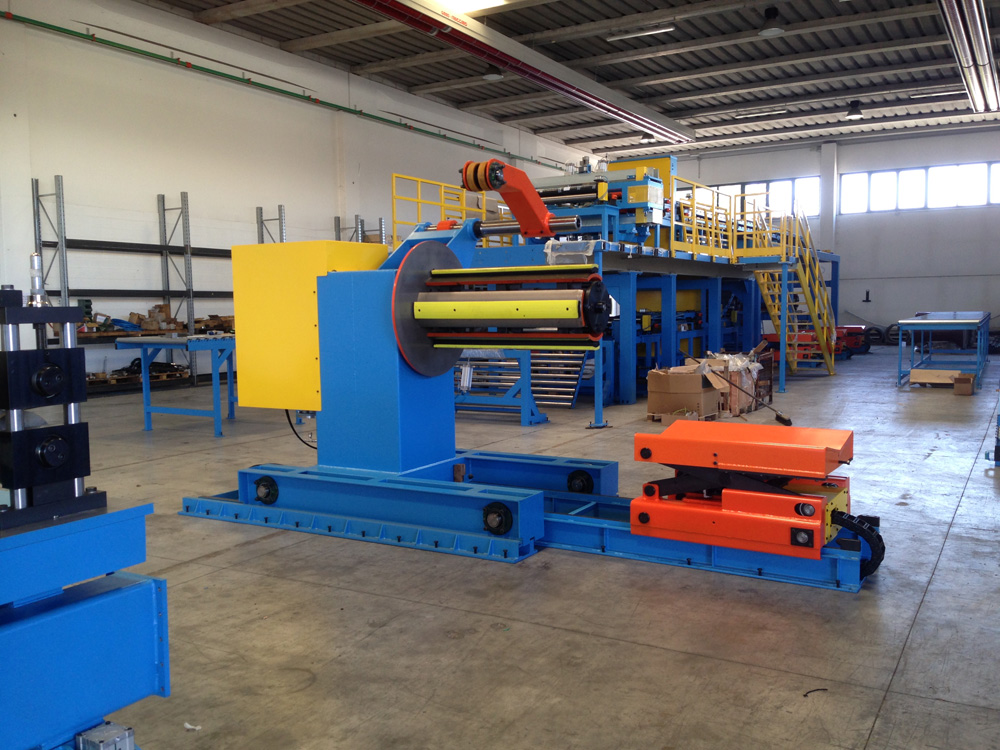

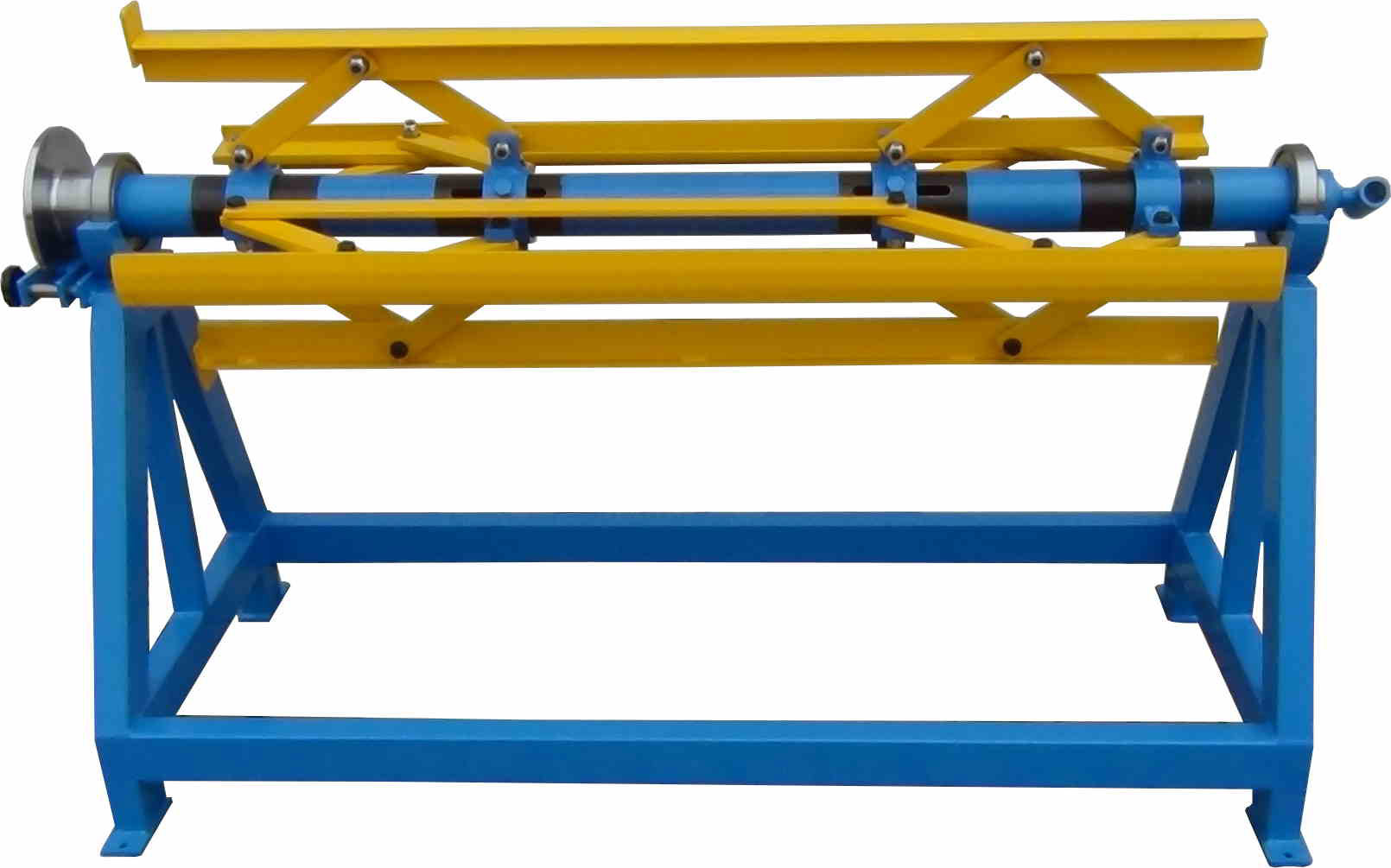

Stand Type Undriven Decoiler (photo: 6>)
1300mm mandrel drum
coil weight max. 5 t

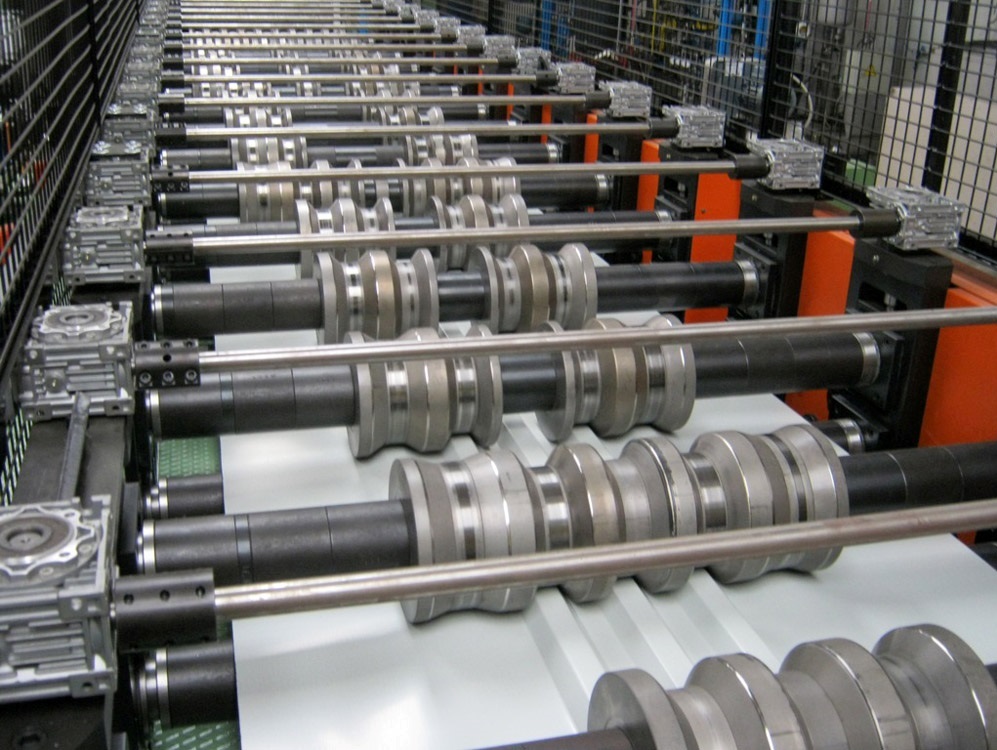

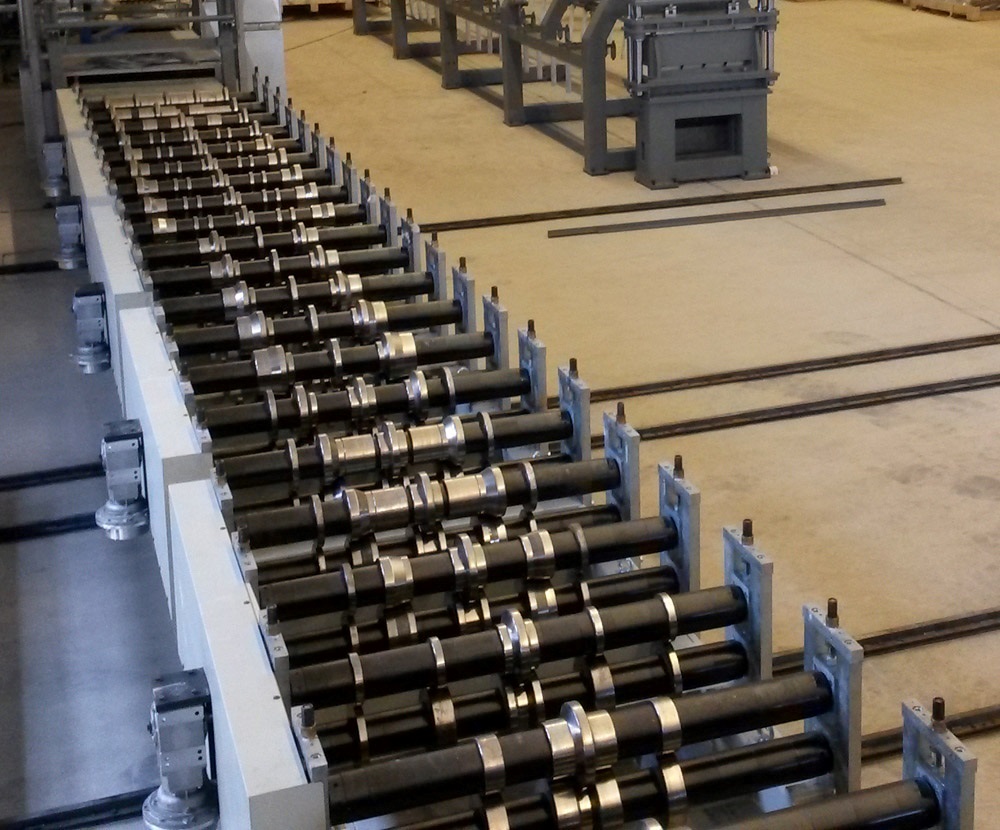

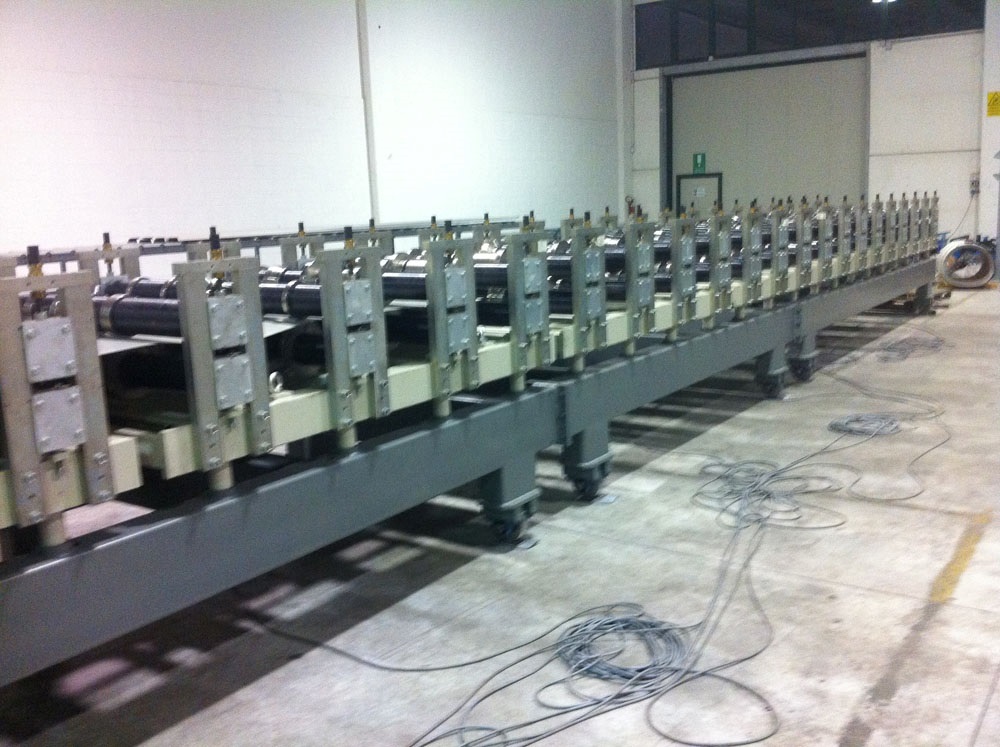

20-Station Roll Former
1300mm roll space
90mm dia. arbors
600mm horiz. center dist. (fixed stands)
59mm vert. adjustment
material entry guide
20 kW A.C. main drive motor w. inverter
encoder unit

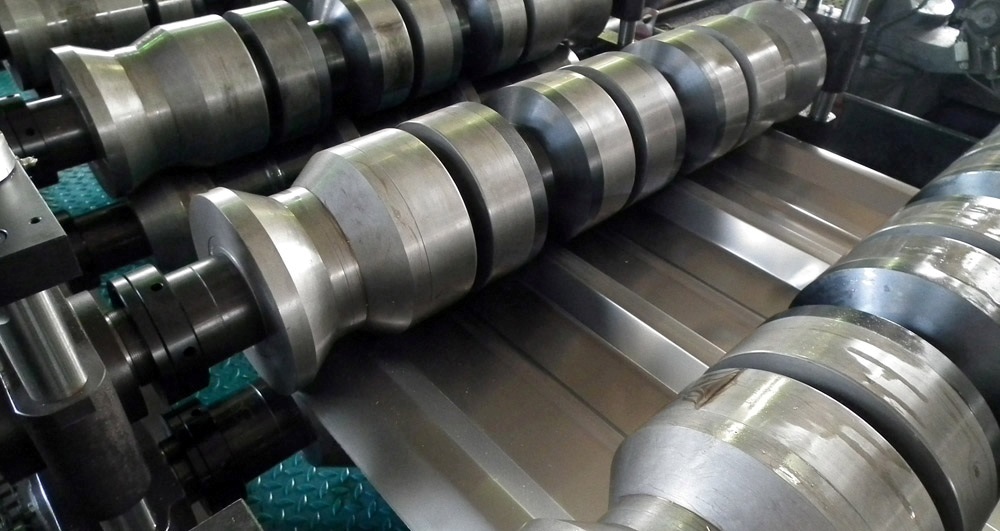

Roll Tooling in C45 steel, hardened

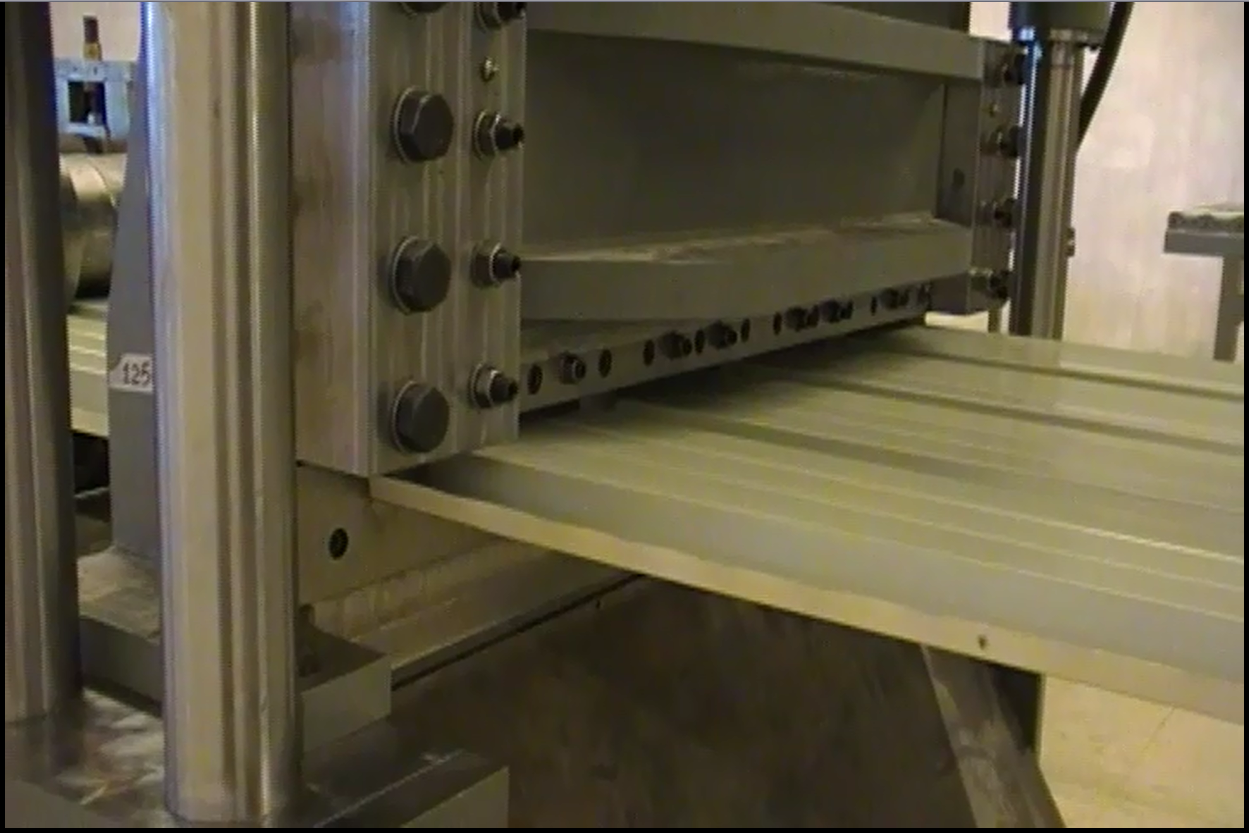

Static Post-Cut Shear
electric drive type with 3 kW motor
Shaped Cutoff Blades
Electrics (Siemens components)
Hydraulics
Safety Light Curtains
Technical Literature to CE
#5032.1
Trapezoidal or Corrugated Sheet "Basic" Line
This stop/start, standardized line type suits for:
- Aluminium (.7-1.0mm)
- Copper (.5-.6mm)
- Galv. Steel (.4-.7mm)
- Prepaint (.4-.8mm)
- Titan-Zinc
...
and for:
- max. 45mm-high sections
- coils up to 1250mm wide
Its workspeed is ca. 20m / min
Standard paints:
RAL 7005 and 1021 Grays
RAL 2004 Orange the mobile parts
(Custom paints available on demand)
EQUIPMENT & TOOLING DESCRIPTIONS
The line is same as #5032 but with:
Motorized Overhung-Drum Type Decoiler
(photos: 2, 11>)
1300mm mandrel drum
coil weight max. 6 t
5.5 kW A.C. motor w. inverter
hydraulic drum expansion (450-550mm)
air brake
- Options: 10 t or 15 t Decoiler, Coil Car
20-Station Roll Former
1300mm roll space
90mm dia. arbors
600mm horiz. center dist. (fixed stands)
59mm vert. adjustment
material entry guide
20 kW A.C. main drive motor w. inverter
encoder unit
Roll Tooling in C45 steel, hardened
Static Post-Cut Shear
electric drive type with 3 kW motor
Shaped Cutoff Blades
Electrics (Siemens components)
Hydraulics
Safety Light Curtains
Technical Literature to CE
#5040

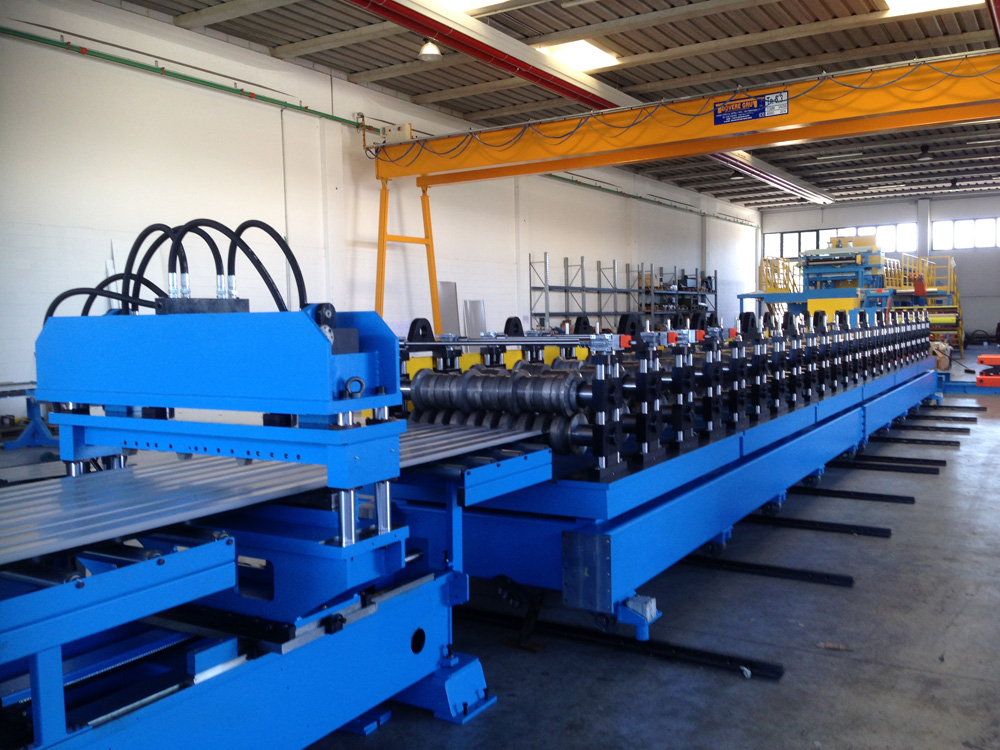

Trapezoidal or Corrugated Sheet "Medium-Level" Line
This stop/start, standardized line type suits for:
- Aluminium (.7-1.0mm)
- Copper (.5-.6mm)
- Galv. Steel (.4-.7mm)
- Prepaint (.4-.8mm)
- Titan-Zinc
...
and for:
- max. 75mm-high sections
- coils up to 1250mm wide
Its workspeed is ca. 20m / min
Standard paints:
RAL 7005 and 1021 Grays
RAL 2004 Orange the mobile parts
(Custom paints available on demand)
EQUIPMENT & TOOLING DESCRIPTIONS
Motorized Overhung-Drum Type Decoiler
(photos: 2, 11>)
1300mm mandrel drum
coil weight max. 10 t
5.5 kW A.C. motor w. inverter
hydraulic drum expansion (450-550mm)
snubber arm
air brake
- Options: 6 t or 15 t Decoiler; Coil Car

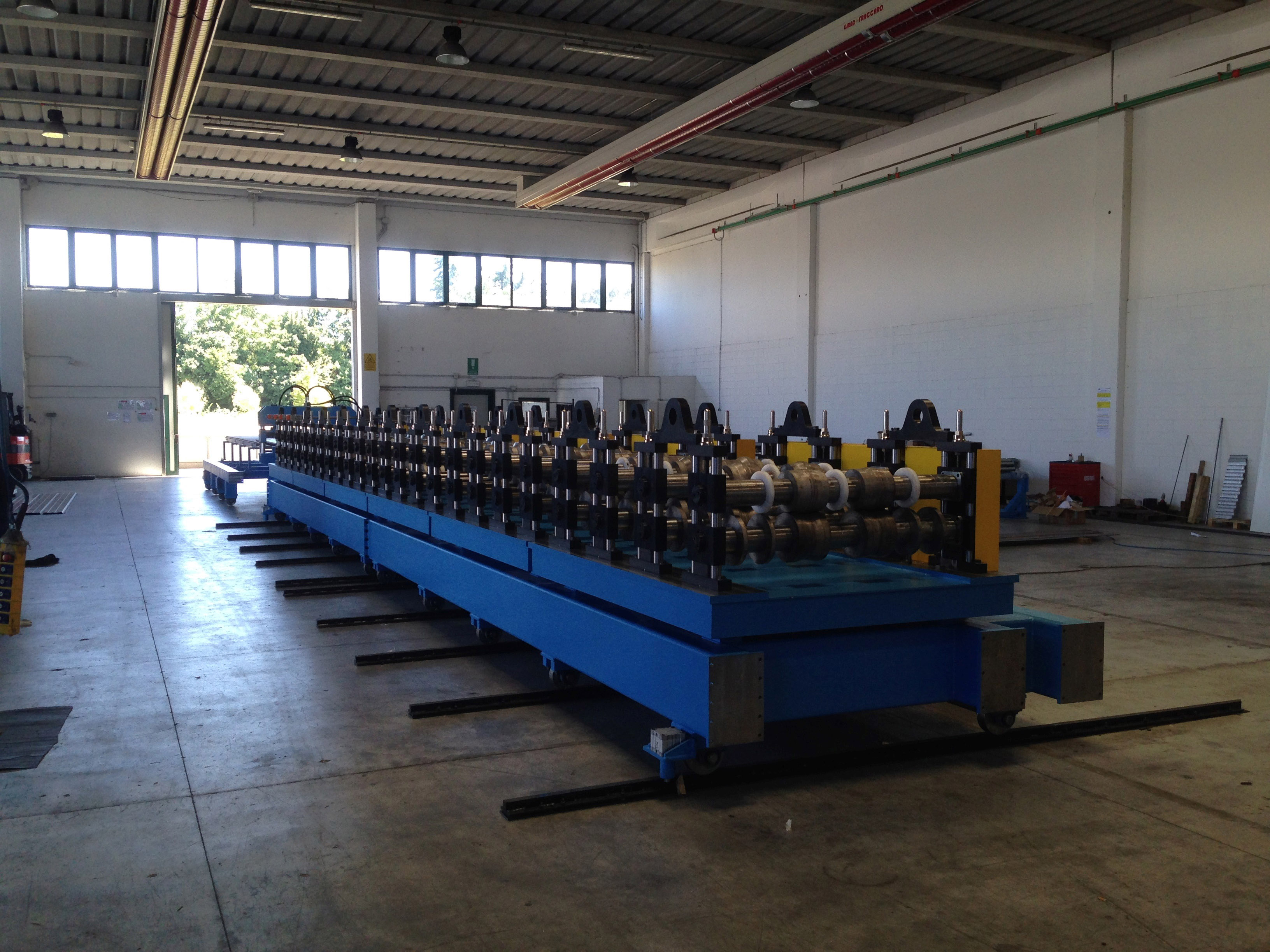

24-Station Roll Former (6 Rafts)
1300mm roll space
100mm dia. arbors
600mm horiz. center dist. (fixed stands)
59mm vert. adjustment
material entry guide
D.C. main drive motor
encoder unit
Roll Tooling in 39NiCroMo3 steel, nitrided
Static Post-Cut Shear
electric drive type
Shaped Cutoff Blades
Electrics (Siemens components)
Hydraulics
Safety Light Curtains
Technical Literature to CE
PHOTOS & IMAGES
(CLICK TO ENLARGE)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
