Used Flying Shear Cut To Length Line
2000mm x 12mm
HYBRID

Year when built: 1992, revamped 1998


    USED 2000mm x 3-12mm CARBON STEEL FLYING SHEAR CUT TO LENGTH LINE FOR SALE, INSTALLED & UNDER POWER: WITH 30 T DECOILER, SUITABLE FOR 500-730mm COIL ID; 17-ROLLER LEVELER; 20m/10 T SHEET STACKER...

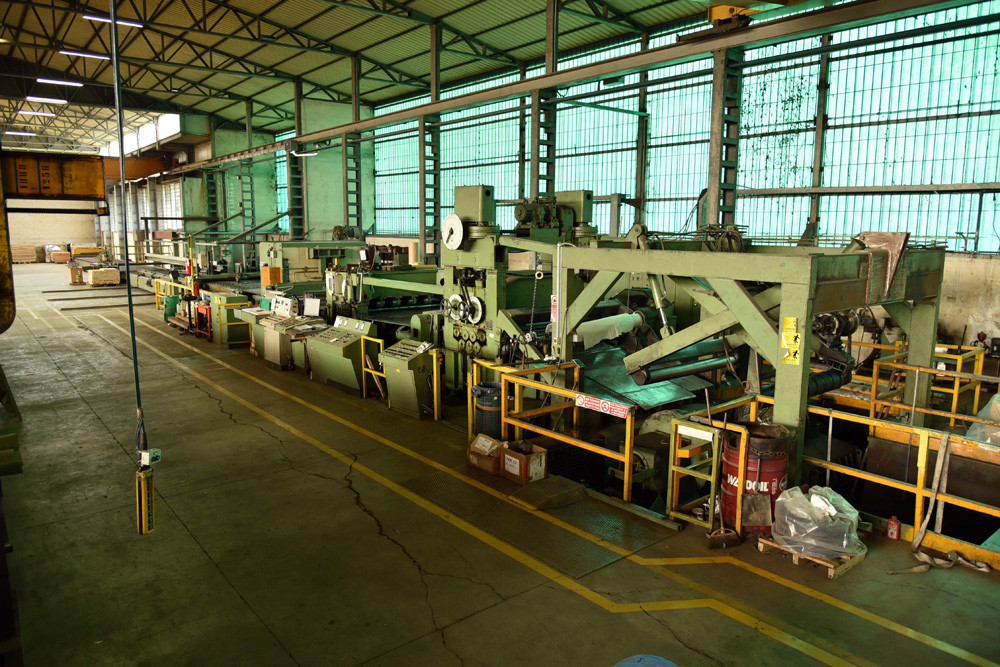

    A USED 2000mm x 3-12mm CARBON STEEL FLYING SHEAR TYPE CUT TO LENGTH LINE FOR SALE, STILL INSTALLED & UNDER POWER: WITH 30 T DECOILER, SUITABLE FOR 500-730mm COIL ID; 17-ROLLER LEVELER (WORK ROLL DIAMETER: 100mm; 8 UPPER ROLLS, 9 LOWER ROLLS); 20m/10 T SHEET STACKER. THE MAX. LINE SPEED IS 18m / min. MAX. SHEET STACK HEIGHT 200mm. SIEMENS S5 PLC. 400 V / 50 Hz




    General Information



    Year When Built: 1998
    Process Material: Carbon Steel
    Minimum / Maximum Coil Width: 700mm / 2000mm
    Coil Max. Weight: 30 Tonne
    Minimum Material Thickness: 3mm
    Maximum MaterialThickness: 12mm
    Minimum / Maximum Coil ID: 500mm / 730mm
    Maximum Coil OD: 2000mm
    Minimum / Maximum Sheet Length (Stacker): 1000mm / 20000mm
    Sheet Length Tolerance: - / + 2mm
    Maximum Stack Weight / Height: 10 Tonne / 200mm
    Max. Speed (of Leveler): 18m / min

    Line Direction: Right To Left



    Equipment List

    The line includes the following:

    Hydraulic Coil Car
    Double Opposed Cone Decoiler with Coil Opener, Hydraulic Motor
    Corrective Straightener, 3-12mm, 7 rolls / roll dia. 200mm

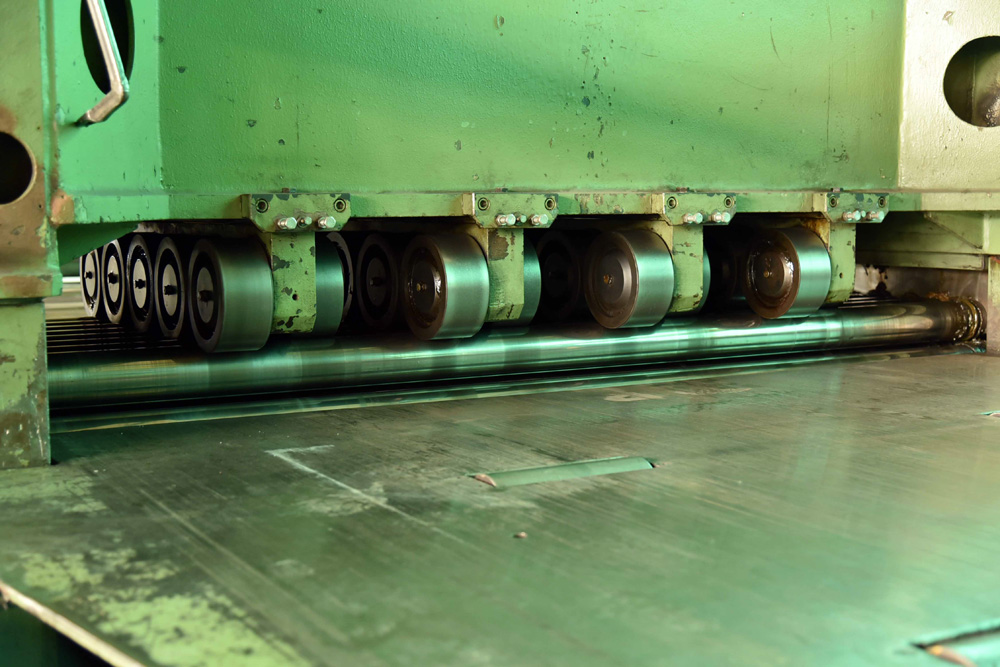

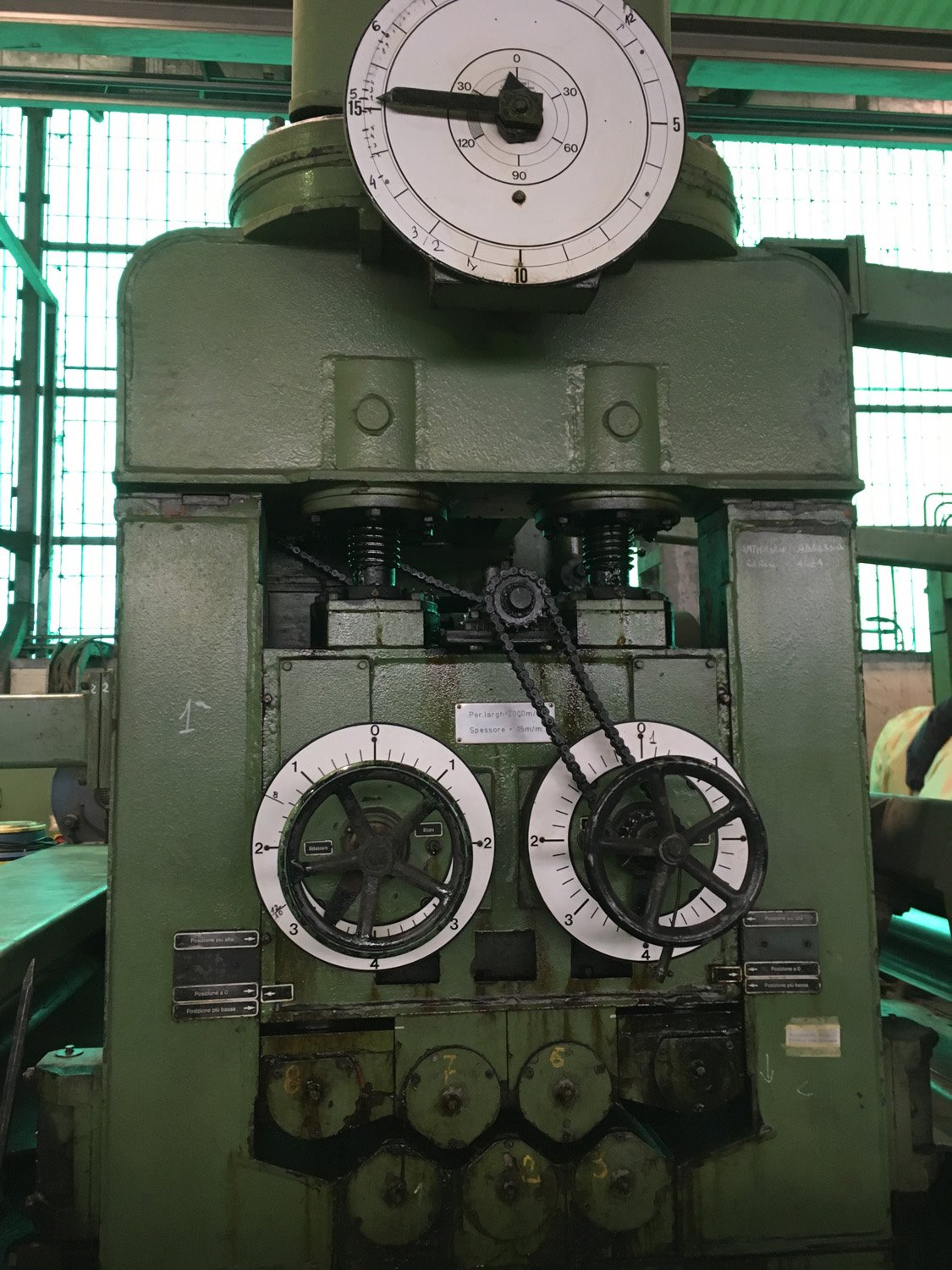

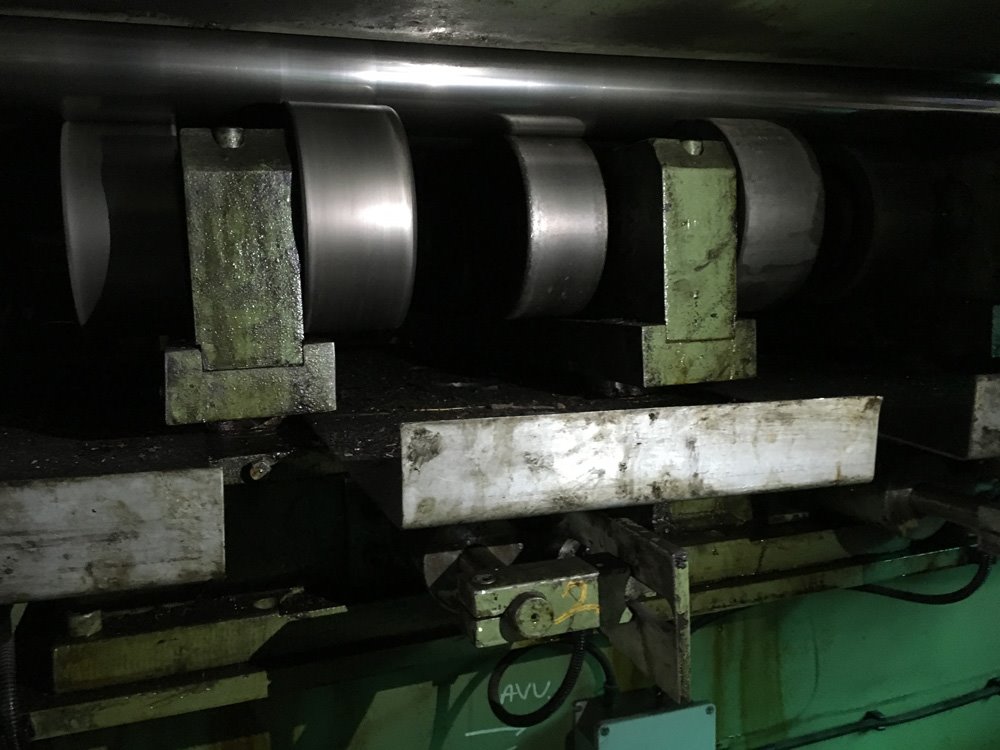

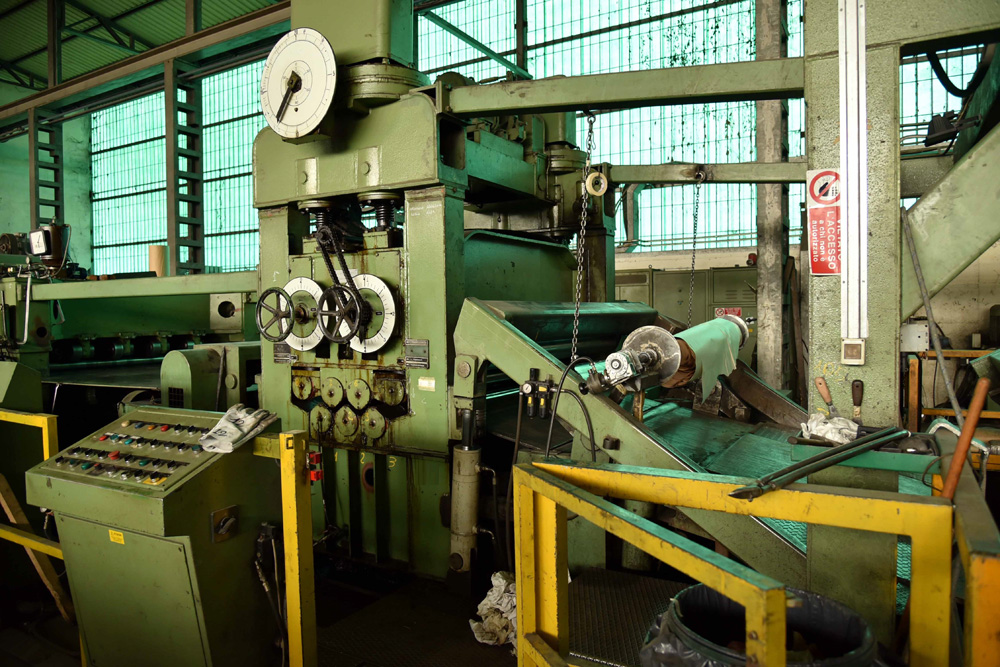

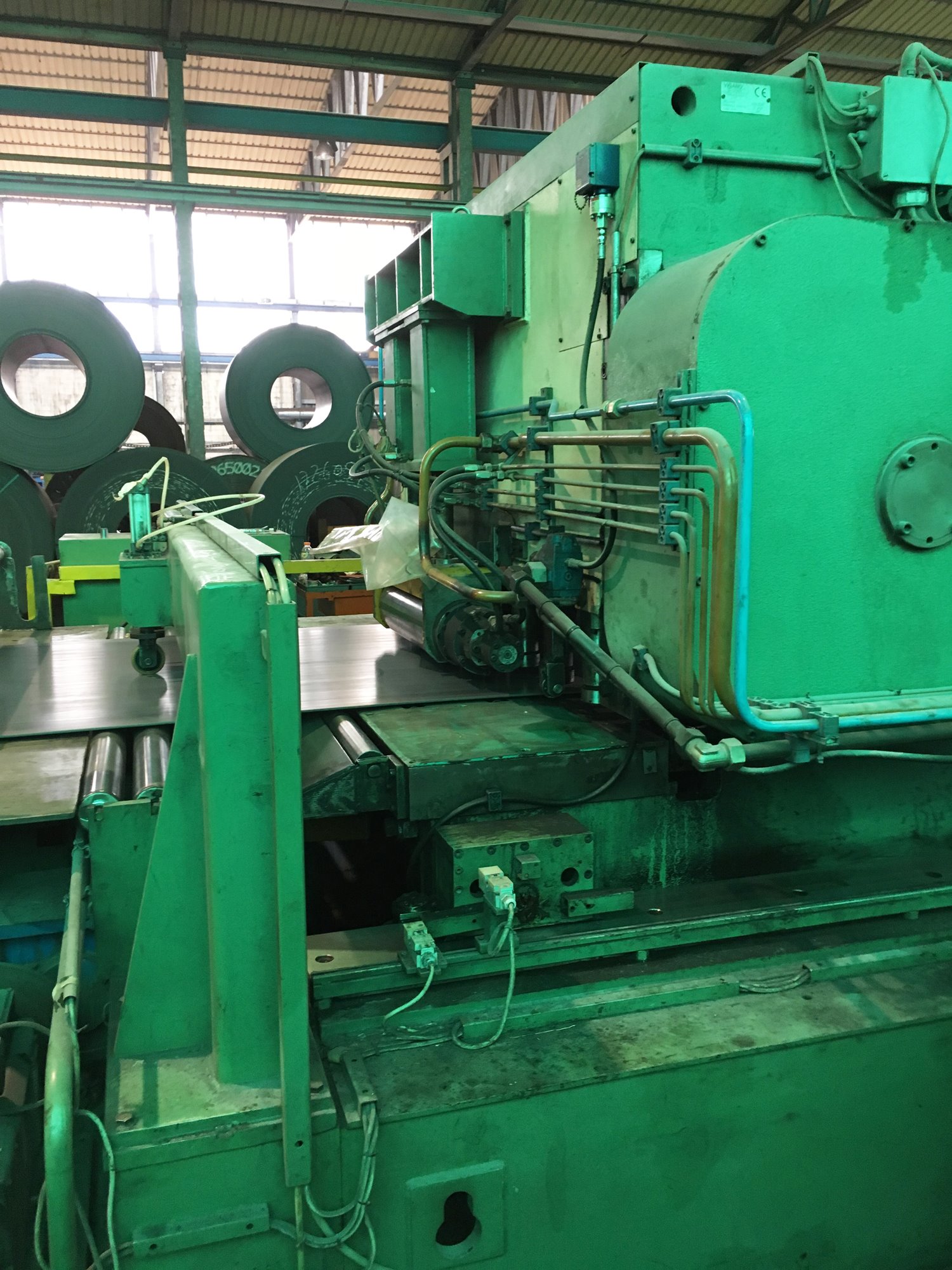

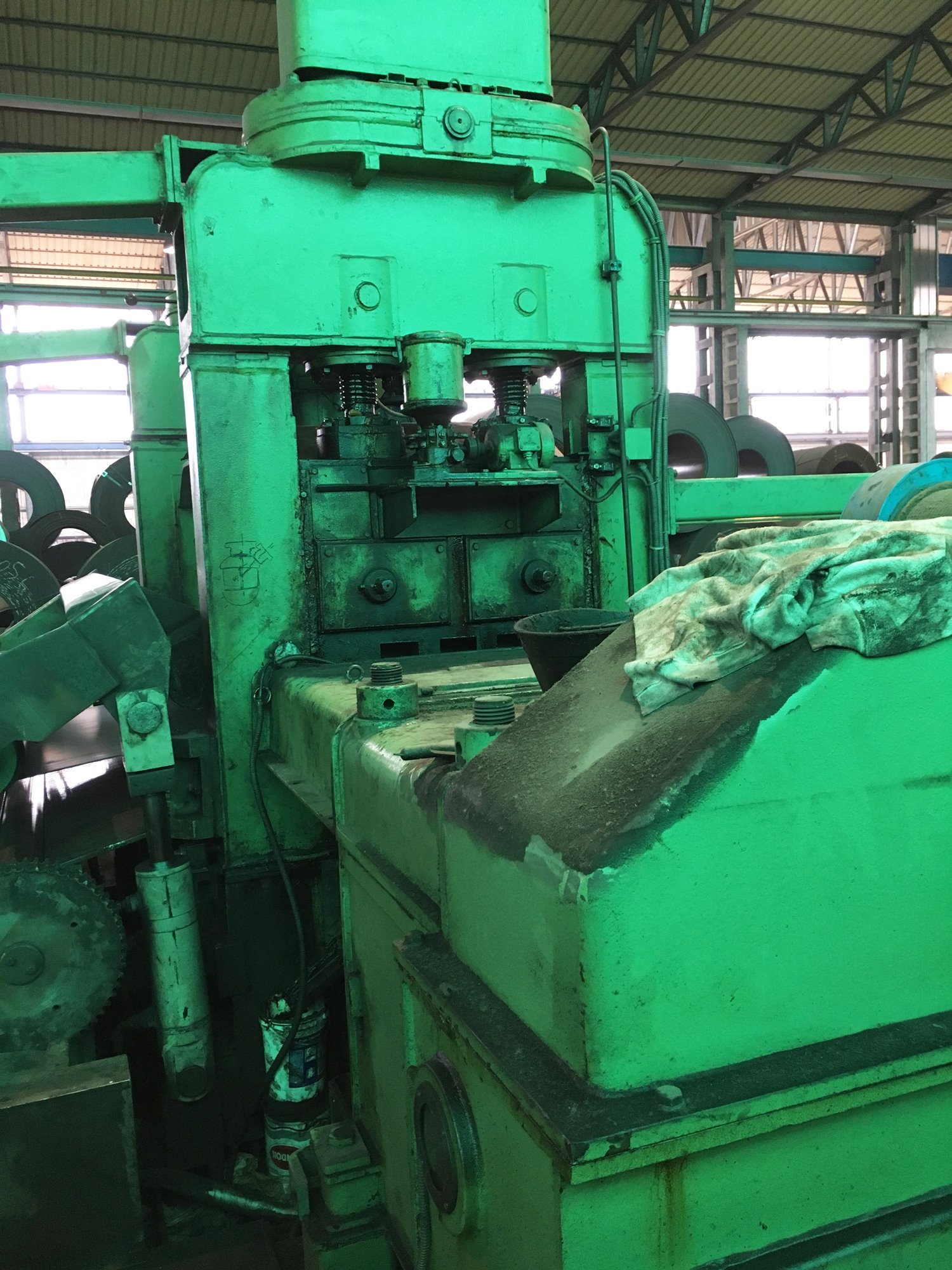

    4-Hi Roller Leveler, 3-10mm, 17 work rolls / roll dia. 100mm. On lower table 9 work rolls mounted on bushes and supported by 4 benches, each with 10 back-up rolls. On upper table 8 work rolls also mounted on bushes, supported by 4 benches each with 9 back-ups. D.C. motor drive. Measuring unit mounted at Leveler exit, with pneumatic pressing cylinder

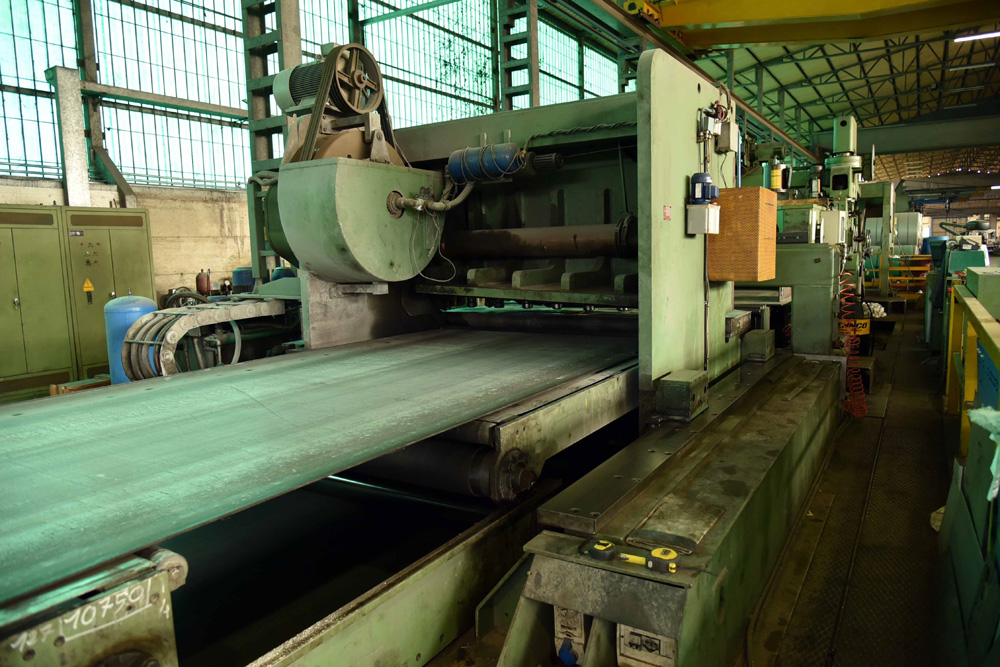

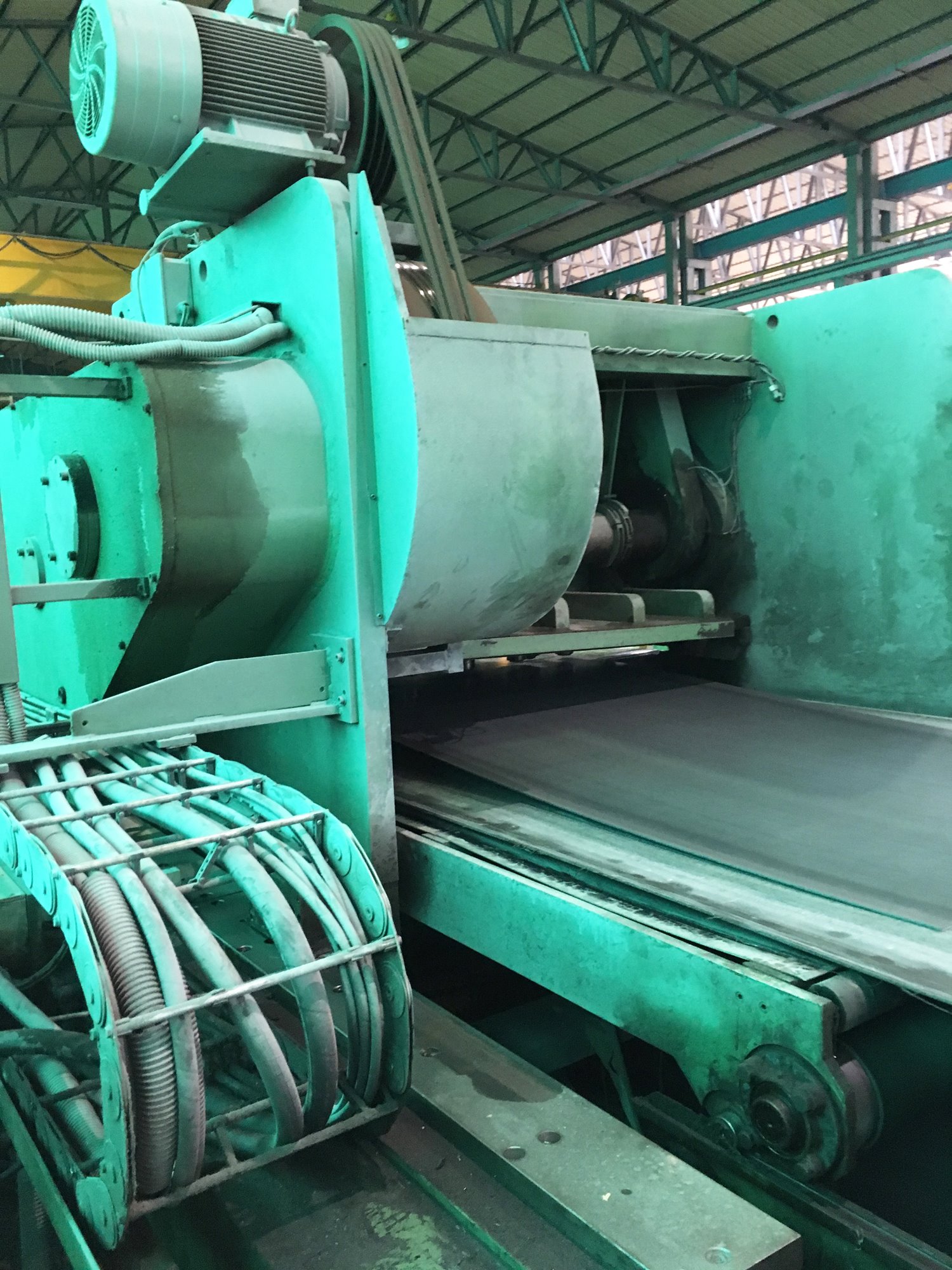

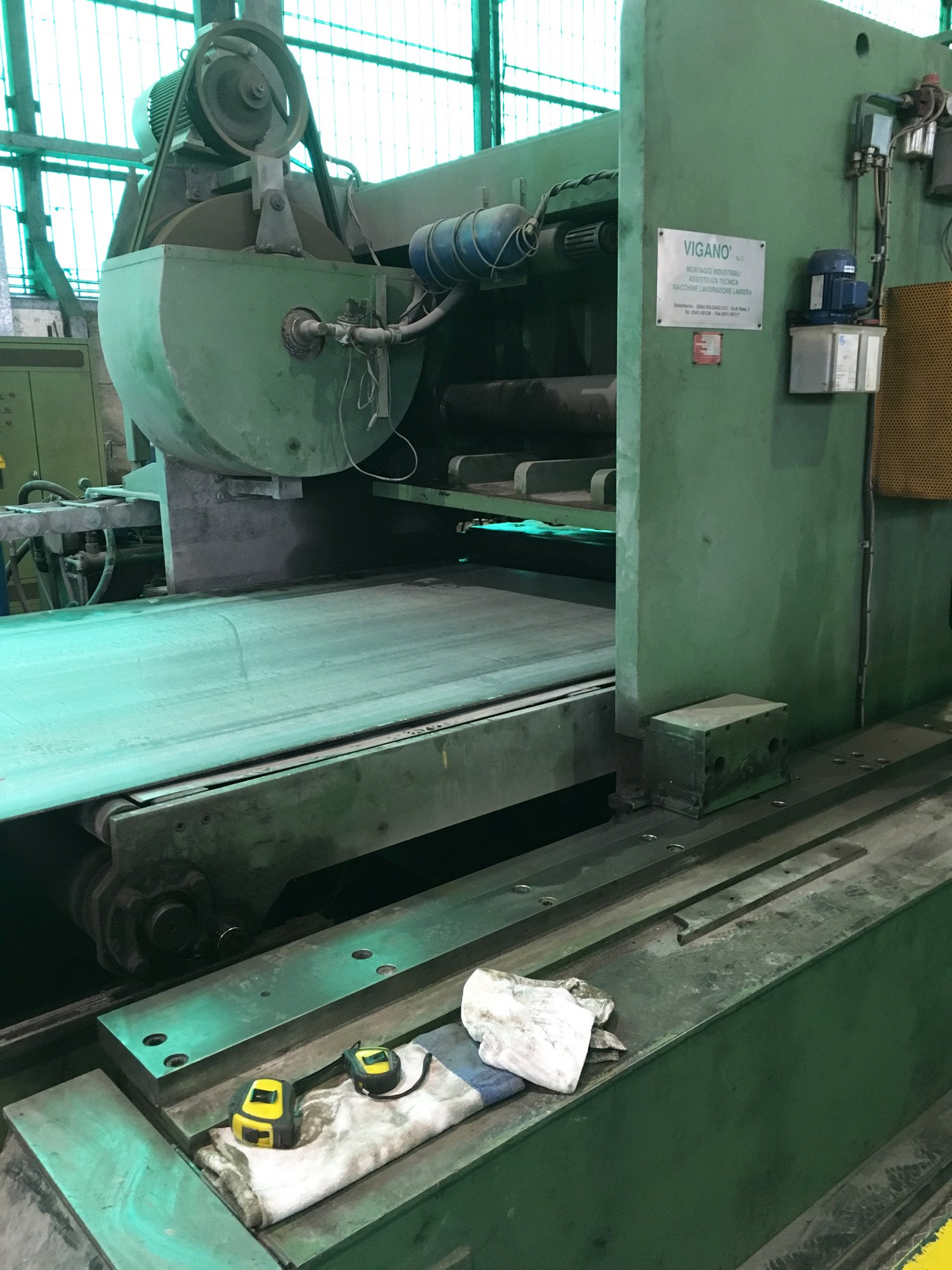

    Flying Shear with motorized blade clearance adjustment. Steel blankholder with hard-rubber coated contact points. Upper blade holder sliding on lubricated guides that can easily be adjusted from outside
    Powered Sheet Extraction Rolls

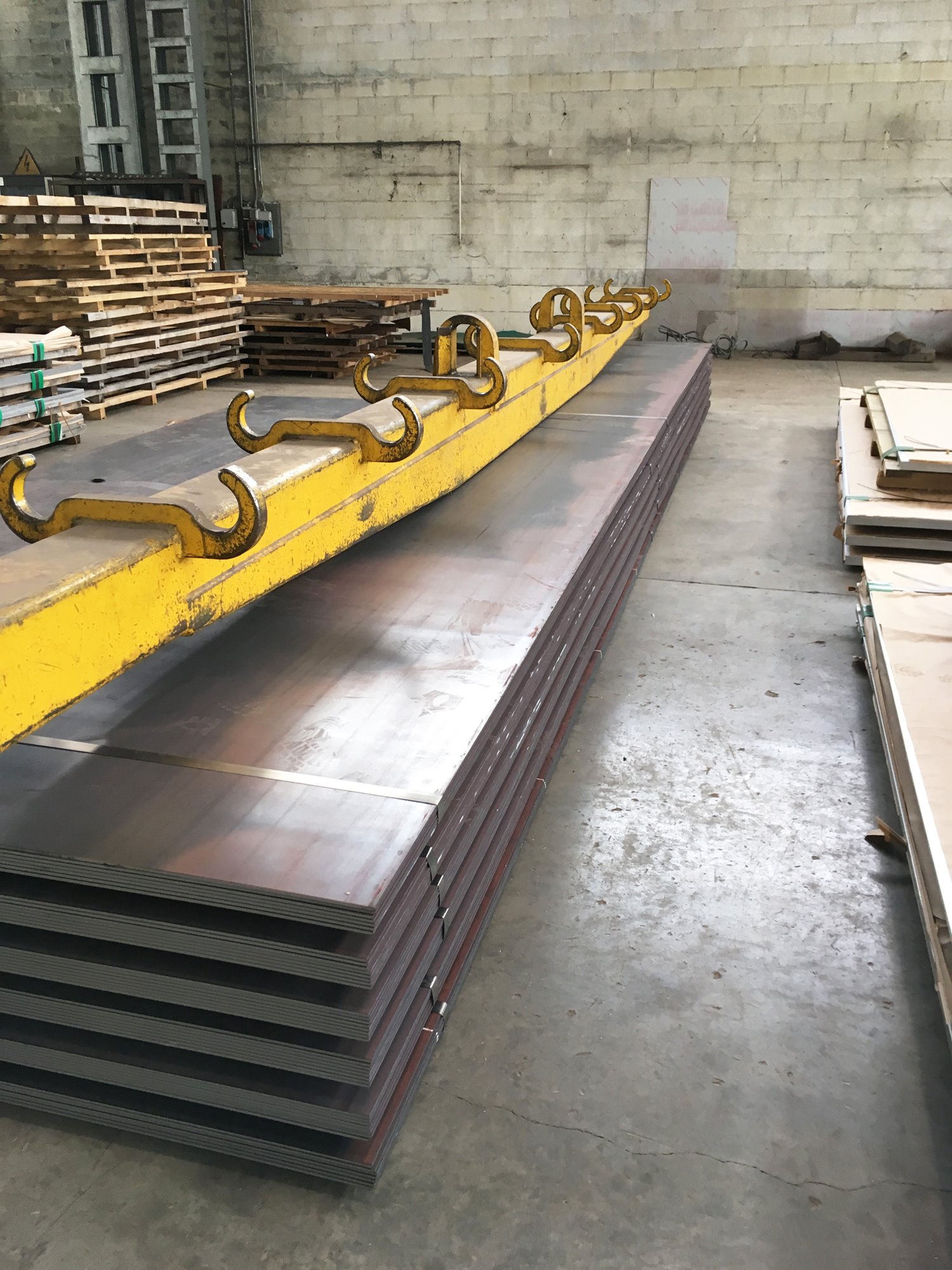

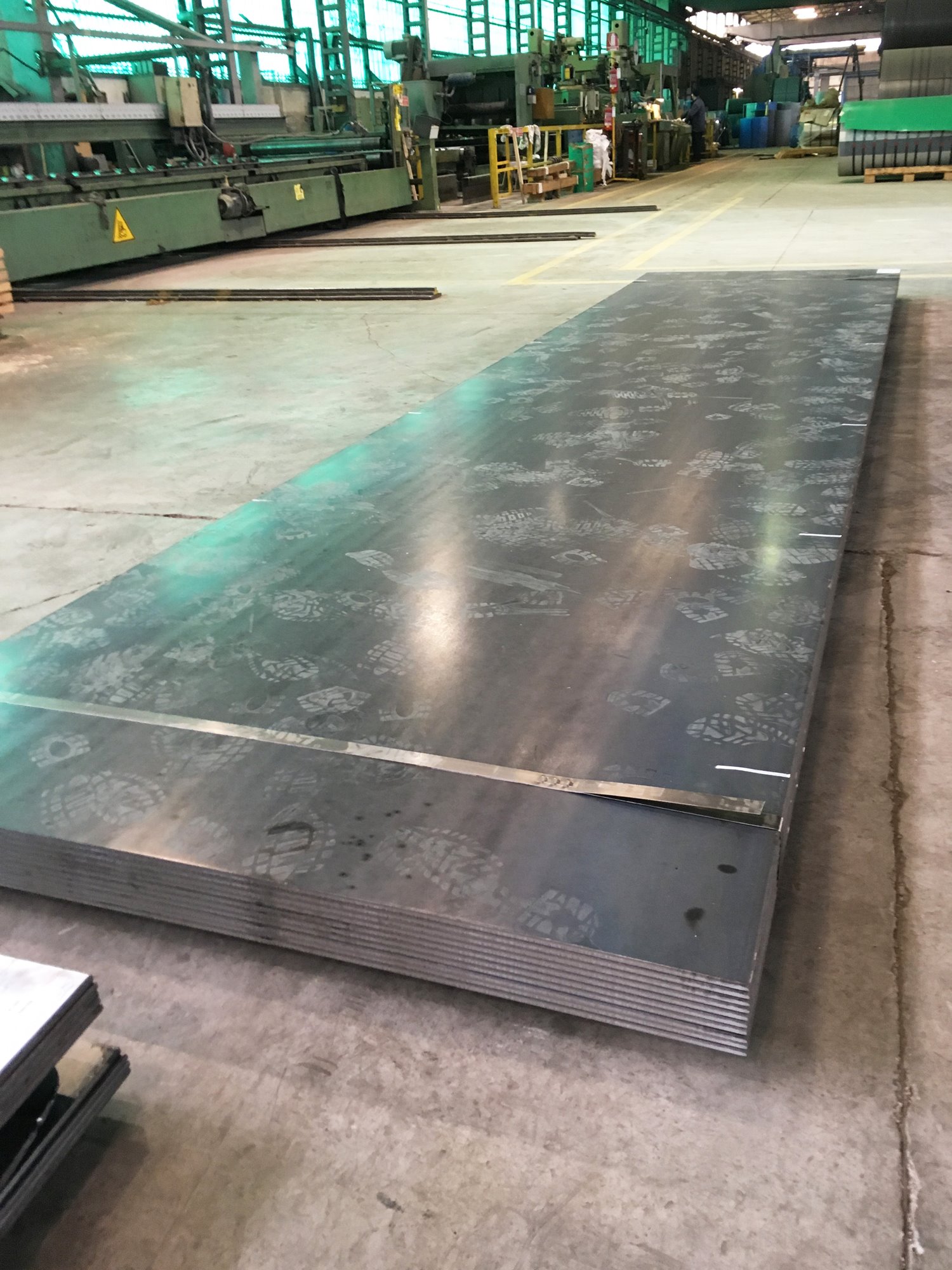

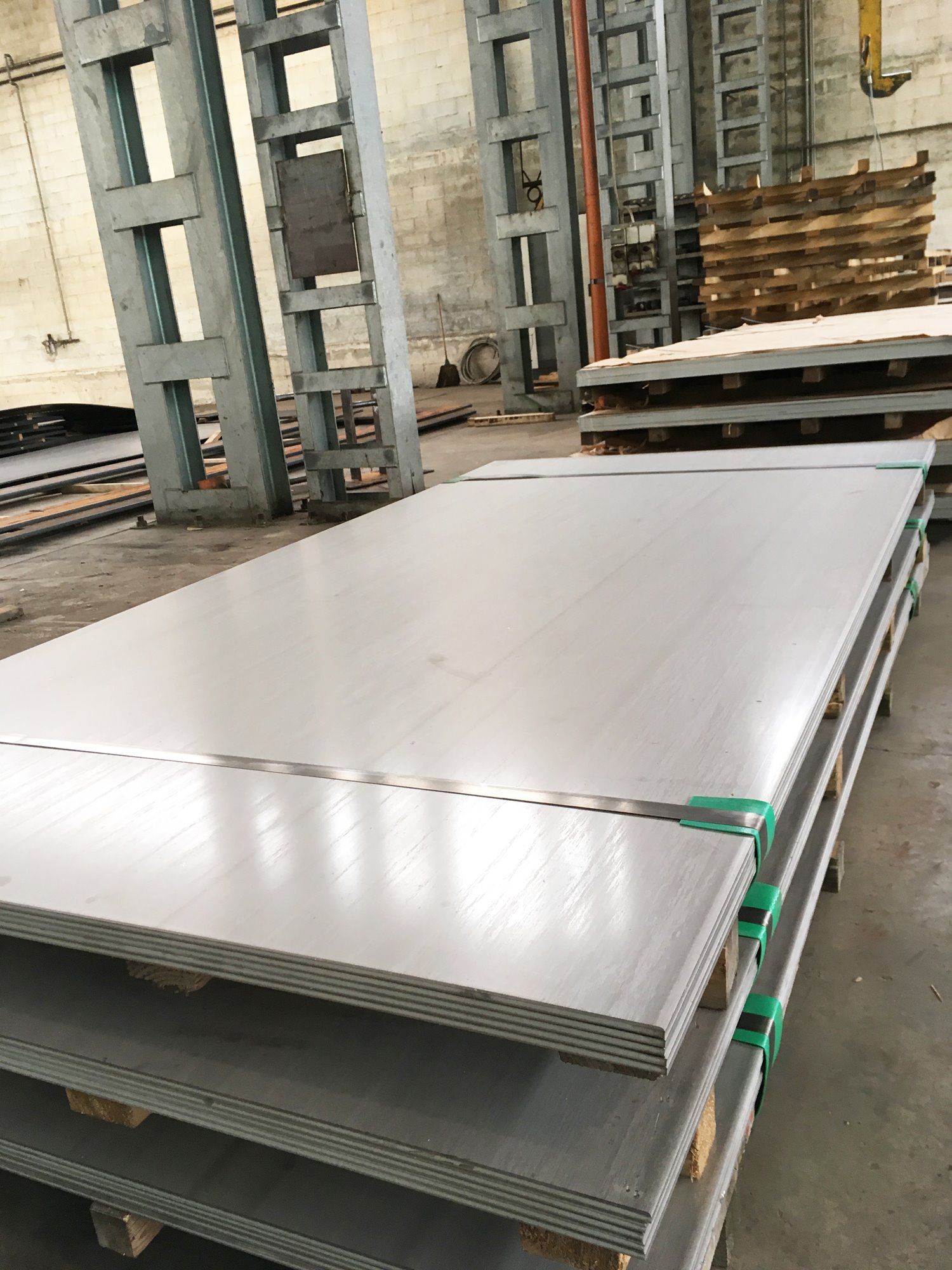

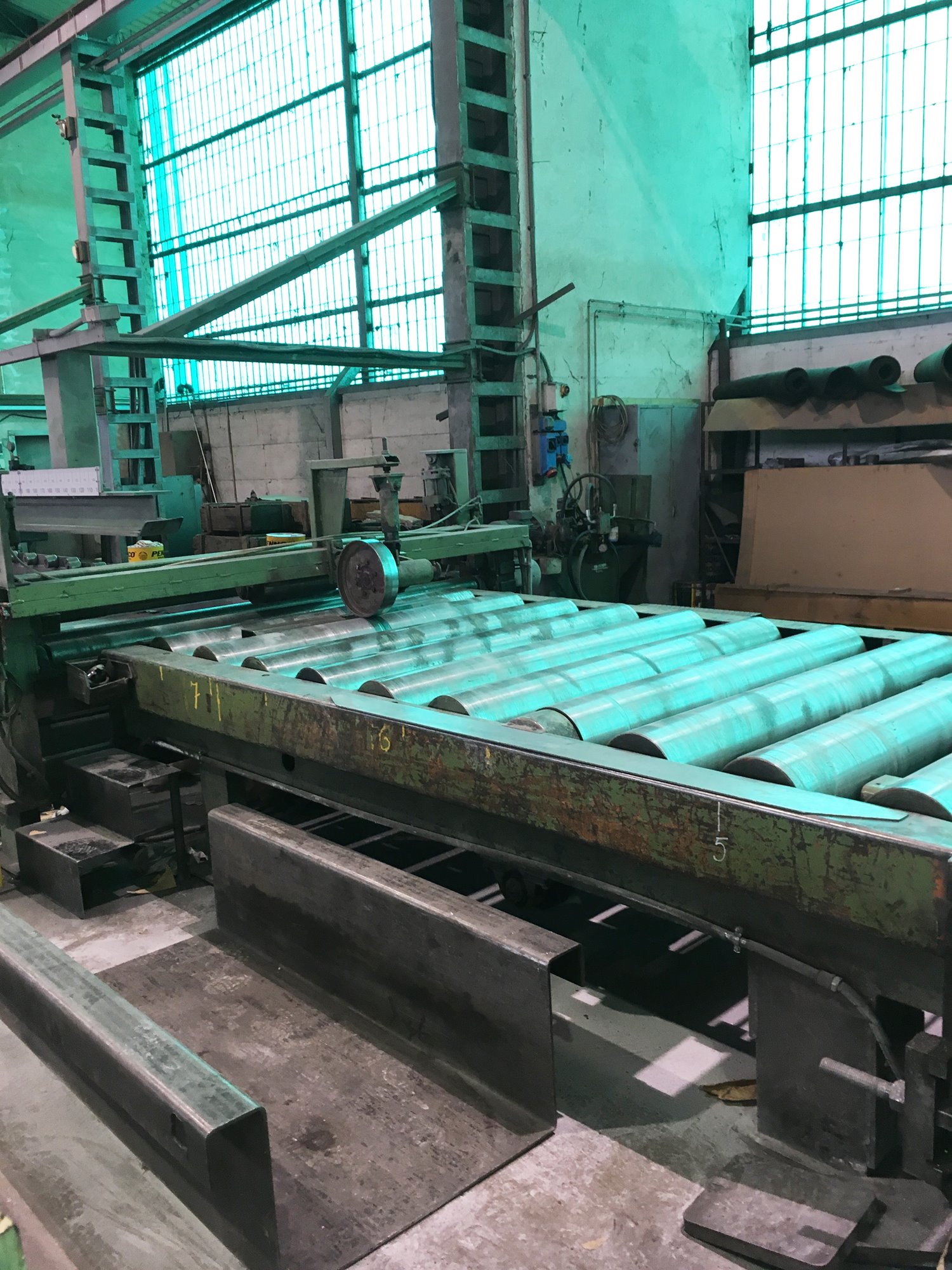

    Sheet Stacker with geared motor operated sheet equalizers and hydraulically adjustable frontal stopper

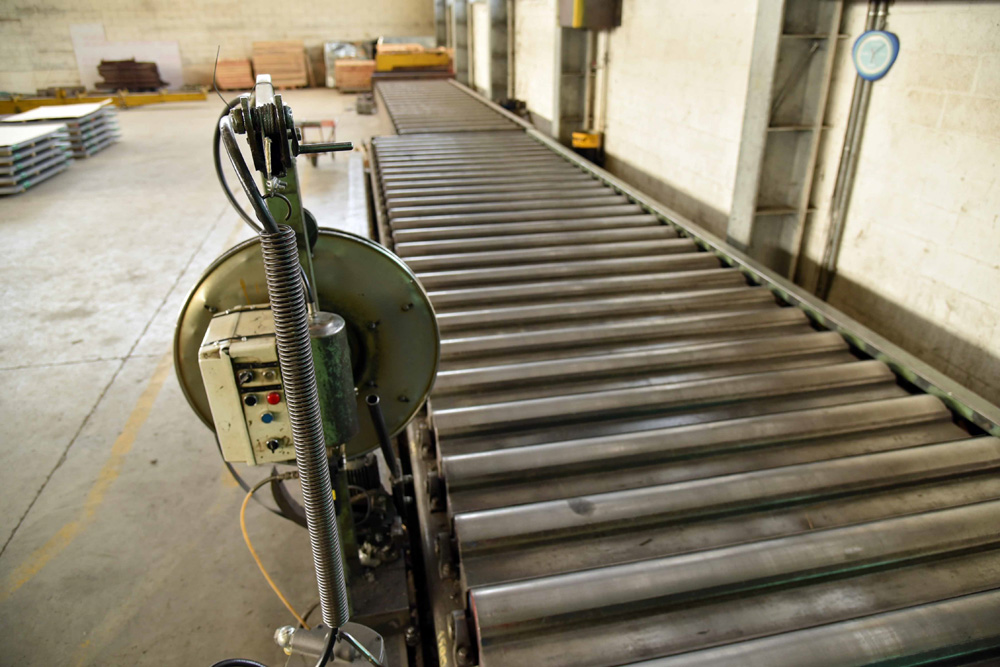

    Sheet Stack Transfer Conveyor

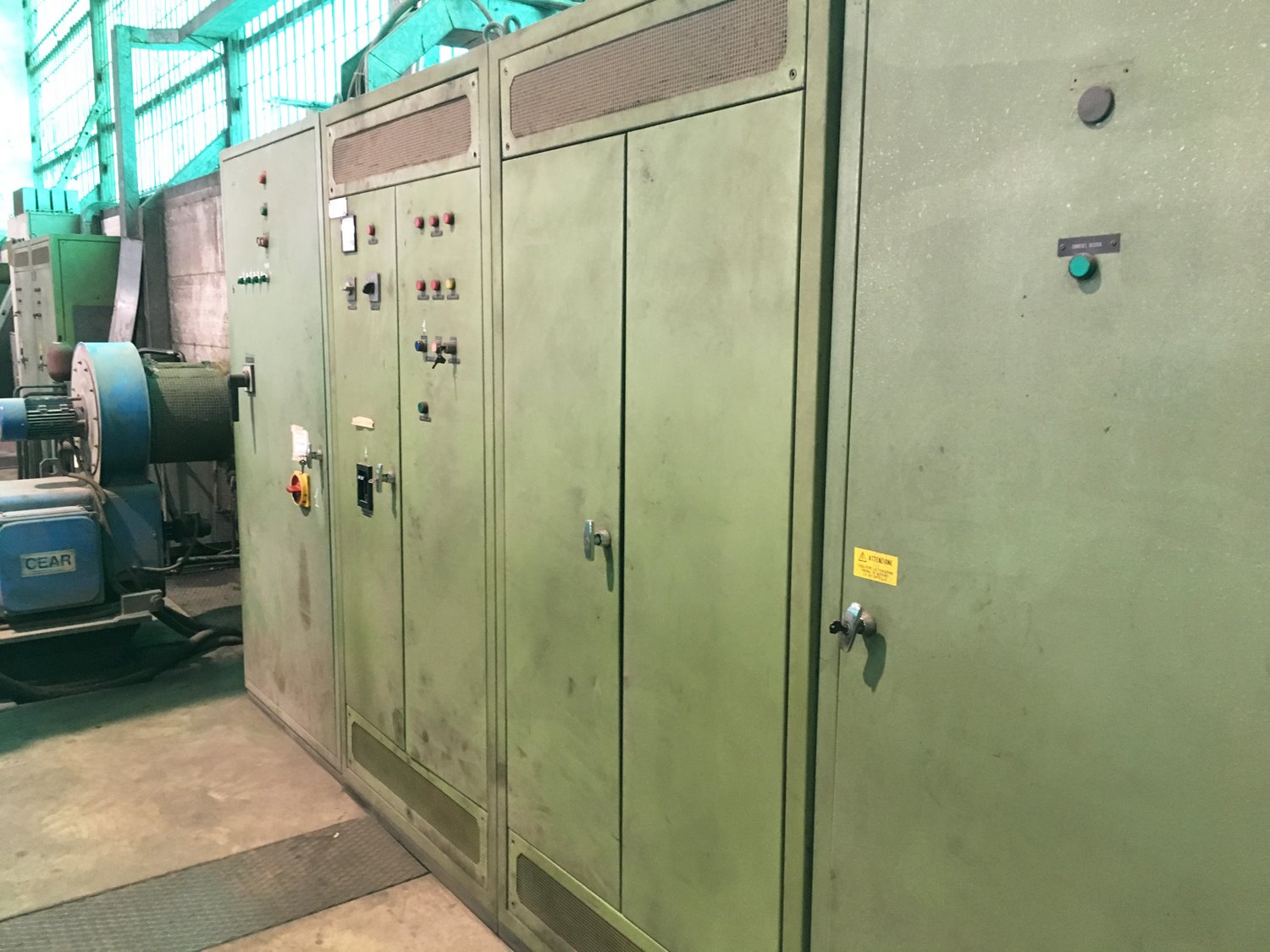

    Power, etc. of the AC Motors:


    • STRAIGHTENER
    124 kW /189 HP
    310 A
    440 V

    • LEVELER
    129 kW / 175 HP
    320 A
    440 V

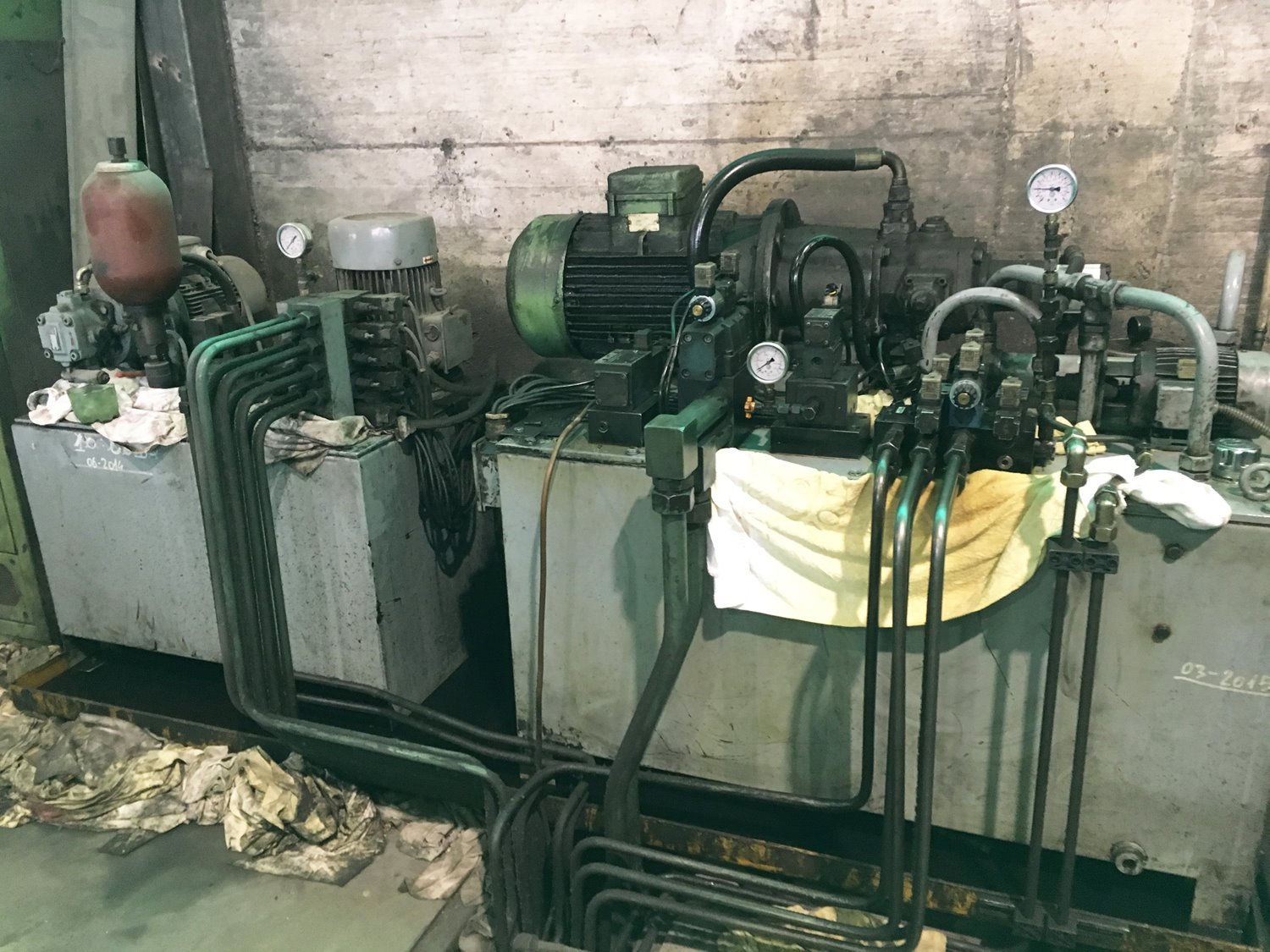

    • SHEAR (4 motors)
    Pump 11 kW 400V
    Pump 15 kW / inverter
    Pump 22 kW 400V
    Pump 20 kW / inverter












    We offer Start/Stop, Roll Feeder, Flying Shear, Rotary Shear Cut To Length Lines both new and used / re-manufactured for: Aluminium, Coated, Cold Rolled, Copper, Galvanized, Hot Rolled, Prepaint, Silicon, Stainless, Tinplate,Titanium .

    Your enquiries welcome for also individual Line Parts like: Decoilers, Feeders, Levellers, Sheet Stackers, Straighteners ...
