Newsletter 07.2017 [#004]
1
Newsletter
HEAVY DUTY, HEAVY GAUGE COIL PROCESSING EQUIPMENT BEING BUILT
07.2017
WE ARE IN THE PROCESS OF BUILDING SOME "JUMBO" LINES
YOU ARE WELCOME TO SEE THEM
WE CAN ALSO SHOW EQUIPMENT THAT WE HAVE BUILT, INSTALLED & UNDER POWER AT SOME OF OUR CUSTOMERS'* (* SUBJECT TO GETTING, CASE BY CASE THEIR PERMIT TO VISIT)
In particular, a 15mm Coil To Coil Slitting Line is also being built, whose general features are as follows:
Coil Width max. 2100mm
Decoiler Capacity max. 35 t
Entry Coil OD max. 2000mm
Entry Coil ID 610-760-850mm
Recoiler Capacity max. 35 t
Exit Coil OD max. 2000mm
Exit Coil ID. 610mm
Slitter Arbor Dia. 350mm
Circular Knife Dia. 550mm
Line Speed max. 100m / min
We build high quality cut to length lines and coil to coil slitting lines for material thicknesses upto 16mm and coil weights up to 40 t, for: aluminium, electric steels, high-resistance alloys, stainless, surface-critical materials generally, tinplate, titanium...
HEAVY DUTY HEAVY GAUGE CUT TO LENGTH LINES

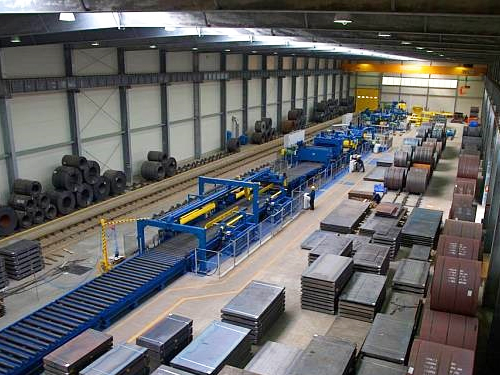

2100mm x 16mm CUT TO LENGTH LINE

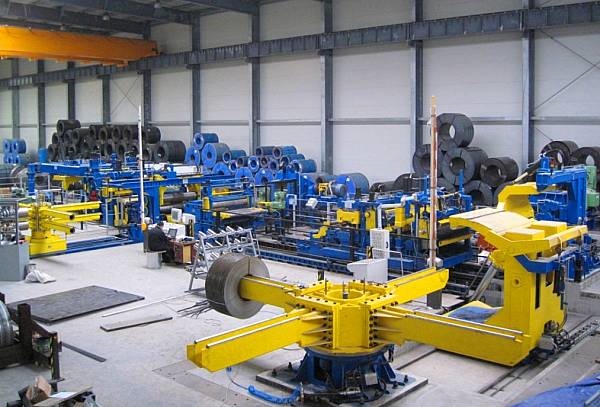

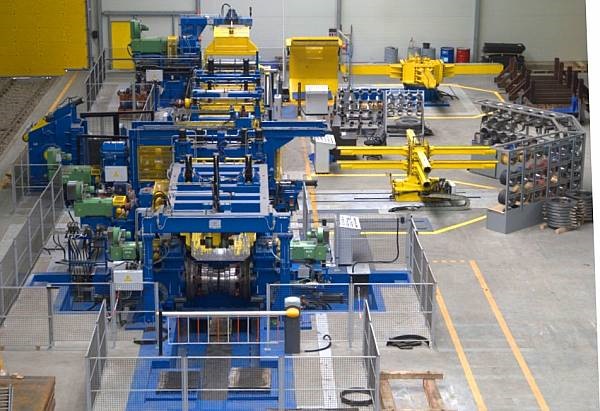

HEAVY DUTY HEAVY GAUGE SLITTING LINES
PHOTOS & IMAGES
(CLICK TO ENLARGE)
2
3
4
5
6
