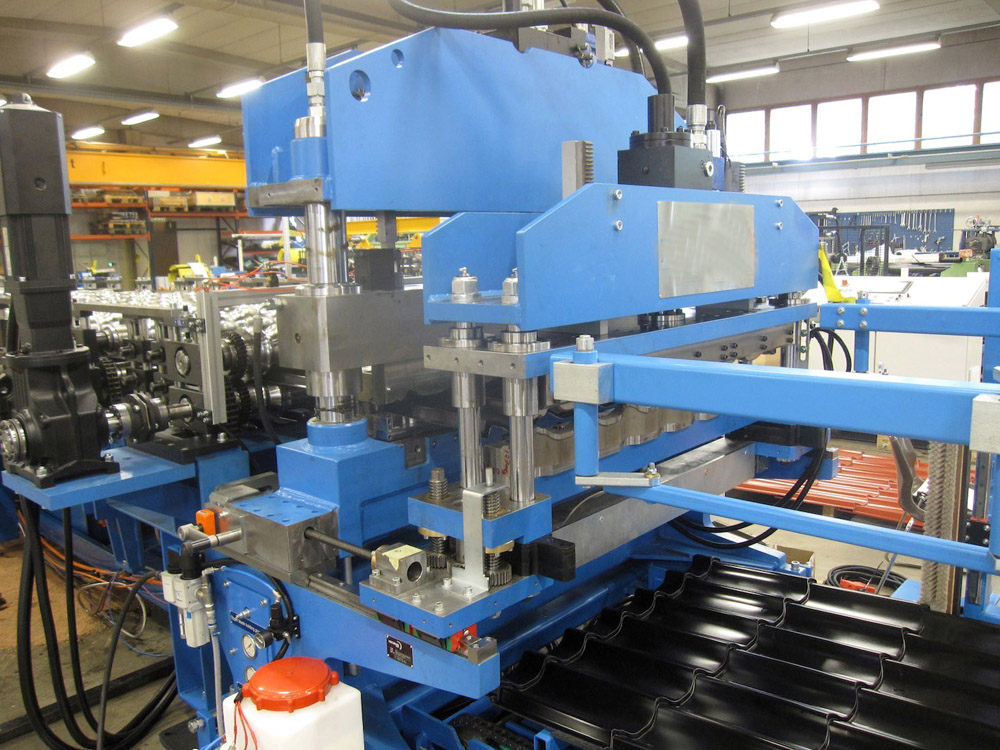

New Tile-Effect Sheet Lines
STANDARD RANGE - Stop/Start Type
FLOREANI & PARTNERS
BUILD TO ORDER CUSTOM DESIGNED
Roof Tile Production Lines
For aluminium, prepainted steel, etc.; in coils up to 1250mm wide
The speed is around 9m / min
Standard paints:
RAL 5015 Blue
RAL 9005 Black the machine covers
(Custom paints available on demand)
EQUIPMENT & TOOLING DESCRIPTIONS

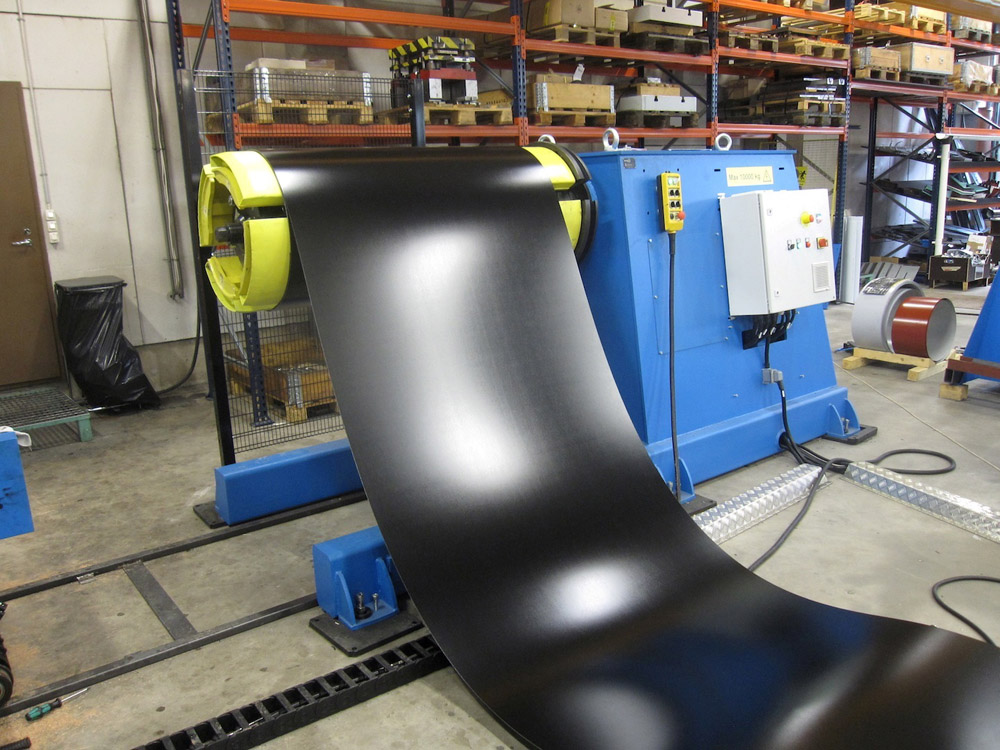

Decoiler -- Models:
for 6 / 8 / 10 & 15 t coil weight
powered
hydraulic expansion of mandrel
ultrasonic sensor for loop control
Coil Car -- Models:
for 6 / 8 / 10 & 15 t coil weight
hydraulic lifting

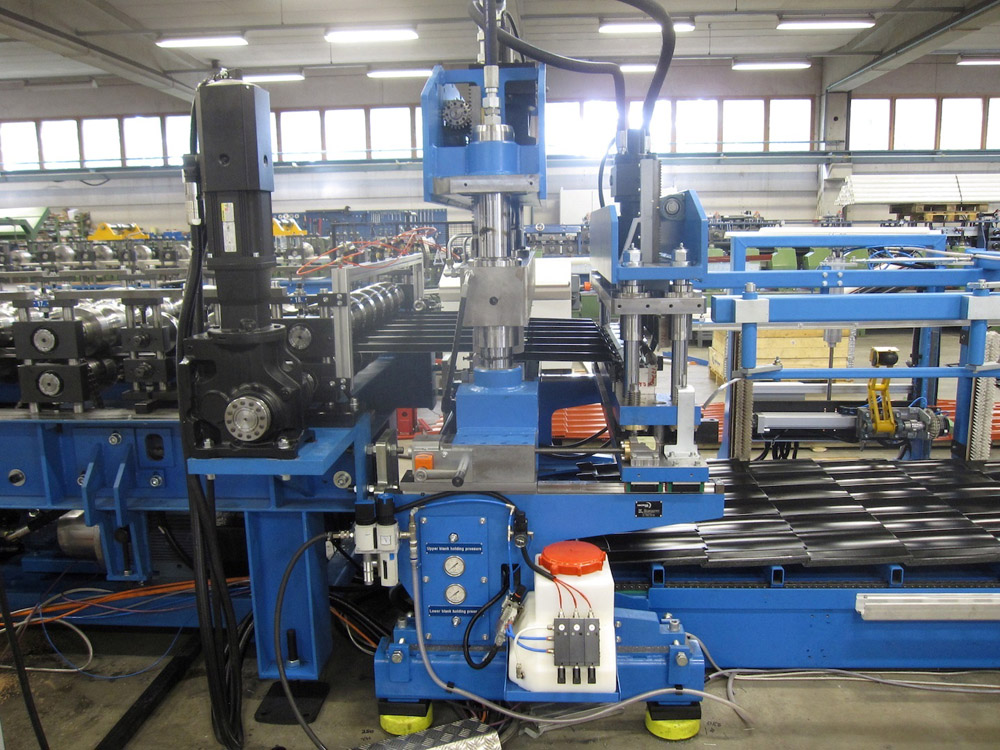

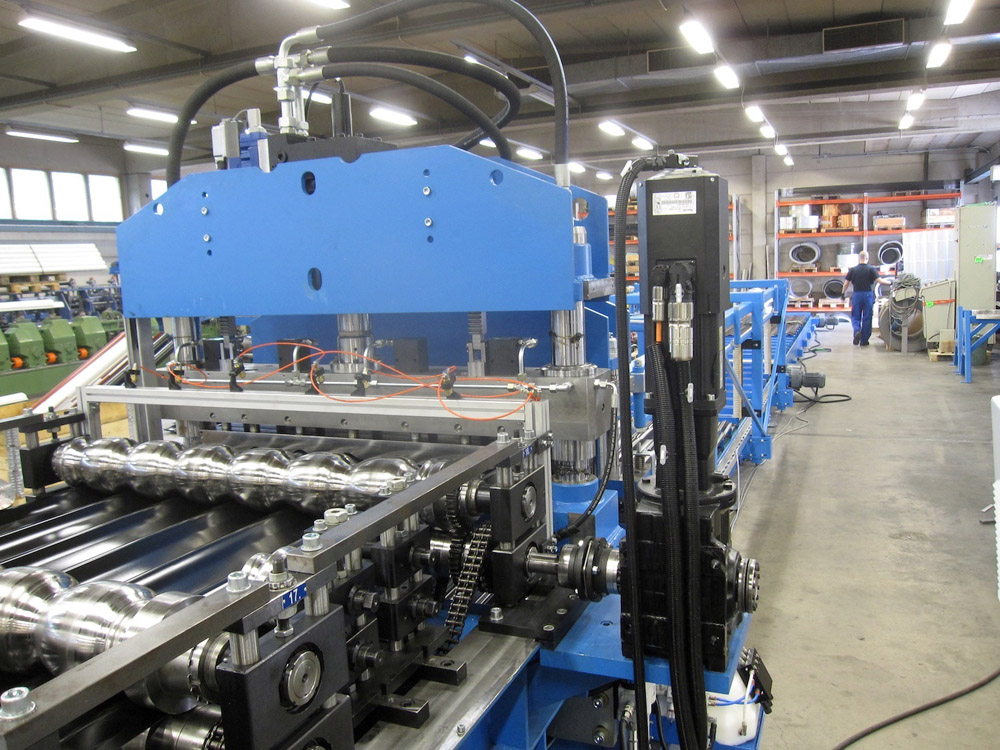

Roll Former
width adjustable material entry guide
number of Stations: 18-24, depending on profile geometry
Roll Tooling in heat-treated toolsteel

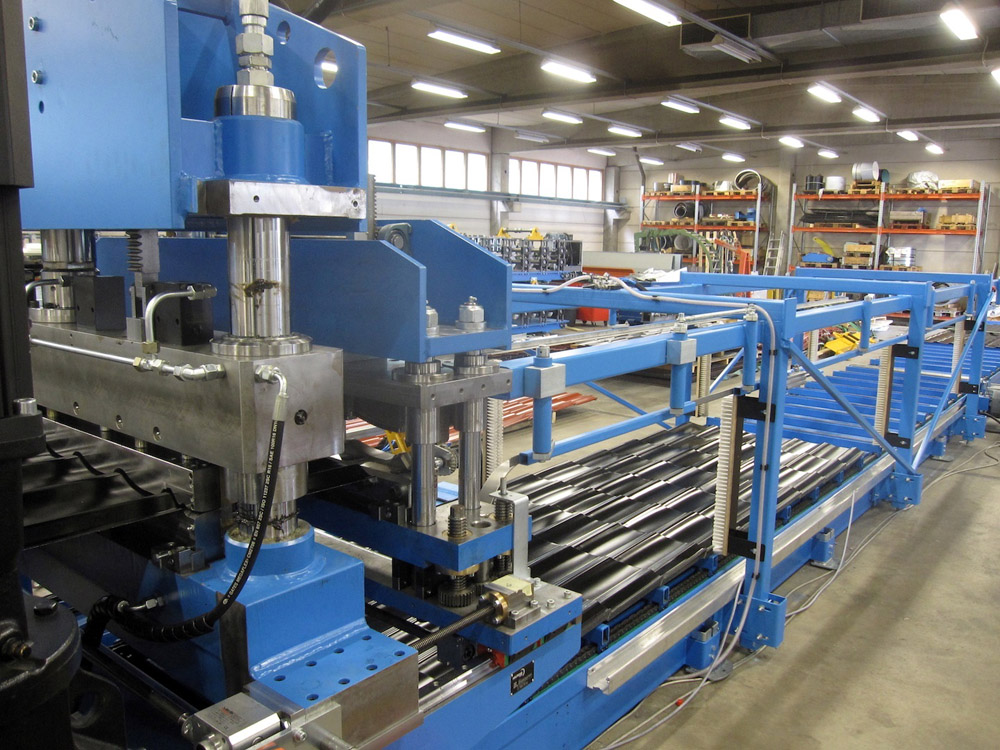

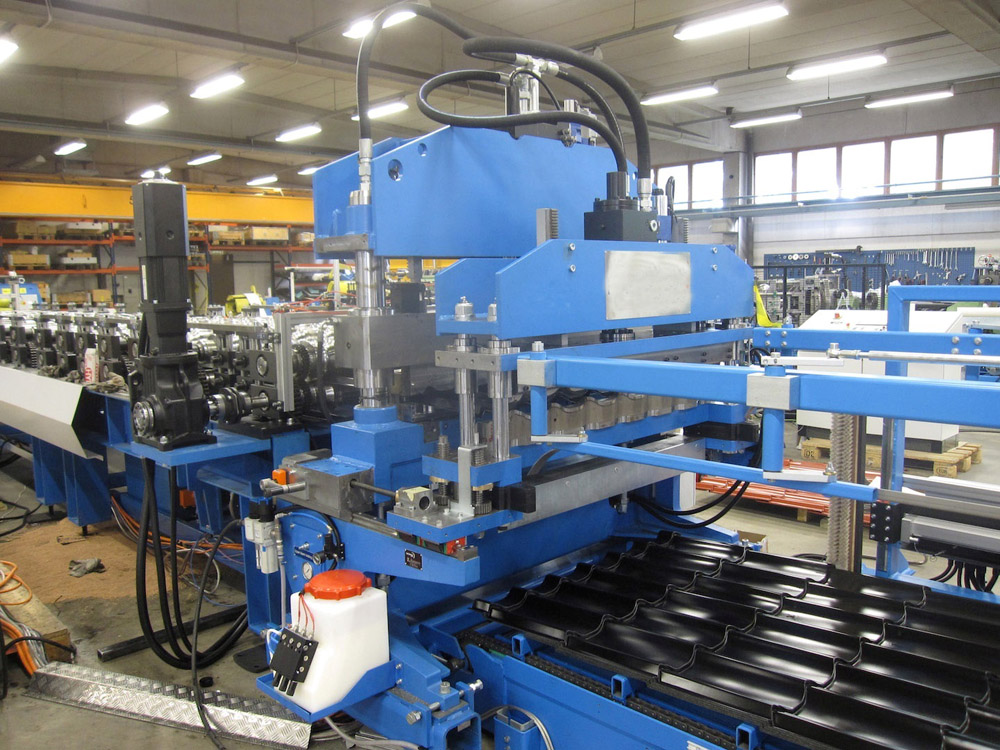

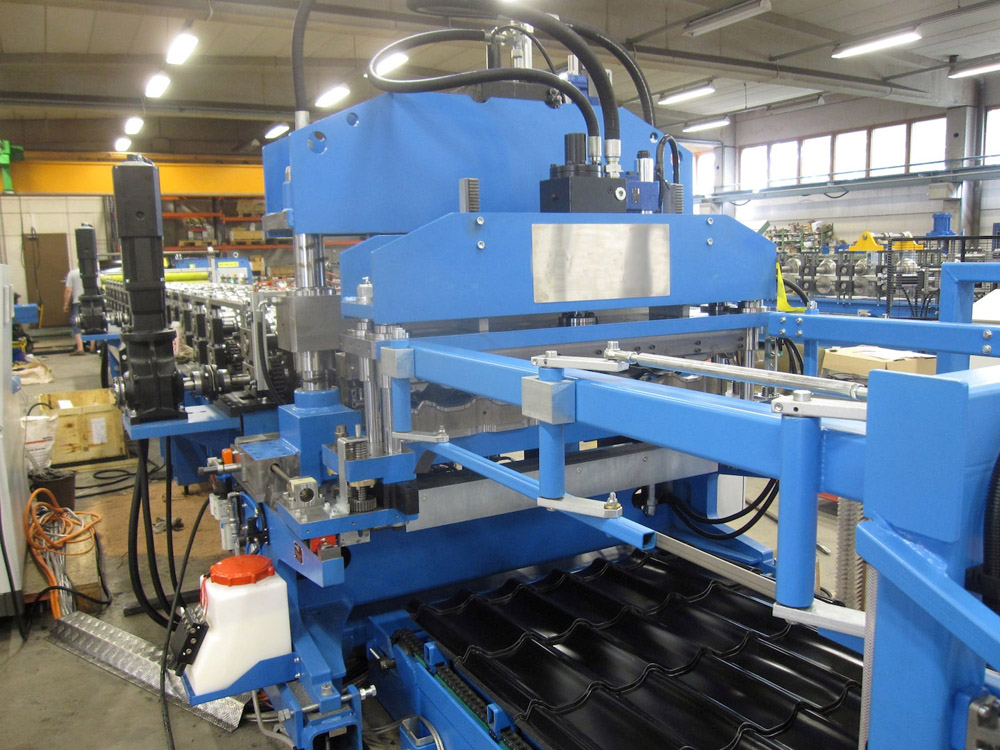

Static Press-&-Shear
hydraulic with 15 kW power unit
Shaped Cutoff Blades
Automatic Stacking Table
- length: 6 / 8 m options
Run-Out Conveyor
- length: 6 / 8 m ^
Electrics (Siemens components)
Hydraulics
Safety Guarding
Technical Literature to CE

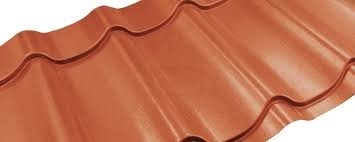

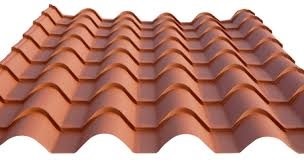

Tile-Effect Metal Cladding
... a light weight, much 'technical' alternative to traditional roof tiles; specially suitable for low-pitch roofs.
It ensures a durable, easy-care roofing solution: easy installation, long-term warranty, choice of many colours and material types... are some advantages tile-effect metal cladding offers.
Our experience as equipment builders encompasses tile-effect sheet lines for products of any design and, we also often deal/refurbish/service used lines of well-known European Brands such as: AJV, PROFIILIKESKUS, ROLLSETT/ROLLSTEEL, SAMESOR, SINTECH/FORMIA, STAM... etc.
Custom-built equipment needs a special kind of product support... our proposals are detailed with drawings and photos to provide clients with a full understanding of the type and quality of the equipment we offer. We send customers approval drawings with dimensions, performance specs and features before the machine is built.
We are experienced at making our products safe, reliable and in conformance with the safety and design standards. Products are designed for maximum serviceability and reliability.
Parts Books are shipped with each piece of equipment. They contain detailed information about installation, inspection and maintenance procedures, component parts.
